SKU: TORQHEX-A-10

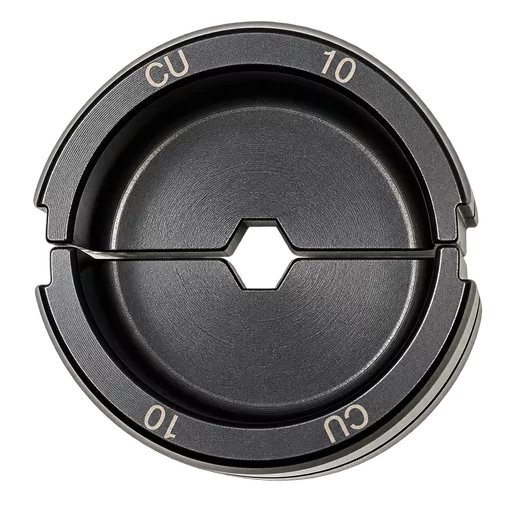

TorqTek Hexagon 'A' Crimp Die - 10mm2

SKU: TORQHEX-A-10

TorqTek Hexagon 'A' Crimp Die - 10mm2

TorqTek TORQHEX-A Slide-In Hexagon Crimp Dies are high precision, circular crimping dies designed for professional electrical cable termination applications across cable conductor sizes from 10.0mm² up to 630.0mm². Engineered to form accurate, repeatable hexagonal crimps on heavy duty cable lugs and connectors, the die profile dictates the precise geometry of the finished crimp for optimal mechanical strength and electrical conductivity.

Supplied as precision matched upper and lower pairs, each die set features clear, permanent size markings stamped directly onto both halves to eliminate setup errors on site. The slide-in circular profile allows fast, secure drop in installation directly into compatible TorqTek hand hydraulic and cordless battery powered crimping heads.



Key Features

  • Comprehensive Size Range covers 15 individual conductor sizes ranging from 10mm² to 630mm² for versatile low-voltage and high-voltage jointing
  • Slide-In Circular Profile offres quick drop-in mounting into the tool head ensures fast die changes and reduced downtime.
  • Precision Hexagonal Crimp Profile engineered so the die forms the exact crimp geometry
  • Matched & Size-Stamped Pairs are supplied as factory matched pairs stamped with the conductor size on both halves to prevent mismatched sets
  • Wide Tool Compatibility with specific to Series A tools, seamlessly fitting hand hydraulic and battery-operated crimpers.





Technical Details

Applications: TorqTek Hexagon Crimp Dies – Series A
Crimp Profile: Hexagonal
Available Individual Die Sizes (15 Sizes): 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400, 500 and 630mm2
Tool Compatibility (Series A Specific): RTCHH400 (Hydraulic Head), BST300 / -02 (Battery Hydraulic), BCT400 / -02 / -03 (Battery Hydraulic), HCH630 (Hand Hydraulic)

Quick Links

Out of Stock - Back Order

0

£26.14 Excl VAT
Unit Price: £26.1400 £31.37 Inc VAT
Unit Price: £31.3680

Out of stock.

Minimum Order Qty 1
Increments 1

Product Wishlist & Compare Placeholder

Delivery available from £8.50

Available to select at checkout.



Quick Links




TorqTek TORQHEX-A Slide-In Hexagon Crimp Dies are high precision, circular crimping dies designed for professional electrical cable termination applications across cable conductor sizes from 10.0mm² up to 630.0mm². Engineered to form accurate, repeatable hexagonal crimps on heavy duty cable lugs and connectors, the die profile dictates the precise geometry of the finished crimp for optimal mechanical strength and electrical conductivity.

Supplied as precision matched upper and lower pairs, each die set features clear, permanent size markings stamped directly onto both halves to eliminate setup errors on site. The slide-in circular profile allows fast, secure drop in installation directly into compatible TorqTek hand hydraulic and cordless battery powered crimping heads.



Key Features

  • Comprehensive Size Range covers 15 individual conductor sizes ranging from 10mm² to 630mm² for versatile low-voltage and high-voltage jointing
  • Slide-In Circular Profile offres quick drop-in mounting into the tool head ensures fast die changes and reduced downtime.
  • Precision Hexagonal Crimp Profile engineered so the die forms the exact crimp geometry
  • Matched & Size-Stamped Pairs are supplied as factory matched pairs stamped with the conductor size on both halves to prevent mismatched sets
  • Wide Tool Compatibility with specific to Series A tools, seamlessly fitting hand hydraulic and battery-operated crimpers.





Technical Details

Applications: TorqTek Hexagon Crimp Dies – Series A
Crimp Profile: Hexagonal
Available Individual Die Sizes (15 Sizes): 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400, 500 and 630mm2
Tool Compatibility (Series A Specific): RTCHH400 (Hydraulic Head), BST300 / -02 (Battery Hydraulic), BCT400 / -02 / -03 (Battery Hydraulic), HCH630 (Hand Hydraulic)
