SKU: HCH630-HFP

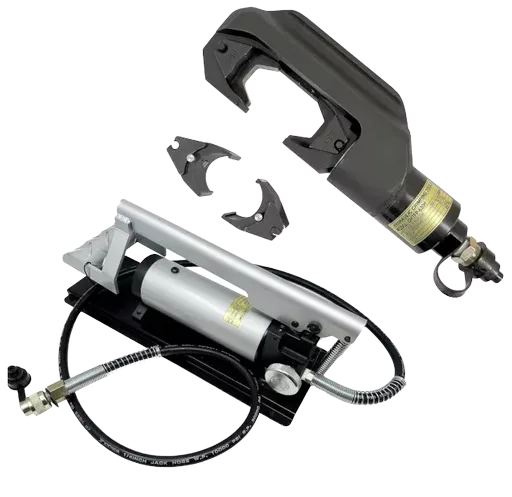

HCH630-HFP - Hydraulic Hex Crimping Head & Foot Pump 35-630mm²

SKU: HCH630-HFP

HCH630-HFP - Hydraulic Hex Crimping Head & Foot Pump 35-630mm²


The TorqTek Hydraulic Hexagon Crimping Head with Foot Pump delivers precise and powerful crimping for cable sizes from 35.0 to 630.0mm². Designed for professional electrical installations, this high-pressure tool ensures consistent results with minimal effort. The robust build guarantees long-lasting performance, even in demanding site conditions. Ideal for heavy-duty applications, this crimping system offers ease of use, portability and reliability. Compatible with a wide range of cable lugs and terminals for versatile on-site operation.



Key Features

  • Crimping range from 35.0mm² to 630.0mm²
  • Includes hydraulic foot pump for hands-free operation
  • Durable construction for rugged on-site use
  • Hexagonal crimping head ensures secure connections
  • Compatible with a wide variety of lugs and terminals
  • Lightweight and portable for easy transport and setup



Technical Details

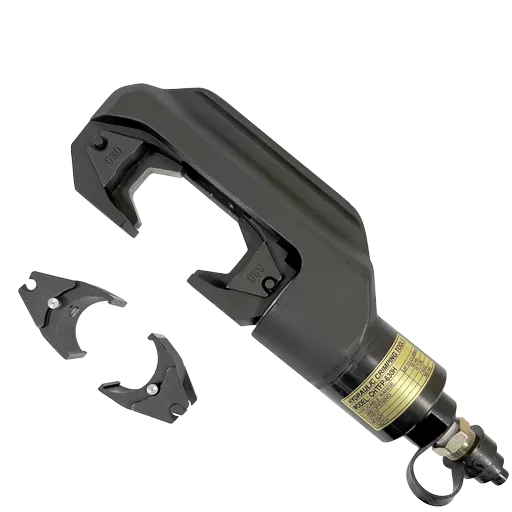

HCH630 Head
Crimp Range: 35.0 to 630mm2
Length: 215x50x175mm
Weight: 1.36kgs

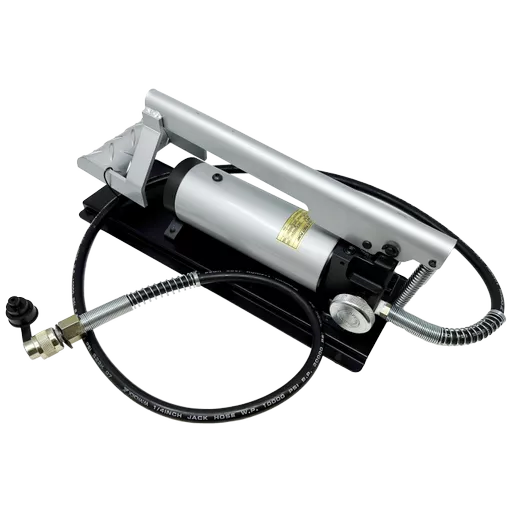

HFP Foot Pump
Max Output Pressure: 1st Stage 20kg2 / 2nd Stage 700kg2
Oil Output: 13ml Low Presure / 28.ml High Pressure
Oil Capacity: 700cc
Weight: 12.5kgs

Quick Links

Black
350.0
35.0 - 630.0

Out of Stock - Back Order

0

£2015.54 Excl VAT
Unit Price: £2015.5400 £2418.65 Inc VAT
Unit Price: £2418.6480

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty
Minimum Order Qty 1
Increments 1

Product Wishlist & Compare Placeholder

Delivery available from £8.50

Available to select at checkout.



Quick Links





The TorqTek Hydraulic Hexagon Crimping Head with Foot Pump delivers precise and powerful crimping for cable sizes from 35.0 to 630.0mm². Designed for professional electrical installations, this high-pressure tool ensures consistent results with minimal effort. The robust build guarantees long-lasting performance, even in demanding site conditions. Ideal for heavy-duty applications, this crimping system offers ease of use, portability and reliability. Compatible with a wide range of cable lugs and terminals for versatile on-site operation.



Key Features

  • Crimping range from 35.0mm² to 630.0mm²
  • Includes hydraulic foot pump for hands-free operation
  • Durable construction for rugged on-site use
  • Hexagonal crimping head ensures secure connections
  • Compatible with a wide variety of lugs and terminals
  • Lightweight and portable for easy transport and setup



Technical Details



HCH630 Head
Crimp Range: 35.0 to 630mm2
Length: 215x50x175mm
Weight: 1.36kgs

HFP Foot Pump
Max Output Pressure: 1st Stage 20kg2 / 2nd Stage 700kg2
Oil Output: 13ml Low Presure / 28.ml High Pressure
Oil Capacity: 700cc
Weight: 12.5kgs

Information

Colour: Black

Tool Length: 350.0

Crimping Capacity (mm²): 35.0 - 630.0
