SKU: BST300-02

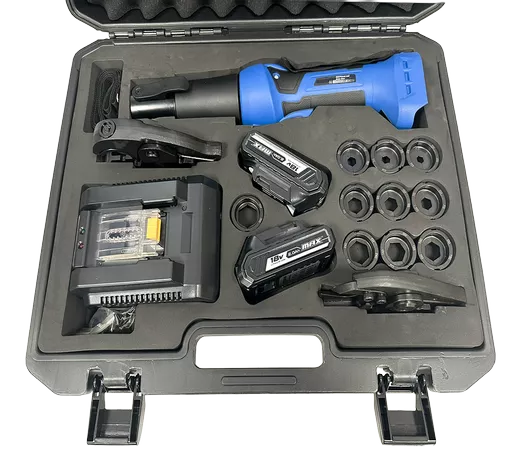

BST300-02 TorqTek 2 in 1 Multi-Function Tool

SKU: BST300-02

BST300-02 TorqTek 2 in 1 Multi-Function Tool

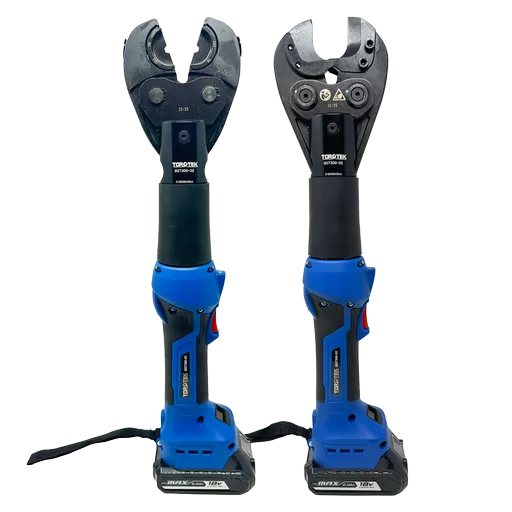

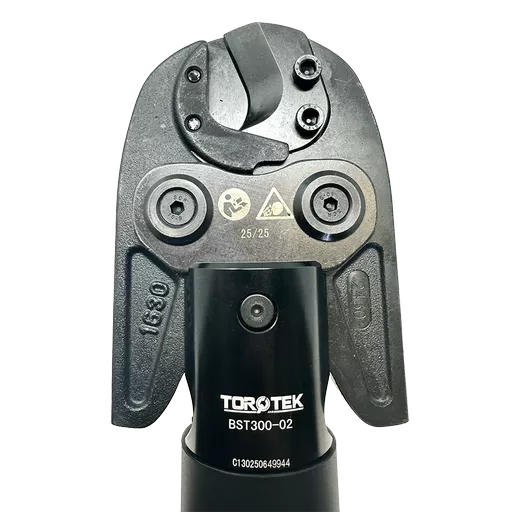

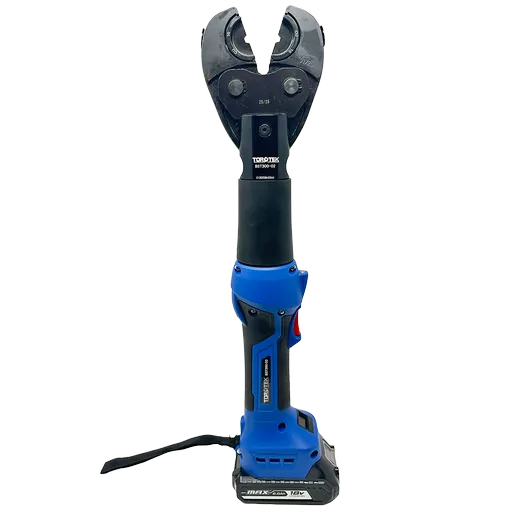

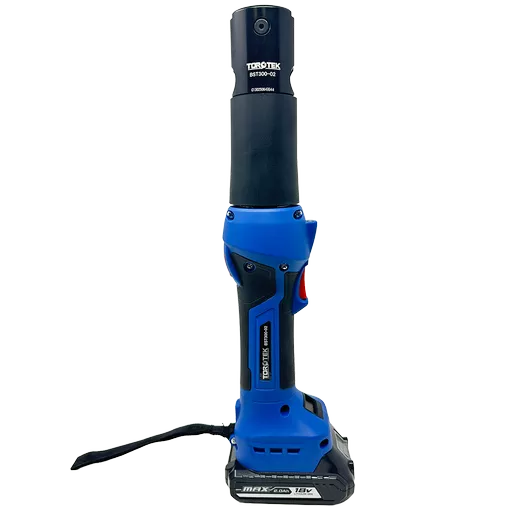

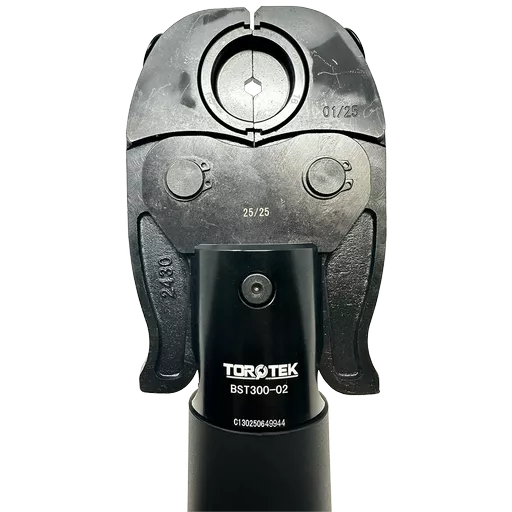

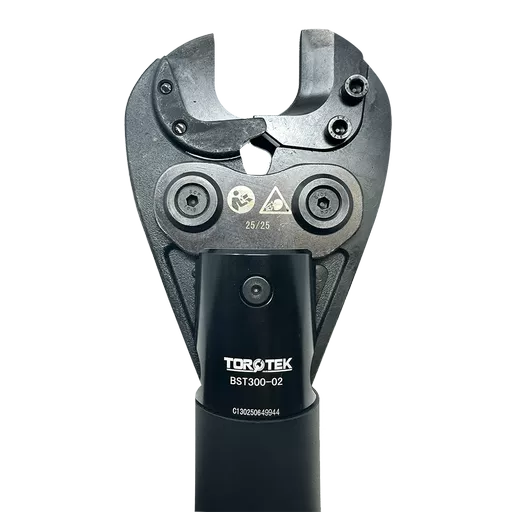

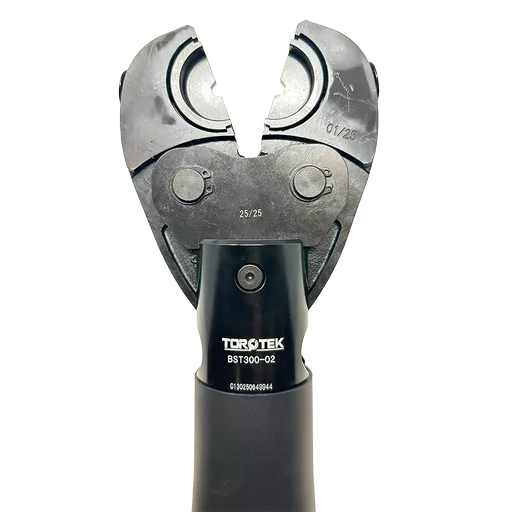

Introducing the TorqTek BST300-02, a multi-functional powerhouse featuring an innovative two-in-one quick interlock head system. This advanced design allows for seamless switching between a 10.0–300.0mm² crimping head and a Cu/Al Ø30mm cable cutting head. Transitioning between tasks is effortless: simply remove the locking pin to interchange heads in seconds, eliminating the need for multiple tools on site. Built with a slim, ergonomic in-line grip, the BST300-02 is specifically engineered for maximum maneuverability in overhead work and confined spaces.

The tool delivers a formidable 60kN force through a two-stage hydraulic system, ensuring rapid cycle times and professional precision. An integrated OLED Display provides real-time diagnostics, while the dual-color LED indicator and built-in worklight offer instant feedback and visibility. With its updated architecture and versatile dual-head capability, the BST300-02 provides a compact, all-in-one solution that maximizes job site efficiency and tool longevity.




Key Features

  • BST Serise With Update Architecture
  • Crimps cable sizes from 10.0mm² to 300.0mm²
  • Cuts cables Cu/Al Ø30mm
  • 18V lithium-ion battery for portable power
  • BST Serise With Update Architecture
  • Compact and Light Weight In-Line Design
  • Complete versatility with Crimping and Cutting in one compact unit



Technical Details

Crimp Range: 10.0 to 300mm2
Cutting Capacity:  Cu/Al Ø30mm
Crimping Pressure: 60KN
Stroke: 17mm
Oil Capacity: 60ml
Crimp Type: Hexagon Crimp
Length: 420mm
Weight: 3.5kgs Including Battery
Battery Capacity: 18V / 2.0Ah
Charging Time: 40 mins
Charging Voltage: AC 100V-240V; 50-60Hz
Cycle Time: 2.5-4s (depends on die size)

Quick Links

Cu/Al Ø30mm
Blue
428.0 x 134.0 x 75.0
10.0 - 300.0

In stock

13

£992.46 Excl VAT
Unit Price: £992.4600 £1190.95 Inc VAT
Unit Price: £1190.9520

Qty
Minimum Order Qty 1
Increments 1

Product Wishlist & Compare Placeholder

Delivery available from £8.50

Available to select at checkout.



Quick Links





Introducing the TorqTek BST300-02, a multi-functional powerhouse featuring an innovative two-in-one quick interlock head system. This advanced design allows for seamless switching between a 10.0–300.0mm² crimping head and a Cu/Al Ø30mm cable cutting head. Transitioning between tasks is effortless: simply remove the locking pin to interchange heads in seconds, eliminating the need for multiple tools on site. Built with a slim, ergonomic in-line grip, the BST300-02 is specifically engineered for maximum maneuverability in overhead work and confined spaces.

The tool delivers a formidable 60kN force through a two-stage hydraulic system, ensuring rapid cycle times and professional precision. An integrated OLED Display provides real-time diagnostics, while the dual-color LED indicator and built-in worklight offer instant feedback and visibility. With its updated architecture and versatile dual-head capability, the BST300-02 provides a compact, all-in-one solution that maximizes job site efficiency and tool longevity.




Key Features

  • BST Serise With Update Architecture
  • Crimps cable sizes from 10.0mm² to 300.0mm²
  • Cuts cables Cu/Al Ø30mm
  • 18V lithium-ion battery for portable power
  • BST Serise With Update Architecture
  • Compact and Light Weight In-Line Design
  • Complete versatility with Crimping and Cutting in one compact unit



Technical Details

Crimp Range: 10.0 to 300mm2
Cutting Capacity:  Cu/Al Ø30mm
Crimping Pressure: 60KN
Stroke: 17mm
Oil Capacity: 60ml
Crimp Type: Hexagon Crimp
Length: 420mm
Weight: 3.5kgs Including Battery
Battery Capacity: 18V / 2.0Ah
Charging Time: 40 mins
Charging Voltage: AC 100V-240V; 50-60Hz
Cycle Time: 2.5-4s (depends on die size)

Information

Cutting Capacity: Cu/Al Ø30mm

Colour: Blue

Tool Length: 428.0 x 134.0 x 75.0

Crimping Capacity (mm²): 10.0 - 300.0

Battery Powered Crimping Tools

Quick link to hydraulic tools in this section;

Explore our range of high-performance 18V hydraulic tools designed for heavy-duty electrical installations. We stock versatile 300.0mm² and 400.0mm² handheld units for crimping and cutting, alongside remote hydraulic pump systems with interchangeable heads for maximum reach. Every tool is built for consistent, professional-grade pressure on copper and aluminium cable terminations.

Questions & Answers

If you are doing hundreds of cuts a day, a dedicated cutting tool is faster and the blades last longer because they are optimized for that one job. However, for most site techs, a combi-tool that takes interchangeable heads is much more cost-effective. It saves space in the van and gives you the ability to punch holes or crimp large lugs without buying three separate expensive power units.

No, you can't. While some dies might look similar, aluminium requires a different compression profile and usually a larger die size for the same cross-sectional area of conductor. Using a copper die on an aluminium lug can lead to under-compression, which causes the joint to overheat and eventually fail under load. Always check the stamp on the lug and match it to the die.

Modern battery tools have a manual retract button. If the battery dies mid way or the tool jams, don't try to pry the head open. Use the manual retract button to bleed the pressure safely. You'll need to redo that crimp though, because a partial compression won't have the mechanical or electrical integrity required for a safe connection.
