SKU: BCT400

BCT400 - Battery Powered Hexagon Crimp Tool 10-400mm²

SKU: BCT400

BCT400 - Battery Powered Hexagon Crimp Tool 10-400mm²

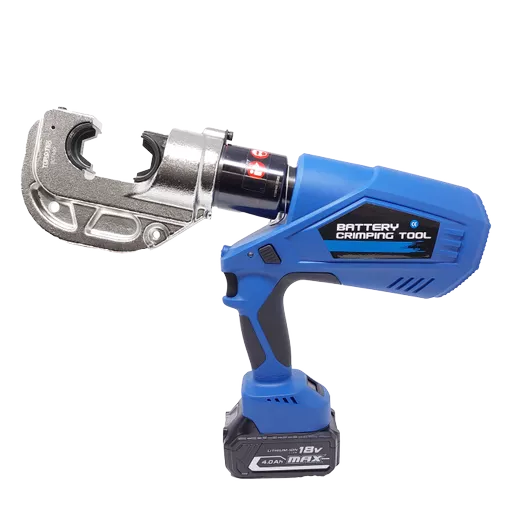

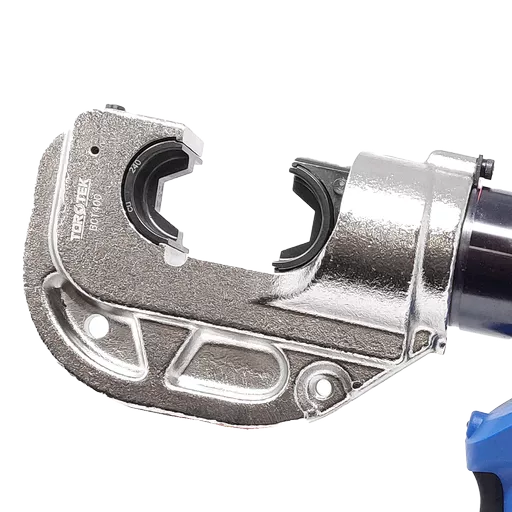

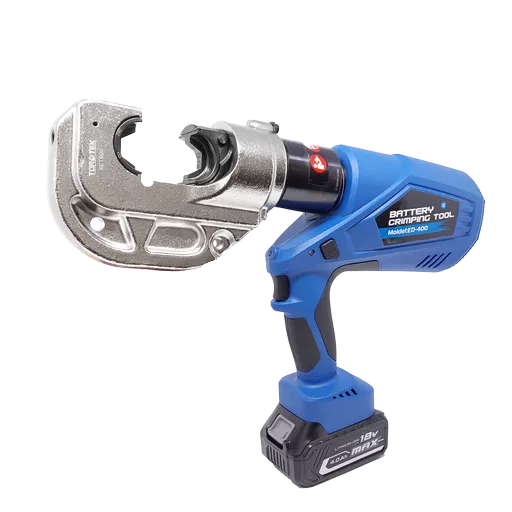

Introducing the cutting-edge TorqTek BCT400 battery-operated crimping tool, meticulously engineered for precision lug compression spanning 10.0 to - 400.0mm2. Featuring an advanced two-stage hydraulic system with fast feed and power control, it delivers an impressive 120kN crimping force. With a 350° head rotation, the BCT400 is a versatile tool, accommodating a broad crimping range for diverse applications.

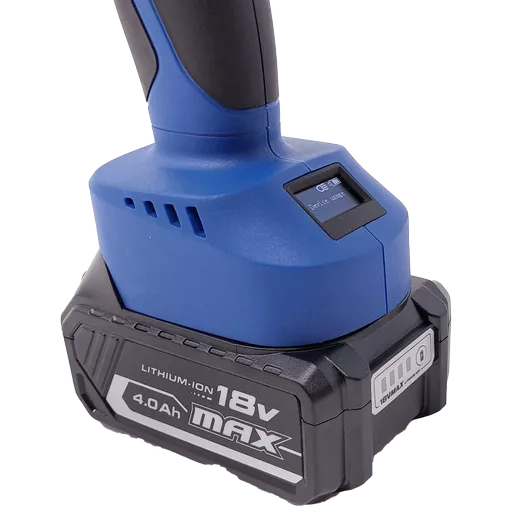

The OLED Display provides essential real-time information, showcasing battery percentage, crimping times, fault codes, and maintenance notes. Powered by the new Li-Ion 18V 4Ah batteries, this tool ensures higher capacity, while the crimp cycle operates at a swift 2.5-4 seconds, optimizing efficiency in your crimping processes. Elevate your crimping operations with the unmatched capabilities of the TorqTek BCT400




Key Features

  • Crimps cable sizes from 10.0 to 400.0mm²
  • Powerful 18V lithium-ion battery included
  • OLED Display

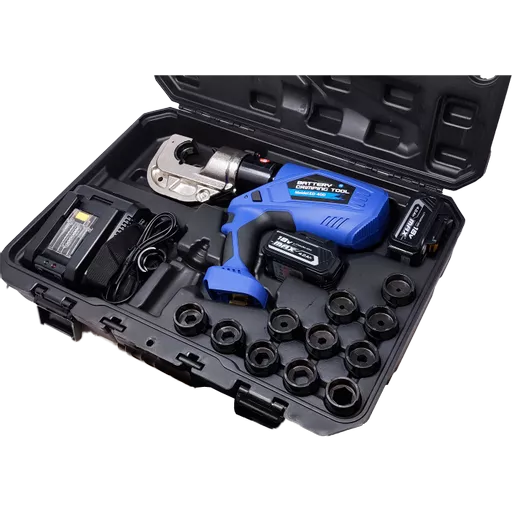

  • Supplied with a full die set and carry case
  • Ideal for industrial, utility and onsite applications



Technical Details

Crimp Range: 10.0 to 400mm2
Crimping Pressure: 120KN
Stroke: 17mm
Oil Capacity: 160ml
Crimp Type: Hexagon Crimp
Length: 412mm
Weight: 7.1kgs Including Battery
Battery Capacity: 18V / 4.0Ah
Charging Time: 80 mins
Charging Voltage: AC 100V-240V; 50-60Hz
Cycle Time: 5-8s (dependant on die size)
Cycles/Charge: Approx 120 cycles (150mm2)

Quick Links

Blue
412.0 x 326.0 x 78.0
10.0 - 400.0

In stock

19

£964.89 Excl VAT
Unit Price: £964.8900 £1157.87 Inc VAT
Unit Price: £1157.8680

Qty
Minimum Order Qty 1
Increments 1

Product Wishlist & Compare Placeholder

Delivery available from £8.50

Available to select at checkout.



Quick Links





Introducing the cutting-edge TorqTek BCT400 battery-operated crimping tool, meticulously engineered for precision lug compression spanning 10.0 to - 400.0mm2. Featuring an advanced two-stage hydraulic system with fast feed and power control, it delivers an impressive 120kN crimping force. With a 350° head rotation, the BCT400 is a versatile tool, accommodating a broad crimping range for diverse applications.

The OLED Display provides essential real-time information, showcasing battery percentage, crimping times, fault codes, and maintenance notes. Powered by the new Li-Ion 18V 4Ah batteries, this tool ensures higher capacity, while the crimp cycle operates at a swift 2.5-4 seconds, optimizing efficiency in your crimping processes. Elevate your crimping operations with the unmatched capabilities of the TorqTek BCT400




Key Features

  • Crimps cable sizes from 10.0 to 400.0mm²
  • Powerful 18V lithium-ion battery included
  • OLED Display
  • Supplied with a full die set and carry case
  • Ideal for industrial, utility and onsite applications



Technical Details

Crimp Range: 10.0 to 400mm2
Crimping Pressure: 120KN
Stroke: 17mm
Oil Capacity: 160ml
Crimp Type: Hexagon Crimp
Length: 412mm
Weight: 7.1kgs Including Battery
Battery Capacity: 18V / 4.0Ah
Charging Time: 80 mins
Charging Voltage: AC 100V-240V; 50-60Hz
Cycle Time: 5-8s (dependant on die size)
Cycles/Charge: Approx 120 cycles (150mm2)

Information

Colour: Blue

Tool Length: 412.0 x 326.0 x 78.0

Crimping Capacity (mm²): 10.0 - 400.0

Battery Powered Crimping Tools

Quick link to hydraulic tools in this section;

Explore our range of high-performance 18V hydraulic tools designed for heavy-duty electrical installations. We stock versatile 300.0mm² and 400.0mm² handheld units for crimping and cutting, alongside remote hydraulic pump systems with interchangeable heads for maximum reach. Every tool is built for consistent, professional-grade pressure on copper and aluminium cable terminations.

Questions & Answers

If you are doing hundreds of cuts a day, a dedicated cutting tool is faster and the blades last longer because they are optimized for that one job. However, for most site techs, a combi-tool that takes interchangeable heads is much more cost-effective. It saves space in the van and gives you the ability to punch holes or crimp large lugs without buying three separate expensive power units.

No, you can't. While some dies might look similar, aluminium requires a different compression profile and usually a larger die size for the same cross-sectional area of conductor. Using a copper die on an aluminium lug can lead to under-compression, which causes the joint to overheat and eventually fail under load. Always check the stamp on the lug and match it to the die.

Modern battery tools have a manual retract button. If the battery dies mid way or the tool jams, don't try to pry the head open. Use the manual retract button to bleed the pressure safely. You'll need to redo that crimp though, because a partial compression won't have the mechanical or electrical integrity required for a safe connection.
