SKU: ESP240D1

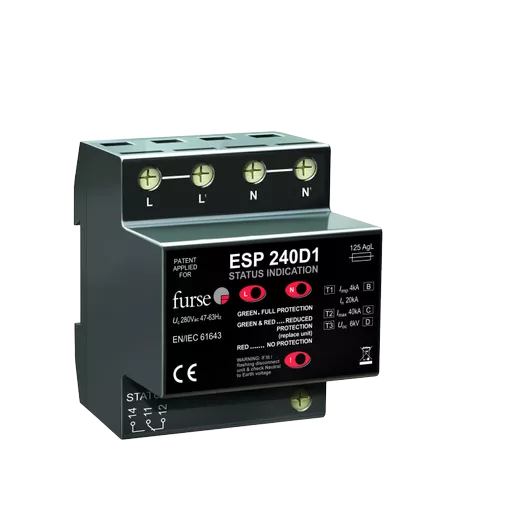

ESP240D1 - 200 - 280 V Single Phase Full-Mode Protector

SKU: ESP240D1

ESP240D1 - 200 - 280 V Single Phase Full-Mode Protector

(Single Phase) System Protection
Combined Type 1, 2 and 3 tested protector (to BS EN 61643) for use on the main distribution board, particularly where structural Lightning Protection System (LPS) is employed, for equipotential bonding. For use at the boundaries up to LPZ 0 to protect against flashover ( typically the main distribution board location) through to LPZ 3 to protect electrical equipment from damage.



Key Features

  • Single-phase protection
  • Combined Type 1, 2 & 3 SPD
  • Tested to BS EN 61643
  • Suitable for use with structural LPS
  • Designed for use from LPZ 0 to LPZ 3
  • Protects against direct lightning and transient surges
  • Ideal for main distribution boards
  • Enables equipotential bonding for safety compliance



Technical Details

Short Circuit Withstand Capability: 25 kA, 50 Hz
Frequency Range: 47-63 Hz
Max. Back-up Fuse: 125 A
Leakage Current (to earth): <250 μA
Indicator Circuit Current: <10 mA
Volt Free Contact²: Screw Terminal / Current rating 1 A / Nominal Voltage (RMS) 250 V
Temperature Range: -40°C to + 80°C
Connection Type: Screw Terminal (Max Torque 4.5Nm)
Conductor Size (stranded): 25mm²
Earth Connection: Screw Terminal (Max Torque 4.5Nm)
Volt Free Contact: Connect via screw terminal with conductor up to 1.5mm² (stranded)
Protection: IP20


See Downloads Tab for full Datasheet, Fitting Instructions and DofC.

Quick Links

0.40
240 V
280 V
350 V
WBX D4
200 - 280 V

In stock

1

£443.92 Excl VAT
Unit Price: £443.9200 £532.70 Inc VAT
Unit Price: £532.7040

Qty
Minimum Order Qty 1
Increments 1

Product Wishlist & Compare Placeholder

Delivery available from £8.50

Available to select at checkout.



Quick Links




(Single Phase) System Protection
Combined Type 1, 2 and 3 tested protector (to BS EN 61643) for use on the main distribution board, particularly where structural Lightning Protection System (LPS) is employed, for equipotential bonding. For use at the boundaries up to LPZ 0 to protect against flashover ( typically the main distribution board location) through to LPZ 3 to protect electrical equipment from damage.



Key Features

  • Single-phase protection
  • Combined Type 1, 2 & 3 SPD
  • Tested to BS EN 61643
  • Suitable for use with structural LPS
  • Designed for use from LPZ 0 to LPZ 3
  • Protects against direct lightning and transient surges
  • Ideal for main distribution boards
  • Enables equipotential bonding for safety compliance



Technical Details

Short Circuit Withstand Capability: 25 kA, 50 Hz
Frequency Range: 47-63 Hz
Max. Back-up Fuse: 125 A
Leakage Current (to earth): <250 μA
Indicator Circuit Current: <10 mA
Volt Free Contact²: Screw Terminal / Current rating 1 A / Nominal Voltage (RMS) 250 V
Temperature Range: -40°C to + 80°C
Connection Type: Screw Terminal (Max Torque 4.5Nm)
Conductor Size (stranded): 25mm²
Earth Connection: Screw Terminal (Max Torque 4.5Nm)
Volt Free Contact: Connect via screw terminal with conductor up to 1.5mm² (stranded)
Protection: IP20


See Downloads Tab for full Datasheet, Fitting Instructions and DofC.

Information

Weight (Kg): 0.40

Nom Voltage Phase Neutral Uo (RMS): 240 V

Max Voltage Phase Neutral Uc (RMS): 280 V

Short Circuit Withstand Temp Overvolt TOV UT1: 350 V

WBX Enclosure Size: WBX D4

Working Voltage (RMS): 200 - 280 V

Accessories

You might also need the following;

Explore Furse® Surge Protection Devices (SPDs) Weatherproof Enclosures, ideal for outdoor or space-limited installations. Provides extra protection for equipment where environmental or enclosure constraints demand robust surge safety

Questions & Answers

To assess the need for surge protection, conduct a risk assessment in accordance with BS EN 62305:2006 Part 2.  Furse provides a bespoke risk assessment software package called StrikeRisk to simplify and speed the process.

Furse® SPDs are designed to protect electrical and electronic systems from transient overvoltages caused by lightning strikes, switching operations or parasitic interference. They limit these overvoltages and divert damaging surge currents away from sensitive equipment.

Furse® recommends installing SPDs at the service entrance of a building (Type 1) and at sub-distribution panels (Type 2) to protect against surges from indirect lightning strikes, electrical switching and other sources. Proper installation is essential to safeguard sensitive electronics throughout the facility.
