SKU: BCT400-02

BCT400-02 TorqTek 2-in-1 Multi-Functional Tool

SKU: BCT400-02

BCT400-02 TorqTek 2-in-1 Multi-Functional Tool

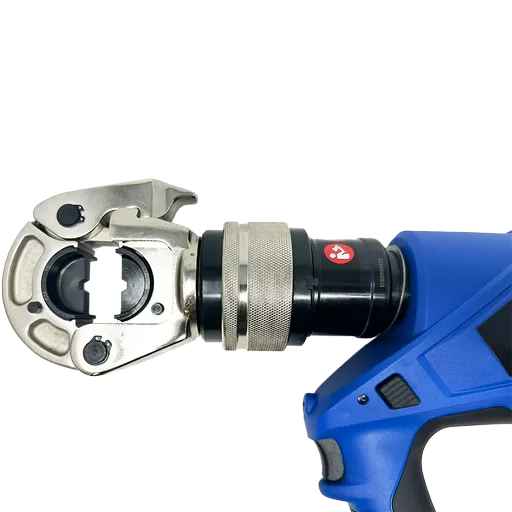

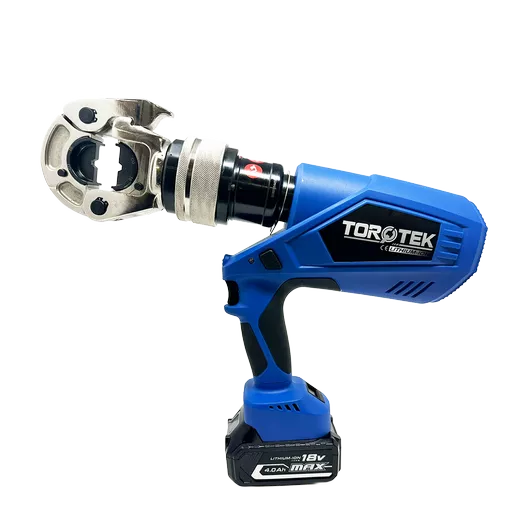

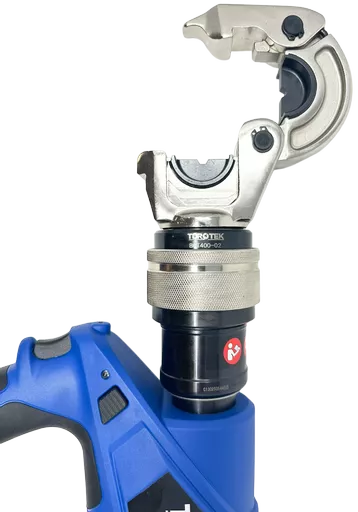

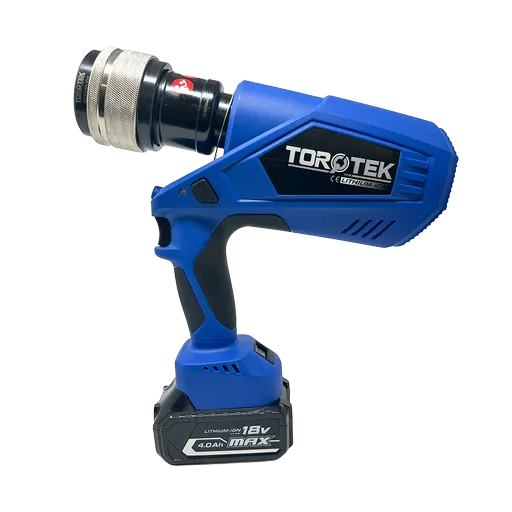

Introducing the cutting-edge TorqTek BCT400-02 battery-operated tool, engineered for precision lug compression from 10.0 to 400.0mm². This versatile model features a quickchange collar for easy switching between crimping and cutting, with a cutting head capacity of Cu/Al Ø65mm. Its advanced two-stage hydraulic system delivers an impressive 120kN force, while the 350° rotating head accommodates diverse applications.

The OLED display provides real-time battery data, cycle counts, and maintenance alerts. Powered by Li-Ion 18V 4Ah batteries, the tool ensures high capacity and a swift 2.5-4 second cycle time. Elevate your operations with the efficiency and unmatched multi-functional capabilities of the TorqTek BCT400-02.



Key Features

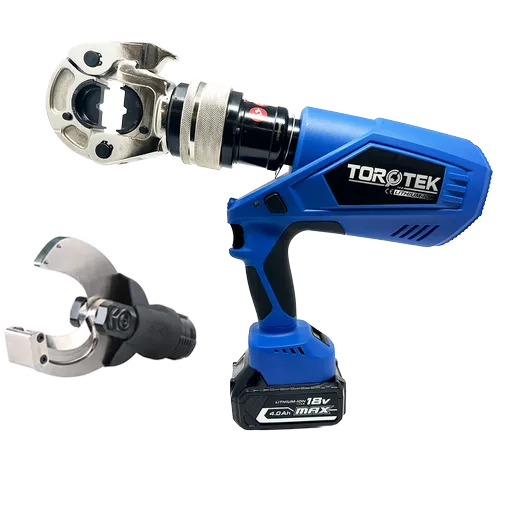

  • Quick Change between Crimping and Cutting
  • Crimps cable sizes from 10.0 to 400.0mm²

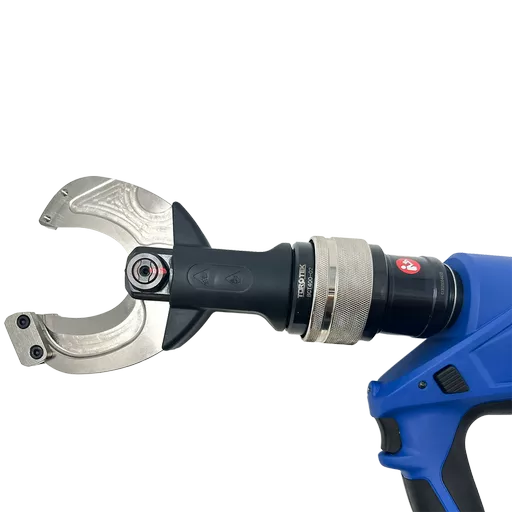

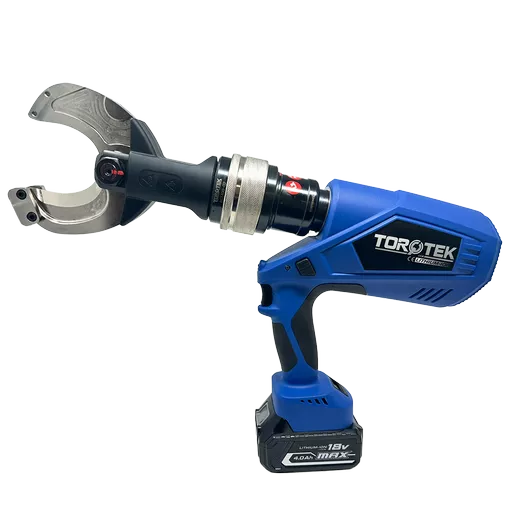

  • Cutting head capacity of Cu/Al Ø65mm
  • Powerful 18V lithium-ion battery included
  • OLED Display

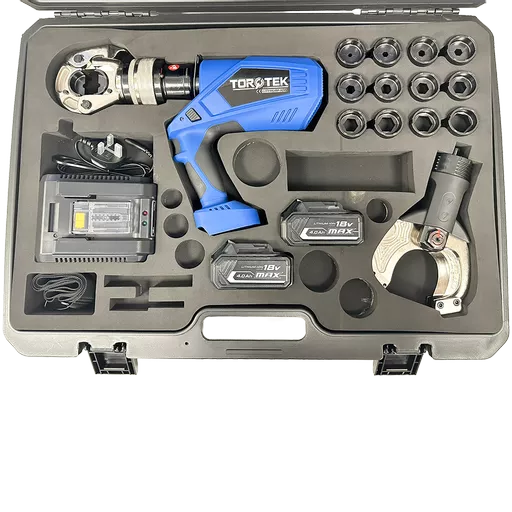

  • Supplied with a full die set and carry case
  • Ideal for industrial, utility and onsite applications



Technical Details

Crimp Range: 10.0 to 400mm2
Cutting Capacity: Cu/Al Ø65mm
Crimping Pressure: 120KN
Stroke: 42mm
Oil Capacity: 160ml
Crimp Type: Hexagon Crimp
Length: 410mm
Weight: 7.1kgs Including Battery
Battery Capacity: 18V / 4.0Ah
Charging Time: 80 mins
Charging Voltage: AC 100V-240V; 50-60Hz
Cycle Time: 5-8s (dependant on die size)
Cycles/Charge: Approx 120 cycles (150mm2)

Quick Links

Cu/Al Ø65mm
Blue
412.0 x 326.0 x 78.0
10.0 - 400.0

In stock

8

£1123.00 Excl VAT
Unit Price: £1123.0000 £1347.60 Inc VAT
Unit Price: £1347.6000

Qty
Minimum Order Qty 1
Increments 1

Product Wishlist & Compare Placeholder

Delivery available from £8.50

Available to select at checkout.



Quick Links





Introducing the cutting-edge TorqTek BCT400-02 battery-operated tool, engineered for precision lug compression from 10.0 to 400.0mm². This versatile model features a quickchange collar for easy switching between crimping and cutting, with a cutting head capacity of Cu/Al Ø65mm. Its advanced two-stage hydraulic system delivers an impressive 120kN force, while the 350° rotating head accommodates diverse applications.

The OLED display provides real-time battery data, cycle counts, and maintenance alerts. Powered by Li-Ion 18V 4Ah batteries, the tool ensures high capacity and a swift 2.5-4 second cycle time. Elevate your operations with the efficiency and unmatched multi-functional capabilities of the TorqTek BCT400-02.



Key Features

  • Quick Change between Crimping and Cutting
  • Crimps cable sizes from 10.0 to 400.0mm²
  • Cutting head capacity of Cu/Al Ø65mm
  • Powerful 18V lithium-ion battery included
  • OLED Display
  • Supplied with a full die set and carry case
  • Ideal for industrial, utility and onsite applications



Technical Details

Crimp Range: 10.0 to 400mm2
Cutting Capacity: Cu/Al Ø65mm
Crimping Pressure: 120KN
Stroke: 42mm
Oil Capacity: 160ml
Crimp Type: Hexagon Crimp
Length: 410mm
Weight: 7.1kgs Including Battery
Battery Capacity: 18V / 4.0Ah
Charging Time: 80 mins
Charging Voltage: AC 100V-240V; 50-60Hz
Cycle Time: 5-8s (dependant on die size)
Cycles/Charge: Approx 120 cycles (150mm2)

Information

Cutting Capacity: Cu/Al Ø65mm

Colour: Blue

Tool Length: 412.0 x 326.0 x 78.0

Crimping Capacity (mm²): 10.0 - 400.0

Battery Powered Crimping Tools

Quick link to hydraulic tools in this section;

Explore our range of high-performance 18V hydraulic tools designed for heavy-duty electrical installations. We stock versatile 300.0mm² and 400.0mm² handheld units for crimping and cutting, alongside remote hydraulic pump systems with interchangeable heads for maximum reach. Every tool is built for consistent, professional-grade pressure on copper and aluminium cable terminations.

Questions & Answers

If you are doing hundreds of cuts a day, a dedicated cutting tool is faster and the blades last longer because they are optimized for that one job. However, for most site techs, a combi-tool that takes interchangeable heads is much more cost-effective. It saves space in the van and gives you the ability to punch holes or crimp large lugs without buying three separate expensive power units.

No, you can't. While some dies might look similar, aluminium requires a different compression profile and usually a larger die size for the same cross-sectional area of conductor. Using a copper die on an aluminium lug can lead to under-compression, which causes the joint to overheat and eventually fail under load. Always check the stamp on the lug and match it to the die.

Modern battery tools have a manual retract button. If the battery dies mid way or the tool jams, don't try to pry the head open. Use the manual retract button to bleed the pressure safely. You'll need to redo that crimp though, because a partial compression won't have the mechanical or electrical integrity required for a safe connection.
