SKU: BST300

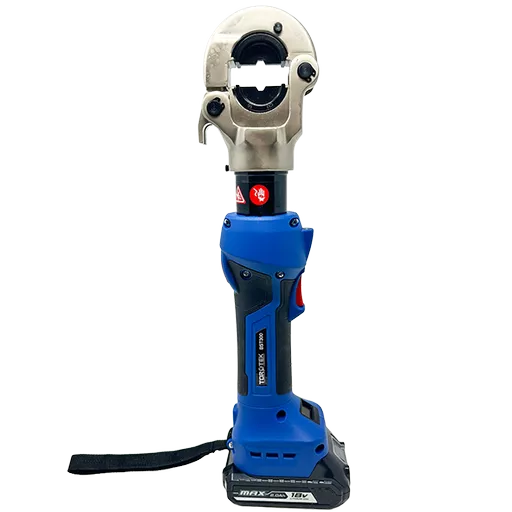

TorqTek Battery Powered Hexagon Crimping Tool 10.0 to 300.0mm2

SKU: BST300

TorqTek Battery Powered Hexagon Crimping Tool 10.0 to 300.0mm2

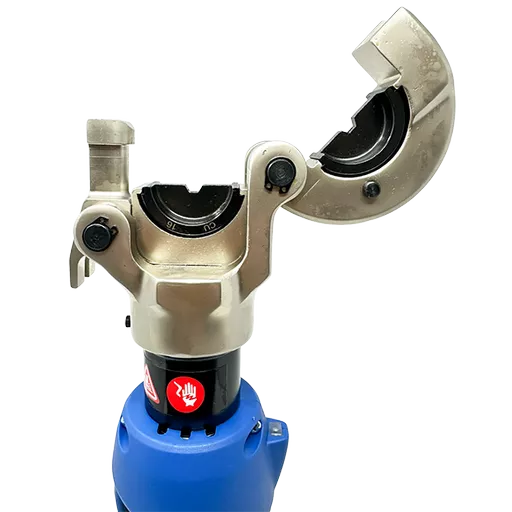

Introducing the TorqTek BST300, the next evolution in battery-powered crimping for lugs ranging from 10.0–300.0mm². This redesigned series features a slim, ergonomic in-line grip and lightweight build, specifically engineered for overhead work and confined spaces. The upgraded 350° swivel barrel ensures effortless access to complex terminal connections, while the 60kN two-stage hydraulic system delivers a rapid crimp cycle of just 2.5 to 4 seconds.

The BST300 integrates an advanced OLED Display for real-time tracking of battery levels and maintenance needs, alongside a dual-color LED indicator for instant cycle confirmation. Controlled via a single trigger with an anti-slip grip, the tool includes a manual retract function and built-in LED worklight for total precision. Combining an updated internal structure with extended service life, the BST300 represents the pinnacle of efficiency and durability for professional crimping applications.




Key Features

  • Crimps cable sizes from 10.0mm² to 300.0mm²
  • Ergonomic In-Line Precision
  • Intelligent Performance Monitoring
  • 18V lithium-ion battery for portable power
  • 2-hour full battery charge for all-day use




Technical Details

Crimp Range: 10.0 to 300mm2
Crimping Pressure: 60KN
Stroke: 17mm
Oil Capacity: 60ml
Crimp Type: Hexagon Crimp
Length: 428mm
Weight: 3.5kgs Including Battery
Battery Capacity: 18V / 2.0Ah
Charging Time: 40 mins
Charging Voltage: AC 100V-240V; 50-60Hz
Cycle Time: 2.5-4s (depends on die size)

Quick Links

Blue
428.0 x 134.0 x 75.0
10.0 - 300.0

In stock

1

£783.54 Excl VAT
Unit Price: £783.5400 £940.25 Inc VAT
Unit Price: £940.2480

Qty
Minimum Order Qty 1
Increments 1

Product Wishlist & Compare Placeholder

Delivery available from £8.50

Available to select at checkout.



Quick Links





Introducing the TorqTek BST300, the next evolution in battery-powered crimping for lugs ranging from 10.0–300.0mm². This redesigned series features a slim, ergonomic in-line grip and lightweight build, specifically engineered for overhead work and confined spaces. The upgraded 350° swivel barrel ensures effortless access to complex terminal connections, while the 60kN two-stage hydraulic system delivers a rapid crimp cycle of just 2.5 to 4 seconds.

The BST300 integrates an advanced OLED Display for real-time tracking of battery levels and maintenance needs, alongside a dual-color LED indicator for instant cycle confirmation. Controlled via a single trigger with an anti-slip grip, the tool includes a manual retract function and built-in LED worklight for total precision. Combining an updated internal structure with extended service life, the BST300 represents the pinnacle of efficiency and durability for professional crimping applications.




Key Features

  • Crimps cable sizes from 10.0mm² to 300.0mm²
  • Ergonomic In-Line Precision
  • Intelligent Performance Monitoring
  • 18V lithium-ion battery for portable power
  • 2-hour full battery charge for all-day use




Technical Details

Crimp Range: 10.0 to 300mm2
Crimping Pressure: 60KN
Stroke: 17mm
Oil Capacity: 60ml
Crimp Type: Hexagon Crimp
Length: 428mm
Weight: 3.5kgs Including Battery
Battery Capacity: 18V / 2.0Ah
Charging Time: 40 mins
Charging Voltage: AC 100V-240V; 50-60Hz
Cycle Time: 2.5-4s (depends on die size)

Information

Colour: Blue

Tool Length: 428.0 x 134.0 x 75.0

Crimping Capacity (mm²): 10.0 - 300.0

Battery Powered Crimping Tools

Quick link to hydraulic tools in this section;

Explore our range of high-performance 18V hydraulic tools designed for heavy-duty electrical installations. We stock versatile 300.0mm² and 400.0mm² handheld units for crimping and cutting, alongside remote hydraulic pump systems with interchangeable heads for maximum reach. Every tool is built for consistent, professional-grade pressure on copper and aluminium cable terminations.

Questions & Answers

If you are doing hundreds of cuts a day, a dedicated cutting tool is faster and the blades last longer because they are optimized for that one job. However, for most site techs, a combi-tool that takes interchangeable heads is much more cost-effective. It saves space in the van and gives you the ability to punch holes or crimp large lugs without buying three separate expensive power units.

No, you can't. While some dies might look similar, aluminium requires a different compression profile and usually a larger die size for the same cross-sectional area of conductor. Using a copper die on an aluminium lug can lead to under-compression, which causes the joint to overheat and eventually fail under load. Always check the stamp on the lug and match it to the die.

Modern battery tools have a manual retract button. If the battery dies mid way or the tool jams, don't try to pry the head open. Use the manual retract button to bleed the pressure safely. You'll need to redo that crimp though, because a partial compression won't have the mechanical or electrical integrity required for a safe connection.
