SKU: EC1

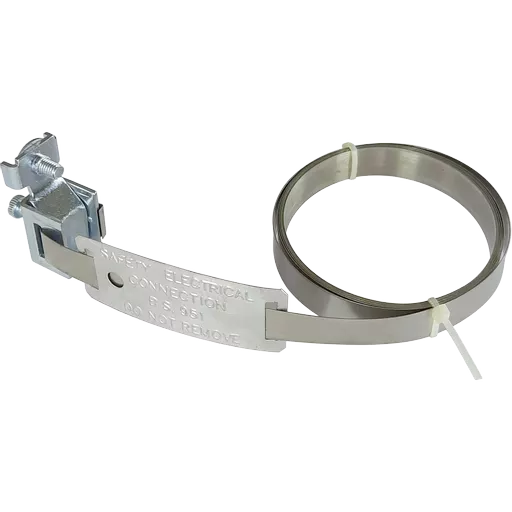

EC1 - Earth Bond Clamp

SKU: EC1

EC1 - Earth Bond Clamp

The EC1 Earth Clamp is designed for bonding large diameter circular objects such as pipework, handrails, and structural steel from 50mm to 450mm in diameter. It features a 1600mm long stainless steel (304) strap, a durable phosphor bronze terminal body, and an aluminium identification label.
The terminal accepts conductors from 2.5mm² to 10mm², making it suitable for a wide range of earthing and bonding applications in industrial and commercial environments.



Key Features

  • Suitable for 50mm to 450mm diameter pipes
  • 1600mm stainless steel strap
  • Phosphor bronze terminal body
  • Aluminium earthing label
  • Accepts 2.5–10mm² conductors
  • Ideal for bonding handrails, pipework, steel



Technical Details

Strap Material: Stainless Steel (304 grade)
Body Material: Phosphorus Bronze
Label Material: Aluminium



Quick Links

2.5 - 10.0mm²
1600 (63")
50.0 to 450.0

In stock

2268

£7.68 Excl VAT
Unit Price: £7.6800 £9.22 Inc VAT
Unit Price: £9.2160

Qty
Minimum Order Qty 1
Increments 1

Product Wishlist & Compare Placeholder

Delivery available from £8.50

Available to select at checkout.



Quick Links




The EC1 Earth Clamp is designed for bonding large diameter circular objects such as pipework, handrails, and structural steel from 50mm to 450mm in diameter. It features a 1600mm long stainless steel (304) strap, a durable phosphor bronze terminal body, and an aluminium identification label.
The terminal accepts conductors from 2.5mm² to 10mm², making it suitable for a wide range of earthing and bonding applications in industrial and commercial environments.



Key Features

  • Suitable for 50mm to 450mm diameter pipes
  • 1600mm stainless steel strap
  • Phosphor bronze terminal body
  • Aluminium earthing label
  • Accepts 2.5–10mm² conductors
  • Ideal for bonding handrails, pipework, steel



Technical Details

Strap Material: Stainless Steel (304 grade)
Body Material: Phosphorus Bronze
Label Material: Aluminium



Information

Terminal Size: 2.5 - 10.0mm²

Strap Length: 1600 (63")

Pipe Diameter: 50.0 to 450.0
