SKU: PTK5/25B

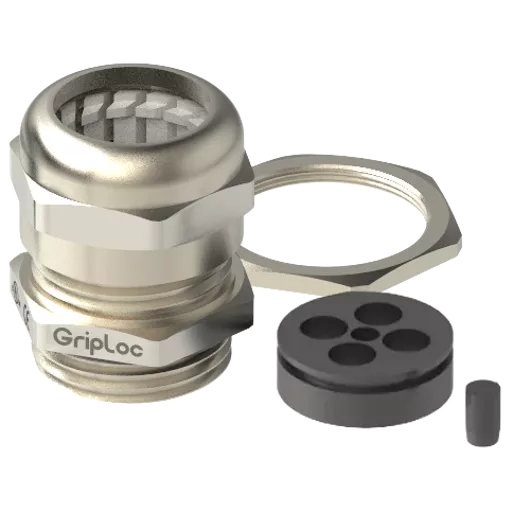

PTK5/25B - M40 GripLoc® Phase Kit - 4x 25mm² + 1x 16mm² - Brass

SKU: PTK5/25B

PTK5/25B - M40 GripLoc® Phase Kit - 4x 25mm² + 1x 16mm² - Brass

The Griploc® '3 Phase Cable Gland' is purpose-built for fast, secure three phase terminations in distribution boards and control panels. Housed in a compact M40 body, this gland safely accommodates four 25mm² phase cables plus a 16mm² earth, all routed through a single entry point to save space and reduce clutter inside your enclosure.

Manufactured  in  corrosion-resistant nickel-plated brass for heavy-duty industrial sites. This gland delivers dependable strain relief, high ingress protection and long-lasting performance in demanding conditions.

Each Griploc 3 Phase Gland features a multi-hole seal that grips each conductor tightly to maintain an IP68 seal against dust and water. The design keeps cables stable under vibration and movement, cutting down on maintenance and ensuring a clean, tidy installation.

Ideal for installers and contractors looking to streamline wiring in switchgear, panels and consumer units.


Seal Configuration
4x  25mm² Phase Tails &  1x 16mm² Earth
M40 Cable Gland



Key Features

  • Designed for three phase installs in panels and boards
  • Compact M40 gland grips four 25mm² phase cables plus 16mm² earth
  • Blanking plug included if earth cable not required
  • Manufactured in corrosion-resistant Nickel-Plated Brass
  • Multi-hole seal ensures IP68 protection against dust and water
  • Provides stable strain relief under vibration and tension
  • Supplied complete with sealing washer and locknut



Technical Details

Standards: EN 50262
Protection: IP68
Temperature Range: -40°C to 100°C (static) (120° Instantaneous)
Material (Gland): Nickel-Plated Brass
Material (Seal): NBR Seal and EPDM O-Ring



Quick Links

MTK Brass
Silver
M40 x 1.5
45.0
50.0
4x 25mm² + 1x 16mm²

In stock

16

£11.42 Excl VAT
Unit Price: £11.4200 £13.70 Inc VAT
Unit Price: £13.7040

Qty
Minimum Order Qty 1
Increments 1

Product Wishlist & Compare Placeholder

Delivery available from £8.50

Available to select at checkout.



Quick Links




The Griploc® '3 Phase Cable Gland' is purpose-built for fast, secure three phase terminations in distribution boards and control panels. Housed in a compact M40 body, this gland safely accommodates four 25mm² phase cables plus a 16mm² earth, all routed through a single entry point to save space and reduce clutter inside your enclosure.

Manufactured  in  corrosion-resistant nickel-plated brass for heavy-duty industrial sites. This gland delivers dependable strain relief, high ingress protection and long-lasting performance in demanding conditions.

Each Griploc 3 Phase Gland features a multi-hole seal that grips each conductor tightly to maintain an IP68 seal against dust and water. The design keeps cables stable under vibration and movement, cutting down on maintenance and ensuring a clean, tidy installation.

Ideal for installers and contractors looking to streamline wiring in switchgear, panels and consumer units.


Seal Configuration
4x  25mm² Phase Tails &  1x 16mm² Earth
M40 Cable Gland



Key Features

  • Designed for three phase installs in panels and boards
  • Compact M40 gland grips four 25mm² phase cables plus 16mm² earth
  • Blanking plug included if earth cable not required
  • Manufactured in corrosion-resistant Nickel-Plated Brass
  • Multi-hole seal ensures IP68 protection against dust and water
  • Provides stable strain relief under vibration and tension
  • Supplied complete with sealing washer and locknut



Technical Details

Standards: EN 50262
Protection: IP68
Temperature Range: -40°C to 100°C (static) (120° Instantaneous)
Material (Gland): Nickel-Plated Brass
Material (Seal): NBR Seal and EPDM O-Ring



Information

Product Type: MTK Brass

Colour: Silver

Entry Thread Size: M40 x 1.5

Gland Length (L2): 45.0

A/F: 50.0

Insert Configuration: 4x 25mm² + 1x 16mm²

Accessories

You might also need the following;

Explore Remora’s extensive range of cable gland accessories, including locknuts, earth tags, sealing washers, serrated lock washers, shrouds, earth locknuts, reducers, adaptors, stopping plugs, and breather drain plugs. Everything needed for secure, compliant cable gland installations.

Questions & Answers

Single and double compression cable glands differ in their sealing and clamping mechanisms:

Single Compression Glands: These glands provide compression around the outer sheath of the cable, offering basic sealing and strain relief. They are suitable for indoor/outdoor applications where environmental conditions are controlled.

Double Compression Glands: These glands provide compression at both the outer sheath and the inner bedding layer of the cable. This dual compression offers enhanced sealing and strain relief, making them ideal for outdoor or hazardous environments where additional protection is required.

Yes - Specific types of cable glands are designed for use in hazardous area environments. These glands are constructed to prevent the ingress of flammable gases or dust and are often certified to standards such as ATEX or IECEx, ensuring safety in explosive atmospheres. See CCG Hazardous Area Glands for our full range.

When installing Cable Glands using plain holes and locknuts, the recommended clearance of +0.2 mm above the nominal thread diameter. For example, an M20 gland should be mounted in a 20.2 mm diameter hole. The maximum recommended clearance is +0.7 mm. This ensures a secure fit while allowing easy installation.
