SKU: MTK3/16B

MTK3/16B - M32 GripLoc Tails Kit - NP Brass - 2x 16mm² + 1x 10mm²

SKU: MTK3/16B

MTK3/16B - M32 GripLoc Tails Kit - NP Brass - 2x 16mm² + 1x 10mm²

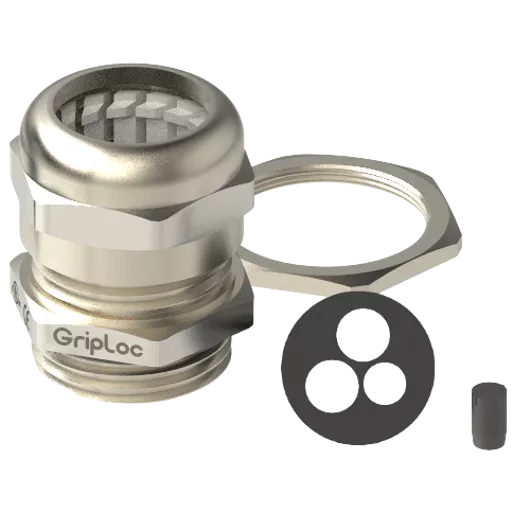

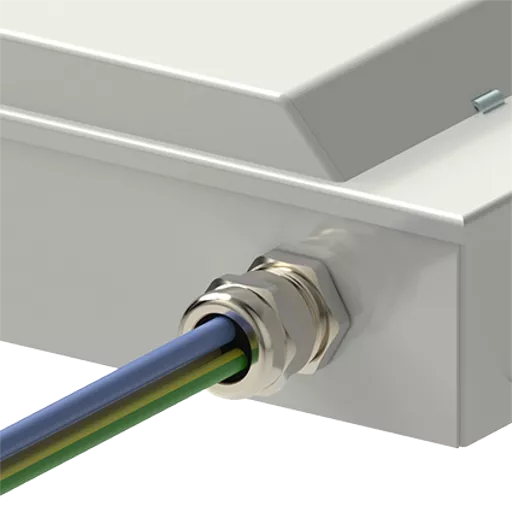

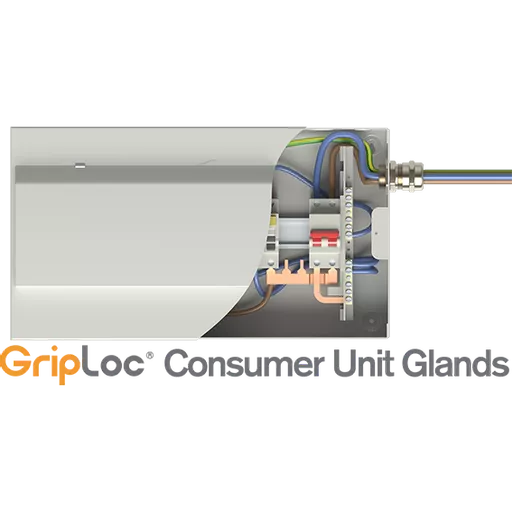

The GripLoc® Consumer Unit Gland is purpose-built for safe, tidy cable entry into domestic distribution boards and consumer units. Designed around incoming tails, this gland provides a clean, compact M32 solution that accepts 2 x 16mm² cables through a single point of entry.

Manufactured  in  corrosion-resistant nickel-plated brass, this gland keeps everything secure and well sealed. It’s IP68 rated for protection against dust and moisture, helping to maintain cable integrity over time.

Each kit includes  cable galnd and pre fitted seal to suit 16mm² incomming tails.  A blanking plug is also supplied, allowing easy accommodation of installations that don’t require an earth conductor.

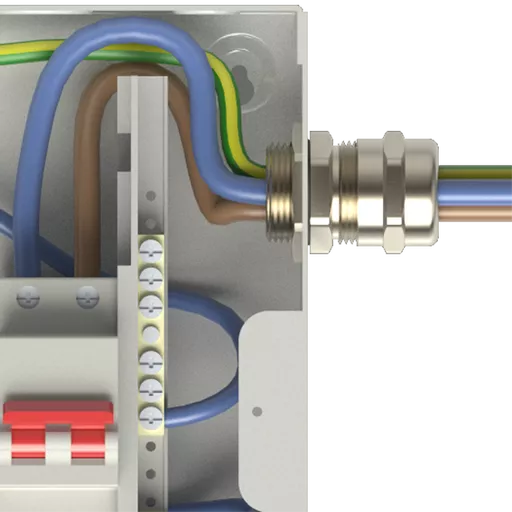

By routing both tails through one entry, the gland helps avoid eddy currents and provides an insulating barrier in TT systems. It's a smart choice for installers who want safe, compliant, and neatly managed terminations at the point of entry.



Key Features

  • Accepts 2 x 16mm² incoming tails
  • Conforms to 18th Edition Wiring Regulations to BS 7671:2018
  • Compact M32 body for clean single-entry installations
  • IP68 rated for dust and water protection
  • Helps prevent eddy currents by combining tails into one entry
  • Manufactured in  corrosion-resistant Nickel-Plated Brass
  • Blanking plug included for flexible installation
  • Provides insulation in TT system applications


Technical Details

Standards: EN 50262
Protection: IP68
Temperature Range: -40°C to 100°C (static) (120° Instantaneous)
Material (Gland): Nickel-Plated Brass
Material (Seal): NBR Seal and EPDM O-Ring



Quick Links

MTK Brass
Silver
M32 x 1.5
31.0
40.0
2x 16mm² + 1x 10mm²

In stock

35

£7.33 Excl VAT
Unit Price: £7.3300 £8.80 Inc VAT
Unit Price: £8.7960

Qty
Minimum Order Qty 1
Increments 1

Product Wishlist & Compare Placeholder

Delivery available from £8.50

Available to select at checkout.



Quick Links




The GripLoc® Consumer Unit Gland is purpose-built for safe, tidy cable entry into domestic distribution boards and consumer units. Designed around incoming tails, this gland provides a clean, compact M32 solution that accepts 2 x 16mm² cables through a single point of entry.

Manufactured  in  corrosion-resistant nickel-plated brass, this gland keeps everything secure and well sealed. It’s IP68 rated for protection against dust and moisture, helping to maintain cable integrity over time.

Each kit includes  cable galnd and pre fitted seal to suit 16mm² incomming tails.  A blanking plug is also supplied, allowing easy accommodation of installations that don’t require an earth conductor.

By routing both tails through one entry, the gland helps avoid eddy currents and provides an insulating barrier in TT systems. It's a smart choice for installers who want safe, compliant, and neatly managed terminations at the point of entry.



Key Features

  • Accepts 2 x 16mm² incoming tails
  • Conforms to 18th Edition Wiring Regulations to BS 7671:2018
  • Compact M32 body for clean single-entry installations
  • IP68 rated for dust and water protection
  • Helps prevent eddy currents by combining tails into one entry
  • Manufactured in  corrosion-resistant Nickel-Plated Brass
  • Blanking plug included for flexible installation
  • Provides insulation in TT system applications


Technical Details

Standards: EN 50262
Protection: IP68
Temperature Range: -40°C to 100°C (static) (120° Instantaneous)
Material (Gland): Nickel-Plated Brass
Material (Seal): NBR Seal and EPDM O-Ring



Information

Product Type: MTK Brass

Colour: Silver

Entry Thread Size: M32 x 1.5

Gland Length (L2): 31.0

A/F: 40.0

Insert Configuration: 2x 16mm² + 1x 10mm²

Accessories

You might also need the following;

Explore Remora’s extensive range of cable gland accessories, including locknuts, earth tags, sealing washers, serrated lock washers, shrouds, earth locknuts, reducers, adaptors, stopping plugs, and breather drain plugs. Everything needed for secure, compliant cable gland installations.

Questions & Answers

Single and double compression cable glands differ in their sealing and clamping mechanisms:

Single Compression Glands: These glands provide compression around the outer sheath of the cable, offering basic sealing and strain relief. They are suitable for indoor/outdoor applications where environmental conditions are controlled.

Double Compression Glands: These glands provide compression at both the outer sheath and the inner bedding layer of the cable. This dual compression offers enhanced sealing and strain relief, making them ideal for outdoor or hazardous environments where additional protection is required.

Yes - Specific types of cable glands are designed for use in hazardous area environments. These glands are constructed to prevent the ingress of flammable gases or dust and are often certified to standards such as ATEX or IECEx, ensuring safety in explosive atmospheres. See CCG Hazardous Area Glands for our full range.

When installing Cable Glands using plain holes and locknuts, the recommended clearance of +0.2 mm above the nominal thread diameter. For example, an M20 gland should be mounted in a 20.2 mm diameter hole. The maximum recommended clearance is +0.7 mm. This ensures a secure fit while allowing easy installation.
