SKU: 100302-P

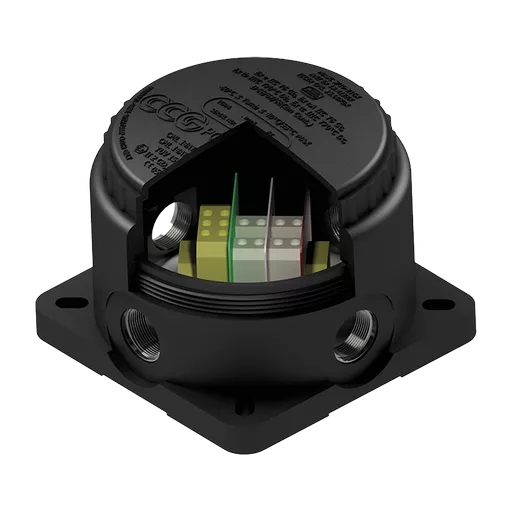

100302-P - CCG POSIFIT-TX EExe IP68 GRP Junction Box c/w Terminals

SKU: 100302-P

100302-P - CCG POSIFIT-TX EExe IP68 GRP Junction Box c/w Terminals

The PosiFit Exe Junction Box is a heavy-duty, flame-retardant enclosure designed for hazardous and industrial environments. Constructed from glass-reinforced polyester (GRP), it offers high resistance to corrosion, impact, and chemical exposure, making it ideal for use in oil, gas, marine, and heavy industrial applications.

This 4-way junction box features an IP66 ingress protection rating, ensuring strong defence against dust, water, and environmental contaminants. It is certified for use in Zone 1 and Zone 2 hazardous areas, offering safe, compliant termination of electrical conductors in explosive atmospheres.

Pre-moulded with threaded entries and supplied with terminals, the PosiFit Exe Box allows for fast and secure installation. A tamper-proof lid can be secured with fasteners or a locking system to restrict unauthorised access.

Pre-populated with terminals for your convenience, fully certified and ready for use.



Key Features

  • Supplied complete with 8x 2.5-4.0mm² terminals & 1x 4.0mm² earth terminal
  • 4x M25 entries, supplied complete with stopping plugs
  • Posi Fit™ box for use in Group II and Group III applications.
  • Raised domed lid facilitates connections to be made clear of the box base.
  • Screw-on lid provides ease of installation. Lid locking with a special key prevents unauthorized tampering.
  • Supplied complete with safety securing lid lanyard.
  • DIN Rail mounting studs are provided for use with terminal blocks.
  • Dust and watertight to IP66/68, when fitted with CCG sealed cable glands.
  • No drilling of the cable entries is required. Internal earthing to all entries and rail.



Technical Details

Protection: IP66 / IP68
Ambient Temperature Range: -60°C to 55°C (Finished)
Survive Temperature Range: -60°C to 110°C (Unfinished)
Material: Impact, Corrosion and UV Resistant Glass Reinforced Polyester
Colour: Black
Equipment Protection:
ATEX/UKEX: (Finished) I M2, II 2GD / 3G Ex eb I Mb / Ex eb IIC T6 Gb / Ex tb IIIC T70°C Db
ATEX/UKEX: (Unfinished) I M2, II 2GD / 3G Ex eb I Mb / Ex eb IIC Gb / Ex ec IIC Gc / Ex tb IIIC Db

Quick Links

67.0
108.0
107.0
98.0
140.0
M25 x 1.5
8 x 2.5-4.0mm²
1 x 4.0mm²

In stock

8

£108.76 Excl VAT
Unit Price: £108.7600 £130.51 Inc VAT
Unit Price: £130.5120

Qty
Minimum Order Qty 1
Increments 1

Product Wishlist & Compare Placeholder

Delivery available from £8.50

Available to select at checkout.



Quick Links




The PosiFit Exe Junction Box is a heavy-duty, flame-retardant enclosure designed for hazardous and industrial environments. Constructed from glass-reinforced polyester (GRP), it offers high resistance to corrosion, impact, and chemical exposure, making it ideal for use in oil, gas, marine, and heavy industrial applications.

This 4-way junction box features an IP66 ingress protection rating, ensuring strong defence against dust, water, and environmental contaminants. It is certified for use in Zone 1 and Zone 2 hazardous areas, offering safe, compliant termination of electrical conductors in explosive atmospheres.

Pre-moulded with threaded entries and supplied with terminals, the PosiFit Exe Box allows for fast and secure installation. A tamper-proof lid can be secured with fasteners or a locking system to restrict unauthorised access.

Pre-populated with terminals for your convenience, fully certified and ready for use.



Key Features

  • Supplied complete with 8x 2.5-4.0mm² terminals & 1x 4.0mm² earth terminal
  • 4x M25 entries, supplied complete with stopping plugs
  • Posi Fit™ box for use in Group II and Group III applications.
  • Raised domed lid facilitates connections to be made clear of the box base.
  • Screw-on lid provides ease of installation. Lid locking with a special key prevents unauthorized tampering.
  • Supplied complete with safety securing lid lanyard.
  • DIN Rail mounting studs are provided for use with terminal blocks.
  • Dust and watertight to IP66/68, when fitted with CCG sealed cable glands.
  • No drilling of the cable entries is required. Internal earthing to all entries and rail.



Technical Details

Protection: IP66 / IP68
Ambient Temperature Range: -60°C to 55°C (Finished)
Survive Temperature Range: -60°C to 110°C (Unfinished)
Material: Impact, Corrosion and UV Resistant Glass Reinforced Polyester
Colour: Black
Equipment Protection:
ATEX/UKEX: (Finished) I M2, II 2GD / 3G Ex eb I Mb / Ex eb IIC T6 Gb / Ex tb IIIC T70°C Db
ATEX/UKEX: (Unfinished) I M2, II 2GD / 3G Ex eb I Mb / Ex eb IIC Gb / Ex ec IIC Gc / Ex tb IIIC Db

Information

(B): 67.0

(C): 108.0

(D): 107.0

(E): 98.0

(F): 140.0

Entry Thread Size: M25 x 1.5

Terminal: 8 x 2.5-4.0mm²

Earth Terminal: 1 x 4.0mm²
