SKU: 100302

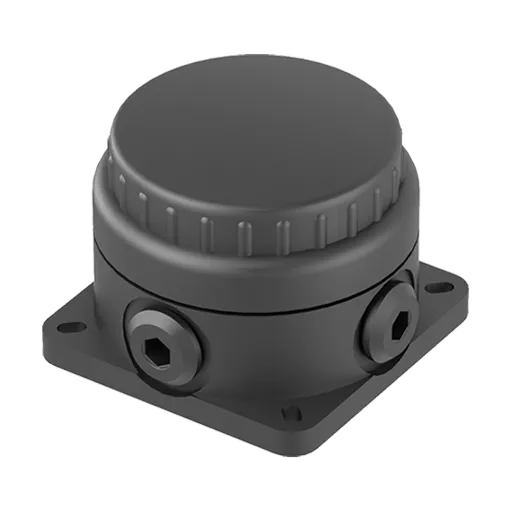

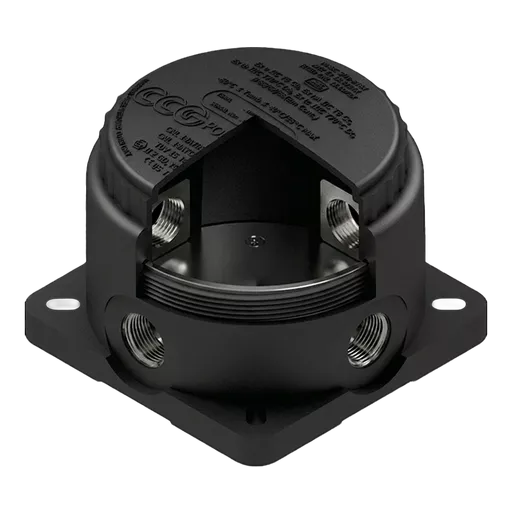

100302 - CCG POSIFIT EExe IP68 GRP 4 way entry Junction Box M25


SKU: 100302

100302 - CCG POSIFIT EExe IP68 GRP 4 way entry Junction Box M25

The PosiFit Exe Junction Box is a heavy duty, flame retardant enclosure designed for hazardous and industrial environments. Constructed from glass reinforced polyester (GRP), it offers high resistance to corrosion, impact, and chemical exposure, making it ideal for use in oil, gas, marine, and heavy industrial applications.
This 4-way junction box features an IP66 ingress protection rating, ensuring strong defence against dust, water, and environmental contaminants. It is certified for use in Zone 1 and Zone 2 hazardous areas, offering safe, compliant termination of electrical conductors in explosive atmospheres.

Pre-moulded with threaded entries the PosiFit Exe Box allows for fast and secure installation. A tamper proof lid can be secured with fasteners or a locking system to restrict unauthorised access. Engineered for Exe-rated electrical systems, this enclosure supports reliable performance and long-term safety in mission critical environments.




Key Features

  • 4x M25 entries, supplied complete with stopping plugs
  • Posi Fit™ box for use in Group II and Group III applications.
  • Raised domed lid facilitates connections to be made clear of the box base.
  • Screw-on lid provides ease of installation. Lid locking with a special key prevents unauthorized tampering.
  • Supplied complete with safety securing lid lanyard.
  • DIN Rail mounting studs are provided for use with terminal blocks.
  • Dust and watertight to IP66/68, when fitted with CCG sealed cable glands.
  • No drilling of the cable entries is required. Internal earthing to all entries and rail.




Technical Details

Protection: IP66 / IP68
Ambient Temperature Range: -60°C to 55°C (Finished)
Survive Temperature Range: -60°C to 110°C (Unfinished)
Material: Impact, Corrosion and UV Resistant Glass Reinforced Polyester
Colour: Black
Equipment Protection:
ATEX/UKEX: (Finished) I M2, II 2GD / 3G Ex eb I Mb / Ex eb IIC T6 Gb / Ex tb IIIC T70°C Db
ATEX/UKEX: (Unfinished) I M2, II 2GD / 3G Ex eb I Mb / Ex eb IIC Gb / Ex ec IIC Gc / Ex tb IIIC Db

Quick Links

2-M25
67.0
108.0
107.0
98.0
140.0
M25 x 1.5

In stock

8

£56.90 Excl VAT
Unit Price: £56.9000 £68.28 Inc VAT
Unit Price: £68.2800

Qty
Minimum Order Qty 1
Increments 1

Product Wishlist & Compare Placeholder

Delivery available from £8.50

Available to select at checkout.



Quick Links




The PosiFit Exe Junction Box is a heavy duty, flame retardant enclosure designed for hazardous and industrial environments. Constructed from glass reinforced polyester (GRP), it offers high resistance to corrosion, impact, and chemical exposure, making it ideal for use in oil, gas, marine, and heavy industrial applications.
This 4-way junction box features an IP66 ingress protection rating, ensuring strong defence against dust, water, and environmental contaminants. It is certified for use in Zone 1 and Zone 2 hazardous areas, offering safe, compliant termination of electrical conductors in explosive atmospheres.

Pre-moulded with threaded entries the PosiFit Exe Box allows for fast and secure installation. A tamper proof lid can be secured with fasteners or a locking system to restrict unauthorised access. Engineered for Exe-rated electrical systems, this enclosure supports reliable performance and long-term safety in mission critical environments.




Key Features

  • 4x M25 entries, supplied complete with stopping plugs
  • Posi Fit™ box for use in Group II and Group III applications.
  • Raised domed lid facilitates connections to be made clear of the box base.
  • Screw-on lid provides ease of installation. Lid locking with a special key prevents unauthorized tampering.
  • Supplied complete with safety securing lid lanyard.
  • DIN Rail mounting studs are provided for use with terminal blocks.
  • Dust and watertight to IP66/68, when fitted with CCG sealed cable glands.
  • No drilling of the cable entries is required. Internal earthing to all entries and rail.




Technical Details

Protection: IP66 / IP68
Ambient Temperature Range: -60°C to 55°C (Finished)
Survive Temperature Range: -60°C to 110°C (Unfinished)
Material: Impact, Corrosion and UV Resistant Glass Reinforced Polyester
Colour: Black
Equipment Protection:
ATEX/UKEX: (Finished) I M2, II 2GD / 3G Ex eb I Mb / Ex eb IIC T6 Gb / Ex tb IIIC T70°C Db
ATEX/UKEX: (Unfinished) I M2, II 2GD / 3G Ex eb I Mb / Ex eb IIC Gb / Ex ec IIC Gc / Ex tb IIIC Db

Information

Reference Size: 2-M25

(B): 67.0

(C): 108.0

(D): 107.0

(E): 98.0

(F): 140.0

Entry Thread Size: M25 x 1.5
