SKU: GripLoc-SR-M20s-B

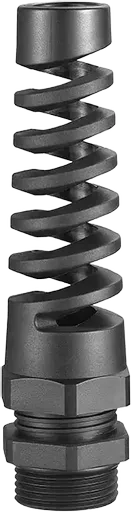

GRIPLOC-SR-M20S-B - M20s IP68 Metric Strain Relief Gland + L/N - Black

SKU: GripLoc-SR-M20s-B

GRIPLOC-SR-M20S-B - M20s IP68 Metric Strain Relief Gland + L/N - Black

Cable gland with bend protection, polyamide


  • Standard Metric range of nylon cable glands
  • GripLoc Seal® - Superior Ingress Protection, mechanical grip and cable retention.
  • Vibration-Lock - Suitable for high vibration environments.


    Standards: EN 50262
    Protection: IP68 10 bar (150 PSI)
    Temperature Range: -40°C to 100°C (static)
    Material (Gland): PA (Nylon) UL 94 V2
    Material (Seal): NBR Seal and EPDM O-Ring





Quick Links

Black
M20 x 1.5
5.0
9.0
9.0
90.0
24.0

In stock

600

£1.12 Excl VAT
Unit Price: £1.1200 £1.34 Inc VAT
Unit Price: £1.3440

Qty
Minimum Order Qty 1
Increments 1

Product Wishlist & Compare Placeholder

Delivery available from £8.50

Available to select at checkout.



Quick Links




Cable gland with bend protection, polyamide


  • Standard Metric range of nylon cable glands
  • GripLoc Seal® - Superior Ingress Protection, mechanical grip and cable retention.
  • Vibration-Lock - Suitable for high vibration environments.


    Standards: EN 50262
    Protection: IP68 10 bar (150 PSI)
    Temperature Range: -40°C to 100°C (static)
    Material (Gland): PA (Nylon) UL 94 V2
    Material (Seal): NBR Seal and EPDM O-Ring





Information

Colour: Black

Entry Thread Size: M20 x 1.5

Cable OD Range Min (B): 5.0

Cable OD Range Max (B): 9.0

Entry Thread Length (L1): 9.0

Gland Length (L2): 90.0

A/F: 24.0

Accessories

You might also need the following;

Explore Remora’s extensive range of cable gland accessories, including locknuts, earth tags, sealing washers, serrated lock washers, shrouds, earth locknuts, reducers, adaptors, stopping plugs, and breather drain plugs. Everything needed for secure, compliant cable gland installations.

Questions & Answers

Single and double compression cable glands differ in their sealing and clamping mechanisms:

Single Compression Glands: These glands provide compression around the outer sheath of the cable, offering basic sealing and strain relief. They are suitable for indoor/outdoor applications where environmental conditions are controlled.

Double Compression Glands: These glands provide compression at both the outer sheath and the inner bedding layer of the cable. This dual compression offers enhanced sealing and strain relief, making them ideal for outdoor or hazardous environments where additional protection is required.

Yes - Specific types of cable glands are designed for use in hazardous area environments. These glands are constructed to prevent the ingress of flammable gases or dust and are often certified to standards such as ATEX or IECEx, ensuring safety in explosive atmospheres. See CCG Hazardous Area Glands for our full range.

When installing Cable Glands using plain holes and locknuts, the recommended clearance of +0.2 mm above the nominal thread diameter. For example, an M20 gland should be mounted in a 20.2 mm diameter hole. The maximum recommended clearance is +0.7 mm. This ensures a secure fit while allowing easy installation.
