SKU: GripLoc-SR-M12-G

GRIPLOC-SR-M12-G - M12 IP68 Metric Strain Relief Gland + L/N - Grey

SKU: GripLoc-SR-M12-G

GRIPLOC-SR-M12-G - M12 IP68 Metric Strain Relief Gland + L/N - Grey

GripLoc® Nylon Bend Protection Cable Gland gland is built for applications where cables are subject to constant movement, bending or strain. The integrated pigtail sleeve acts as a flexible guide, supporting the cable and helping prevent sharp bends at the point of entry. That extra protection makes it ideal for dynamic installs where regular glands might not hold up.

Made from flame-retardant PA6 nylon, it offers IP69K and IP68 sealing against dust and water. Vibration-Lock helps keep it tight over time. Friction Splines give you control during install, without slipping or over-tightening.

The Ridge-and-Groove structure adds stability under tension and improves strain relief. With a wide clamping range, you can cover multiple cable sizes using fewer part variations. It fits well in panels, machinery, robotics and outdoor gear where motion and reliability go hand in hand.



Key Features

  • Pigtail sleeve reduces cable strain and sharp bends
  • IP68 seal guards against water and dust
  • Ridge-and-Groove structure supports cable under load
  • Flame-retardant PA6 nylon construction
  • Wide clamping range reduces part count
  • Supplied with O-ring seal and locknuts



Technical Details

Standards: EN 50262
Protection: IP68 10 bar (150 PSI)
Temperature Range: -40°C to 100°C (static)
Material (Gland): PA (Nylon) UL 94 V2
Material (Seal): NBR Seal and EPDM O-Ring



Quick Links

Grey
M12 x 1.5
2.0
5.0
8.0
54.0
15.0

Out of Stock - Back Order

0

£1.24 Excl VAT
Unit Price: £1.2400 £1.49 Inc VAT
Unit Price: £1.4880

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty
Minimum Order Qty 1
Increments 1

Product Wishlist & Compare Placeholder

Delivery available from £8.50

Available to select at checkout.



Quick Links




GripLoc® Nylon Bend Protection Cable Gland gland is built for applications where cables are subject to constant movement, bending or strain. The integrated pigtail sleeve acts as a flexible guide, supporting the cable and helping prevent sharp bends at the point of entry. That extra protection makes it ideal for dynamic installs where regular glands might not hold up.

Made from flame-retardant PA6 nylon, it offers IP69K and IP68 sealing against dust and water. Vibration-Lock helps keep it tight over time. Friction Splines give you control during install, without slipping or over-tightening.

The Ridge-and-Groove structure adds stability under tension and improves strain relief. With a wide clamping range, you can cover multiple cable sizes using fewer part variations. It fits well in panels, machinery, robotics and outdoor gear where motion and reliability go hand in hand.



Key Features

  • Pigtail sleeve reduces cable strain and sharp bends
  • IP68 seal guards against water and dust
  • Ridge-and-Groove structure supports cable under load
  • Flame-retardant PA6 nylon construction
  • Wide clamping range reduces part count
  • Supplied with O-ring seal and locknuts



Technical Details

Standards: EN 50262
Protection: IP68 10 bar (150 PSI)
Temperature Range: -40°C to 100°C (static)
Material (Gland): PA (Nylon) UL 94 V2
Material (Seal): NBR Seal and EPDM O-Ring

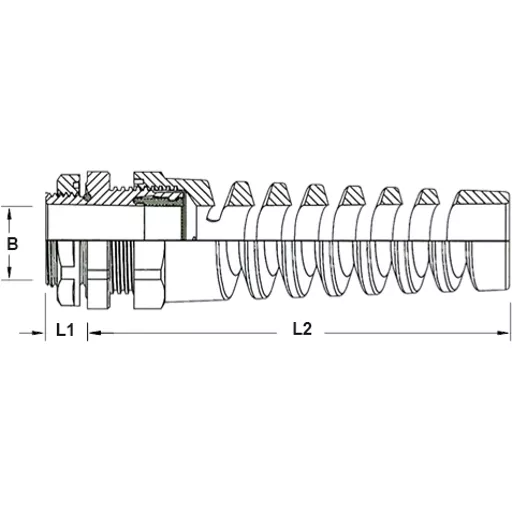

Information

Colour: Grey

Entry Thread Size: M12 x 1.5

Cable OD Range Min (B): 2.0

Cable OD Range Max (B): 5.0

Entry Thread Length (L1): 8.0

Gland Length (L2): 54.0

A/F: 15.0

Accessories

You might also need the following;

Explore Remora’s extensive range of cable gland accessories, including locknuts, earth tags, sealing washers, serrated lock washers, shrouds, earth locknuts, reducers, adaptors, stopping plugs, and breather drain plugs. Everything needed for secure, compliant cable gland installations.

Questions & Answers

Single and double compression cable glands differ in their sealing and clamping mechanisms:

Single Compression Glands: These glands provide compression around the outer sheath of the cable, offering basic sealing and strain relief. They are suitable for indoor/outdoor applications where environmental conditions are controlled.

Double Compression Glands: These glands provide compression at both the outer sheath and the inner bedding layer of the cable. This dual compression offers enhanced sealing and strain relief, making them ideal for outdoor or hazardous environments where additional protection is required.

Yes - Specific types of cable glands are designed for use in hazardous area environments. These glands are constructed to prevent the ingress of flammable gases or dust and are often certified to standards such as ATEX or IECEx, ensuring safety in explosive atmospheres. See CCG Hazardous Area Glands for our full range.

When installing Cable Glands using plain holes and locknuts, the recommended clearance of +0.2 mm above the nominal thread diameter. For example, an M20 gland should be mounted in a 20.2 mm diameter hole. The maximum recommended clearance is +0.7 mm. This ensures a secure fit while allowing easy installation.
