SKU: FS+HD-110

FS+HD-110 - FiloSeal+HD 110mm Duct Seal - 40200174

SKU: FS+HD-110

FS+HD-110 - FiloSeal+HD 110mm Duct Seal - 40200174

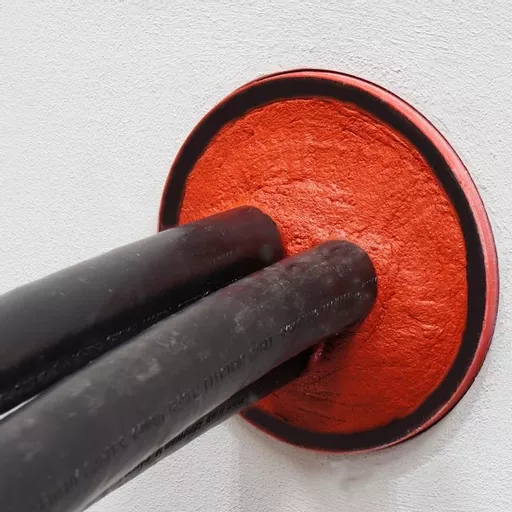

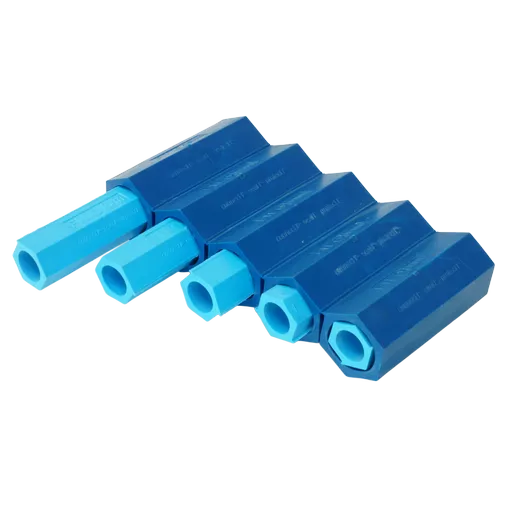

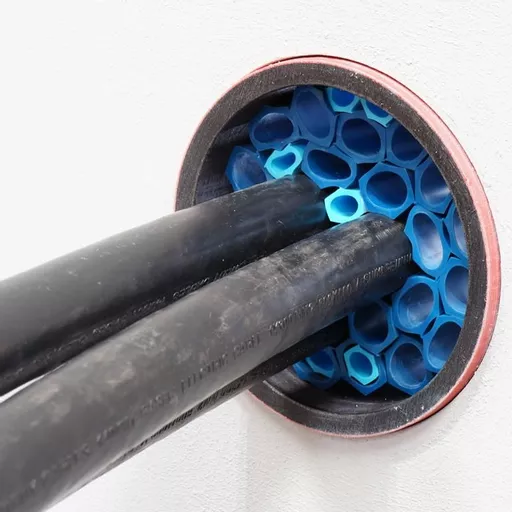

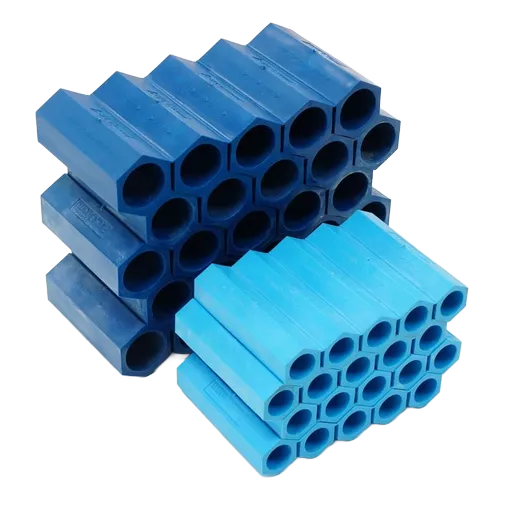

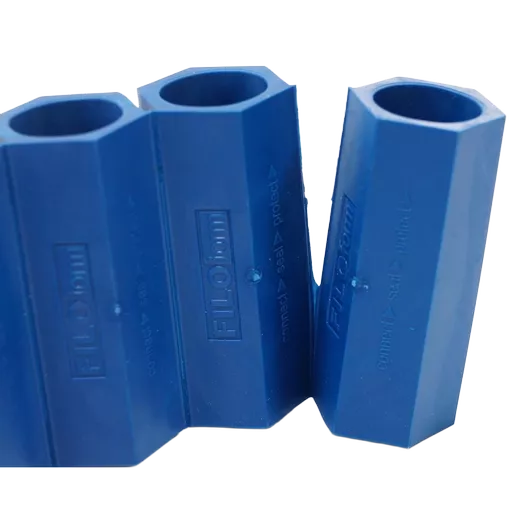

FiloSeal+HD is a high-performance duct sealing system designed for challenging cable and pipe installations. Its innovative honeycomb structure, created with flexible hexagonal support tubes, provides exceptional strength, separation, and stability inside the duct. This engineered design ensures reliable gas and watertight sealing while allowing easy re-entry for adding or removing cables as required.

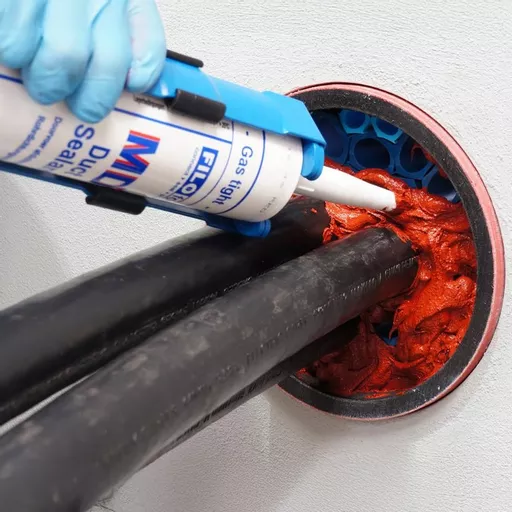

The system uses MD+, a one-component silicone-based sealant applied with a standard skeleton gun. Once cured, MD+ forms a durable elastomer that bonds and seals against water, gases, and chemicals, offering long-term protection. Resistant to termites, rats, hydrocarbons, hydrogen sulphide, and methane, FiloSeal+HD ensures durability in the harshest conditions.

Quick to install, non-corrosive, solvent-free, and compliant with NEC and WIMES standards, FiloSeal+HD is trusted worldwide for utility, telecom, and industrial projects. With over 25 years of proven performance, it delivers strong, adaptable sealing for any cable configuration or duct scenario.



Key Features

  • Max Duct Size 110mm
  • Flexible, one component, adhesive and sealing compound
  • High levels of Gas and Water tightness
  • Excellent adhesion, applicable to all common building materials
  • Resistant against Water, Alkaline, Chemical agents
  • Resistant to Rats
  • Resistant to Hydrogen Sulphide / Methane and many other Gases (NedLab)
  • Non corrosive
  • Solvent free
  • Non toxic, neutral and almost odourless
  • Complies with ATEX regulations
  • Suitable for any shaped duct / bore hole / opening
  • Seals all known materials, PVC & PE sheathed cables, PILC, (HD) PE pipes
  • Suitable for renovations, can be installed retrospective




Technical Data

Density: 1.2 gr/cm²
Pressure: up to 2 bar
Pulling Force: 100kg
Flow: <2mm ISO 7390
Colour: Red-Brown
Skin Over Time: +-15minutes
Curing Time: 3mm / 24 hours
Hardness: 30 shore A - DIN 53505
Elongation: 100% - DIN53504
Tensile Strength: 0.8 N/mm² - DIN53504
Operating Temp: +5°C to 40°C
Temperature Resistance: -40°C to 120°C

Quick Links

Duct Sealing System
Red/Brown
Max 110.0
Ø 80 Max
Upto 2 bar

In stock

8

£88.39 Excl VAT
Unit Price: £88.3900 £106.07 Inc VAT
Unit Price: £106.0680

Qty
Minimum Order Qty 1
Increments 1
Qty Price per item Savings
3 - 5 £83.97 5%
6 - 9 £81.32 8%
10 + £79.55 10%

Product Wishlist & Compare Placeholder

Delivery available from £8.50

Available to select at checkout.



Quick Links




FiloSeal+HD is a high-performance duct sealing system designed for challenging cable and pipe installations. Its innovative honeycomb structure, created with flexible hexagonal support tubes, provides exceptional strength, separation, and stability inside the duct. This engineered design ensures reliable gas and watertight sealing while allowing easy re-entry for adding or removing cables as required.
The system uses MD+, a one-component silicone-based sealant applied with a standard skeleton gun. Once cured, MD+ forms a durable elastomer that bonds and seals against water, gases, and chemicals, offering long-term protection. Resistant to termites, rats, hydrocarbons, hydrogen sulphide, and methane, FiloSeal+HD ensures durability in the harshest conditions.

Quick to install, non-corrosive, solvent-free, and compliant with NEC and WIMES standards, FiloSeal+HD is trusted worldwide for utility, telecom, and industrial projects. With over 25 years of proven performance, it delivers strong, adaptable sealing for any cable configuration or duct scenario.



Key Features

  • Max Duct Size 110mm
  • Flexible, one component, adhesive and sealing compound
  • High levels of Gas and Water tightness
  • Excellent adhesion, applicable to all common building materials
  • Resistant against Water, Alkaline, Chemical agents
  • Resistant to Rats
  • Resistant to Hydrogen Sulphide / Methane and many other Gases (NedLab)
  • Non corrosive
  • Solvent free
  • Non toxic, neutral and almost odourless
  • Complies with ATEX regulations
  • Suitable for any shaped duct / bore hole / opening
  • Seals all known materials, PVC & PE sheathed cables, PILC, (HD) PE pipes
  • Suitable for renovations, can be installed retrospective




Technical Data

Density: 1.2 gr/cm²
Pressure: up to 2 bar
Pulling Force: 100kg
Flow: <2mm ISO 7390
Colour: Red-Brown
Skin Over Time: +-15minutes
Curing Time: 3mm / 24 hours
Hardness: 30 shore A - DIN 53505
Elongation: 100% - DIN53504
Tensile Strength: 0.8 N/mm² - DIN53504
Operating Temp: +5°C to 40°C
Temperature Resistance: -40°C to 120°C

Information

Product Type: Duct Sealing System

Colour: Red/Brown

Max Duct Diameter mm: Max 110.0

Max Cable Diameter in Duct: Ø 80 Max

Pressure Resistance: Upto 2 bar
