SKU: PGPBW50sLS-UN

PGPBW50sLS-UN - M50s BW ArmaKit Industrial Grade Low Smoke (UBLN)


SKU: PGPBW50sLS-UN

PGPBW50sLS-UN - M50s BW ArmaKit Industrial Grade Low Smoke (UBLN)

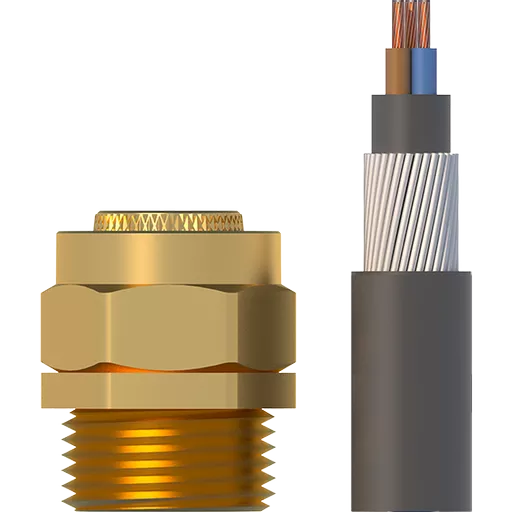

The ArmaKit® BW Low Smoke Cable Gland is a trusted brass gland kit made for safe and tidy terminations of Steel Wire Armoured (SWA) PVC and Low Smoke (LS) cables. This two-part cable gland is specially designed for indoor installations where minimal dust or moisture is present, making it a practical choice for control panels, distribution boards and general building wiring.

Unlike weatherproof types, the BW gland has no inner seal and therefore does not provide high ingress protection. Instead, it focuses on secure mechanical clamping and reliable earth continuity by gripping the cable armour against a low-resistance knurled cone inside the body. This means the cable stays firmly held, and your earthing connection stays safe and consistent.

ArmaKit® BW glands come complete with a low smoke shroud, earth tag and locknut for a neat, compliant finish. Made from quality brass, they stand up to corrosion and mechanical stress while helping to reduce harmful smoke in a fire situation.

When you need a straightforward, low smoke solution for indoor SWA terminations, ArmaKit BW is the cost cost-effective choice.



Key Features

  • For steel wire armoured cables in indoor installations
  • Low smoke design reduces harmful fumes during fire
  • Precision manufactured from high quality extrusion brass.
  • Simple two-part gland for quick secure termination
  • M20s-M32 2 glands, 2 locknuts, 2 earth tags, 2 LS shrouds
  • M40-M75 1 gland, 1 locknut, 1 earth tag, 1 LS shroud



Technical Details

Standards: EN 60529, BS 6121-1:2005
Protection: IP2X
Temperature Range: -70°C to 120°C
Material (Gland): Brass BS 2874 CZ121 Pb3
Material (Shroud): LS Polyvinyl-chloride

Quick Links

BW ArmaKit
Brass
M50 x 1.5
37.0
45.0
15.0
40.0
61.0
55.0
2.0
5
30

In stock

68

£10.93 Excl VAT
Unit Price: £10.9300 £13.12 Inc VAT
Unit Price: £13.1160

Qty
Minimum Order Qty 1
Increments 1

Product Wishlist & Compare Placeholder

Delivery available from £8.50

Available to select at checkout.



Quick Links




The ArmaKit® BW Low Smoke Cable Gland is a trusted brass gland kit made for safe and tidy terminations of Steel Wire Armoured (SWA) PVC and Low Smoke (LS) cables. This two-part cable gland is specially designed for indoor installations where minimal dust or moisture is present, making it a practical choice for control panels, distribution boards and general building wiring.

Unlike weatherproof types, the BW gland has no inner seal and therefore does not provide high ingress protection. Instead, it focuses on secure mechanical clamping and reliable earth continuity by gripping the cable armour against a low-resistance knurled cone inside the body. This means the cable stays firmly held, and your earthing connection stays safe and consistent.

ArmaKit® BW glands come complete with a low smoke shroud, earth tag and locknut for a neat, compliant finish. Made from quality brass, they stand up to corrosion and mechanical stress while helping to reduce harmful smoke in a fire situation.

When you need a straightforward, low smoke solution for indoor SWA terminations, ArmaKit BW is the cost cost-effective choice.



Key Features

  • For steel wire armoured cables in indoor installations
  • Low smoke design reduces harmful fumes during fire
  • Precision manufactured from high quality extrusion brass.
  • Simple two-part gland for quick secure termination
  • M20s-M32 2 glands, 2 locknuts, 2 earth tags, 2 LS shrouds
  • M40-M75 1 gland, 1 locknut, 1 earth tag, 1 LS shroud



Technical Details

Standards: EN 60529, BS 6121-1:2005
Protection: IP2X
Temperature Range: -70°C to 120°C
Material (Gland): Brass BS 2874 CZ121 Pb3
Material (Shroud): LS Polyvinyl-chloride

Information

Product Type: BW ArmaKit

Colour: Brass

Entry Thread Size: M50 x 1.5

Bedding OD Max (A): 37.0

Cable OD Range Max (B): 45.0

Entry Thread Length (L1): 15.0

Gland Length (L2): 40.0

A/C: 61.0

A/F: 55.0

Armour Dia Max (F): 2.0

Box Qty: 5

Carton Qty: 30

Accessories

You might also need the following;

Explore Remora’s extensive range of cable gland accessories, including locknuts, earth tags, sealing washers, serrated lock washers, shrouds, earth locknuts, reducers, adaptors, stopping plugs, and breather drain plugs. Everything needed for secure, compliant cable gland installations.

Questions & Answers

Single and double compression cable glands differ in their sealing and clamping mechanisms:

Single Compression Glands: These glands provide compression around the outer sheath of the cable, offering basic sealing and strain relief. They are suitable for indoor/outdoor applications where environmental conditions are controlled.

Double Compression Glands: These glands provide compression at both the outer sheath and the inner bedding layer of the cable. This dual compression offers enhanced sealing and strain relief, making them ideal for outdoor or hazardous environments where additional protection is required.

Yes - Specific types of cable glands are designed for use in hazardous area environments. These glands are constructed to prevent the ingress of flammable gases or dust and are often certified to standards such as ATEX or IECEx, ensuring safety in explosive atmospheres. See CCG Hazardous Area Glands for our full range.

When installing Cable Glands using plain holes and locknuts, the recommended clearance of +0.2 mm above the nominal thread diameter. For example, an M20 gland should be mounted in a 20.2 mm diameter hole. The maximum recommended clearance is +0.7 mm. This ensures a secure fit while allowing easy installation.
