SKU: 16-B

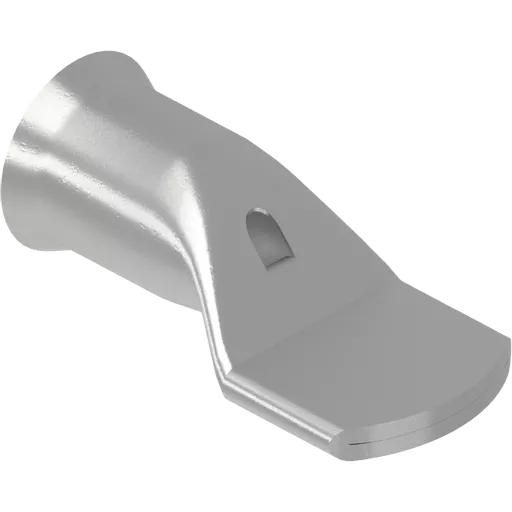

16-B - 16.0mm² Terminal Blank

SKU: 16-B

16-B - 16.0mm² Terminal Blank

Copper Blank Tube Lugs 600/1000V

Blank Palm Lugs allows the freedom for the user to customise the lug to any special requirements, relating to stud size, diameter and position.
Remora Blank Palm Lugs are manufactured from precision drawn seamless copper tube to BS EN 12449:1999.
All standard types in the range between 1.5mm² and 1000mm² have bell mouth entries to ensure ease of entry, even with flexible conductors.
All Copper Tube Lugs are tin plated to BS 1872 Part 2 for corrosion resistance and suitable for use up to 200°C.
Nickel plated lugs are available for high temperature applications up to 343°C.

Temperature Range: up to 200°C
Material: BS EN 12449:1999
Plating: Tin BS 1872 Part 2

Quick Links

16
Blank Lugs
Silver
42.0
5.6
8.0
18.0
5.5
1.3

In stock

521

£1.43 Excl VAT
Unit Price: £1.4300 £1.72 Inc VAT
Unit Price: £1.7160

Qty
Minimum Order Qty 1
Increments 1
Qty Price per item Savings
100 - 500 £1.36 5%
501 + £1.29 10%

Product Wishlist & Compare Placeholder

Delivery available from £8.50

Available to select at checkout.



Quick Links




Copper Blank Tube Lugs 600/1000V

Blank Palm Lugs allows the freedom for the user to customise the lug to any special requirements, relating to stud size, diameter and position.
Remora Blank Palm Lugs are manufactured from precision drawn seamless copper tube to BS EN 12449:1999.
All standard types in the range between 1.5mm² and 1000mm² have bell mouth entries to ensure ease of entry, even with flexible conductors.
All Copper Tube Lugs are tin plated to BS 1872 Part 2 for corrosion resistance and suitable for use up to 200°C.
Nickel plated lugs are available for high temperature applications up to 343°C.

Temperature Range: up to 200°C
Material: BS EN 12449:1999
Plating: Tin BS 1872 Part 2

Information

Cable Size mm²: 16

Product Type: Blank Lugs

Colour: Silver

Length (L2): 42.0

ID (A): 5.6

ID (B): 8.0

Palm Width (W): 18.0

Barrel Length (D): 5.5

Palm Thickness: 1.3

Accessories

You might also need the following;

Hand, hydraulic, and battery-powered crimping tools provide precise, reliable terminations for electrical work. Covering 1.5 to 630mm² lugs, options include ratchet hand tools, hydraulic sets, and advanced TorqTek battery models with OLED displays, strong crimping force, and efficient Li-Ion performance.

Questions & Answers

At the simplest level, a copper tube lugs are a connector made from high-conductivity copper. One end is a tube where you insert a stripped cable, and the other end is a flat palm (generally with a punched hole) that bolts onto a busbar, terminal block, or piece of equipment.

The purpose is straightforward: create a stable, low-resistance link between a cable and another component. But because electrical joints are often the weakest point in a circuit, the quality of the lug and the way it’s installed really matters.

Almost anywhere you need to terminate large cables securely:

  • Electrical distribution - connecting power cables to switchboards, transformers, and circuit breakers
  • Industrial machinery - securing motor leads and control gear
  • Automotive and marine - battery connections and heavy-duty wiring
  • Renewable energy systems - linking solar arrays, inverters, and storage batteries
  • In all these settings, the priorities are the same: safe current transfer, mechanical strength, and resistance to heat and corrosion.

Not all copper tube terminals are created equal. Choosing the right type depends on a few practical details:

  • Cable size and lug size - The lug must match the conductor size exactly to ensure a snug crimp. Undersized or oversized lugs compromise the connection.
  • Material quality - Look for lugs made from high-purity copper, often tin-plated to guard against oxidation and improve conductivity.
  • Palm design - Single-hole, two-hole, or offset hole types are available, depending on the mounting arrangement and space constraints.
  • Installation method – The right crimping tool is essential. A good-quality lug poorly crimped can fail faster than a cheaper one installed properly.
