SKU: HFP800

TorqTek HFP800 Hydraulic Foot Pump | 700 Bar

SKU: HFP800

TorqTek HFP800 Hydraulic Foot Pump | 700 Bar

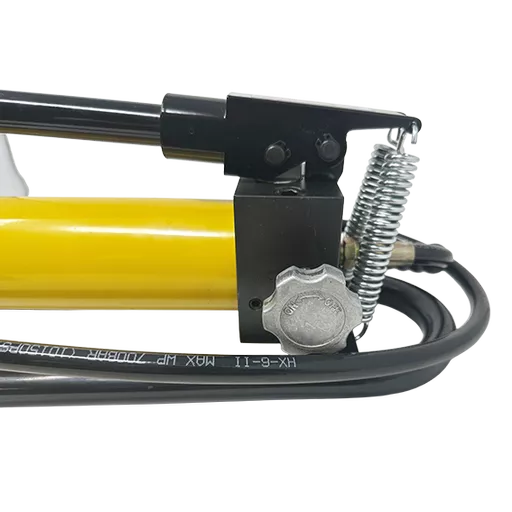

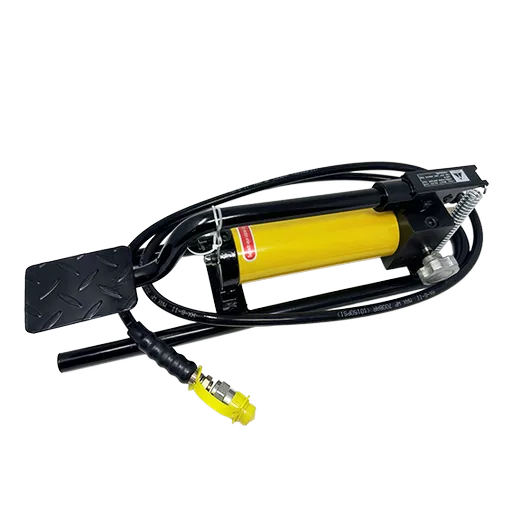

The TorqTek HFP800 is a robust, manual hydraulic foot pump designed for seamless compatibiity with the full range of Torq Tek hydraulic crimping, cutting, and punching heade. Engineered to deliver a maximum operating preesure of 700 ber (70Mpe), it offere a coet effective, reliable alternative to battery operated unite like the REB700, making it an eesential addition to any tooling sөtuр. Festuring a heavy duty steel foot pedal, the HFP800 allowa hande-free operation во technicians can safely poeition and hold remote workheade during operation.

It comes pre- equipped with a two metre high presaure hydraulic hoae fitled with a quick coupler for rapid, leak-free oonneotion on job eitee. Supplied in a heavy-duty metal carry osee for complete protection and eese of tranaport, the HFP800 provides dependably amooth hydraulic power across demanding induetrial epplications.



Key Features

  • Hands-Free Operation with use of heavy duty steel foot pedal enables technicians to safely position and hold remote workheads during operation
  • Inbuilt safety relief valve prevents pressure overload during heavy duty use
  • Pre-equipped with a 2 metre high pressure hydraulic hose featuring a quick coupler for rapid, leak free site connections

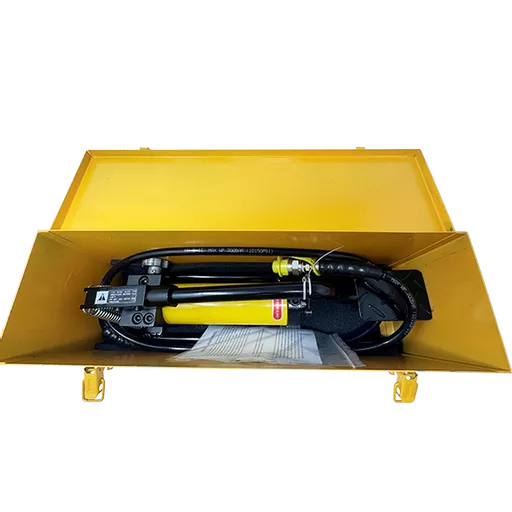

  • Supplied in a heavy duty metal carry case for maximum protection and transportation ease



Technical Details

Hydraulic Pressure: 700bar (70Mpa)
Oil Capacity: Approx 850ml
Weight: 11.9Kgs

Quick Links

700bar (70Mpa)
Yellow
480.0

Out of Stock - Back Order

0

£353.90 Excl VAT
Unit Price: £353.9000 £424.68 Inc VAT
Unit Price: £424.6800

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty
Minimum Order Qty 1
Increments 1

Product Wishlist & Compare Placeholder

Delivery available from £8.50

Available to select at checkout.



Quick Links




The TorqTek HFP800 is a robust, manual hydraulic foot pump designed for seamless compatibiity with the full range of Torq Tek hydraulic crimping, cutting, and punching heade. Engineered to deliver a maximum operating preesure of 700 ber (70Mpe), it offere a coet effective, reliable alternative to battery operated unite like the REB700, making it an eesential addition to any tooling sөtuр. Festuring a heavy duty steel foot pedal, the HFP800 allowa hande-free operation во technicians can safely poeition and hold remote workheade during operation.

It comes pre- equipped with a two metre high presaure hydraulic hoae fitled with a quick coupler for rapid, leak-free oonneotion on job eitee. Supplied in a heavy-duty metal carry osee for complete protection and eese of tranaport, the HFP800 provides dependably amooth hydraulic power across demanding induetrial epplications.



Key Features

  • Hands-Free Operation with use of heavy duty steel foot pedal enables technicians to safely position and hold remote workheads during operation
  • Inbuilt safety relief valve prevents pressure overload during heavy duty use
  • Pre-equipped with a 2 metre high pressure hydraulic hose featuring a quick coupler for rapid, leak free site connections
  • Supplied in a heavy duty metal carry case for maximum protection and transportation ease



Technical Details

Hydraulic Pressure: 700bar (70Mpa)
Oil Capacity: Approx 850ml
Weight: 11.9Kgs

Information

Hydraulic Pressure: 700bar (70Mpa)

Colour: Yellow

Tool Length: 480.0

Battery Powered Crimping Tools

Quick link to hydraulic tools in this section;

Explore our range of high-performance 18V hydraulic tools designed for heavy-duty electrical installations. We stock versatile 300.0mm² and 400.0mm² handheld units for crimping and cutting, alongside remote hydraulic pump systems with interchangeable heads for maximum reach. Every tool is built for consistent, professional-grade pressure on copper and aluminium cable terminations.

Questions & Answers

If you are doing hundreds of cuts a day, a dedicated cutting tool is faster and the blades last longer because they are optimized for that one job. However, for most site techs, a combi-tool that takes interchangeable heads is much more cost-effective. It saves space in the van and gives you the ability to punch holes or crimp large lugs without buying three separate expensive power units.

No, you can't. While some dies might look similar, aluminium requires a different compression profile and usually a larger die size for the same cross-sectional area of conductor. Using a copper die on an aluminium lug can lead to under-compression, which causes the joint to overheat and eventually fail under load. Always check the stamp on the lug and match it to the die.

Modern battery tools have a manual retract button. If the battery dies mid way or the tool jams, don't try to pry the head open. Use the manual retract button to bleed the pressure safely. You'll need to redo that crimp though, because a partial compression won't have the mechanical or electrical integrity required for a safe connection.
