SKU: HCH-65

Hydraulic Cutting Head - Cutting Range 65mm² OD Cu/Ai Cable

SKU: HCH-65

Hydraulic Cutting Head - Cutting Range 65mm² OD Cu/Ai Cable

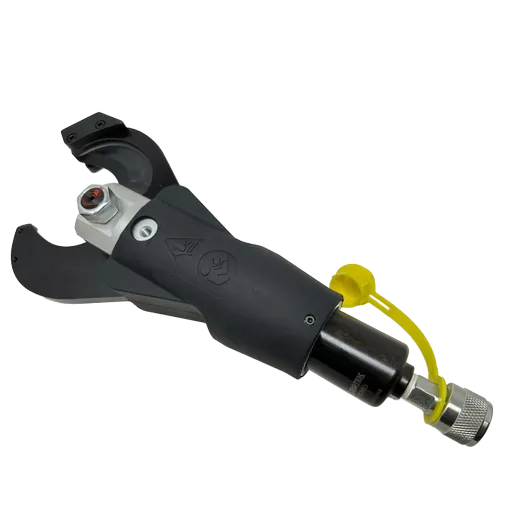

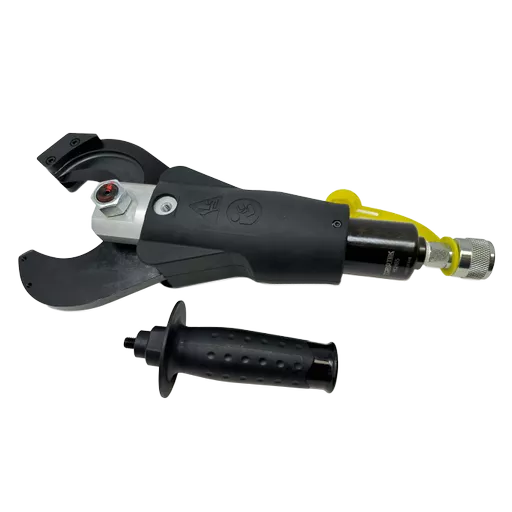

The TorqTek HCH-65 is a high-strength hydraulic cutting head manufactured from forged alloy steel, specifically engineered to cut copper, aluminium, and telecommunication cables. Featuring an opening C-type jaw, the head allows for easy access to running cables, while the integrated handle ensures comfortable and precise positioning. The design includes a specialised guide pad feature to prevent blade distortion during the cutting process, ensuring a clean and reliable cut every time.

Delivering a 60kN cutting force, the HCH-65 accommodates a maximum overall diameter of 65mm. It comes equipped with a hydraulic quick coupler for seamless integration with hydraulic foot pumps or battery operated units, including the TorqTek REB700. Built for durability and ease of use, this tool provides a professional solution for high-capacity cable management in demanding environments.



Key Features

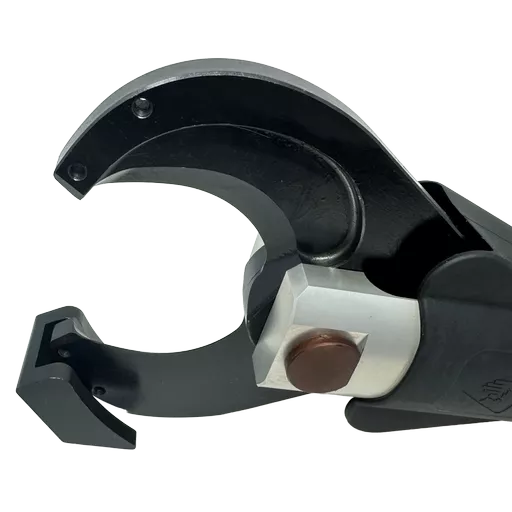

  • Opening Jaw C Type Cutting Head
  • Cutting Range Copper / Aluminium up to Ø65mm
  • Guide Pad Feature
  • Supplied with Hydraulic Quick Coupler

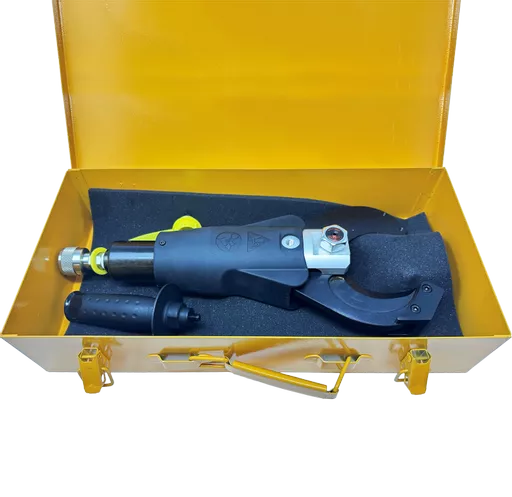

  • Supplied with a full die set and carry case
  • Ideal for industrial, utility and onsite applications



Technical Details


Cutting Range: Cu/Al Ø65mm
Cutting Force: 60kN
Rated Pressure: 63MPa
Retraction Mode: Piston Retraction
Weight: 3.7Kgs


Quick Links

Black
380.0
Ø65mm.

In stock

1

£315.68 Excl VAT
Unit Price: £315.6800 £315.68 Inc VAT
Unit Price: £315.6800

Qty
Minimum Order Qty 1
Increments 1

Product Wishlist & Compare Placeholder

Delivery available from £8.50

Available to select at checkout.



Quick Links





The TorqTek HCH-65 is a high-strength hydraulic cutting head manufactured from forged alloy steel, specifically engineered to cut copper, aluminium, and telecommunication cables. Featuring an opening C-type jaw, the head allows for easy access to running cables, while the integrated handle ensures comfortable and precise positioning. The design includes a specialised guide pad feature to prevent blade distortion during the cutting process, ensuring a clean and reliable cut every time.

Delivering a 60kN cutting force, the HCH-65 accommodates a maximum overall diameter of 65mm. It comes equipped with a hydraulic quick coupler for seamless integration with hydraulic foot pumps or battery operated units, including the TorqTek REB700. Built for durability and ease of use, this tool provides a professional solution for high-capacity cable management in demanding environments.



Key Features

  • Opening Jaw C Type Cutting Head
  • Cutting Range Copper / Aluminium up to Ø65mm
  • Guide Pad Feature
  • Supplied with Hydraulic Quick Coupler
  • Supplied with a full die set and carry case
  • Ideal for industrial, utility and onsite applications



Technical Details


Cutting Range: Cu/Al Ø65mm
Cutting Force: 60kN
Rated Pressure: 63MPa
Retraction Mode: Piston Retraction
Weight: 3.7Kgs


Information

Colour: Black

Tool Length: 380.0

Cutting Capacity (mm²): Ø65mm.

Battery Powered Crimping Tools

Quick link to hydraulic tools in this section;

Explore our range of high-performance 18V hydraulic tools designed for heavy-duty electrical installations. We stock versatile 300.0mm² and 400.0mm² handheld units for crimping and cutting, alongside remote hydraulic pump systems with interchangeable heads for maximum reach. Every tool is built for consistent, professional-grade pressure on copper and aluminium cable terminations.

Questions & Answers

If you are doing hundreds of cuts a day, a dedicated cutting tool is faster and the blades last longer because they are optimized for that one job. However, for most site techs, a combi-tool that takes interchangeable heads is much more cost-effective. It saves space in the van and gives you the ability to punch holes or crimp large lugs without buying three separate expensive power units.

No, you can't. While some dies might look similar, aluminium requires a different compression profile and usually a larger die size for the same cross-sectional area of conductor. Using a copper die on an aluminium lug can lead to under-compression, which causes the joint to overheat and eventually fail under load. Always check the stamp on the lug and match it to the die.

Modern battery tools have a manual retract button. If the battery dies mid way or the tool jams, don't try to pry the head open. Use the manual retract button to bleed the pressure safely. You'll need to redo that crimp though, because a partial compression won't have the mechanical or electrical integrity required for a safe connection.
