SKU: TORQHEX-B-10-120

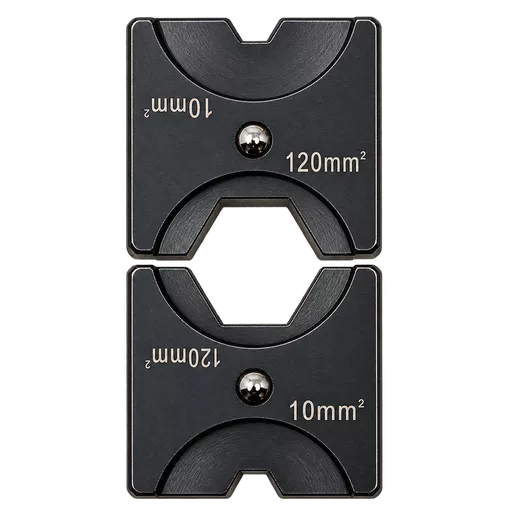

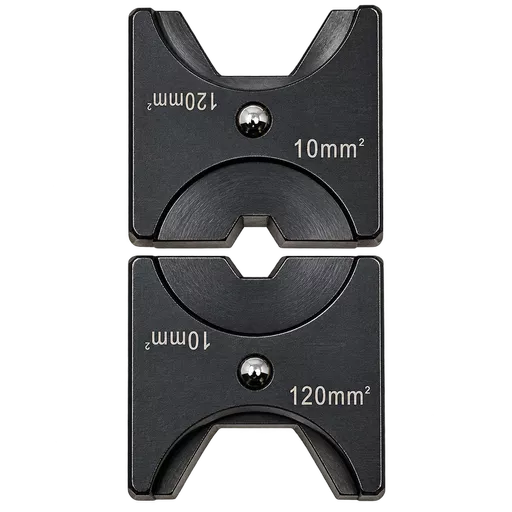

TorqTek Hexagon 'B' Crimp Die - 10 & 120mm2

SKU: TORQHEX-B-10-120

TorqTek Hexagon 'B' Crimp Die - 10 & 120mm2

TorqTek TORQHEX-B Twin-Cavity Hexagon Crimp Dies offer a versatile, space saving solution for professional cable crimping applications covering conductor sizes from 10.0mm² up to 150.0mm². Designed with two distinct crimping sizes integrated into a single die block, five die pairs cover a total of nine standard cable sizes, significantly reducing the number of individual dies needed in your toolkit.

Engineered to form precise hexagonal crimps on heavy duty cable lugs and connectors, simply fit the die into the tool head with the required conductor size facing the barrel. Each die set is supplied as a matched upper and lower pair, precision crafted to ensure consistent mechanical strength and electrical conductivity across all jointing applications.



Key Features

  • Dual-Cavity Design: Combines two conductor sizes in a single die block, providing maximum coverage with fewer dies to store and transport.
  • High Efficiency Range: Just 5 die pairs cover 9 popular conductor sizes from 10mm² to 150mm².
  • Reversible Operation: Simply position the die with your required cable size facing the connector barrel before crimping.
  • Precision Hexagonal Crimp: Ensures full compression and compliant joint integrity on heavy-duty copper and aluminium lugs.
  • Matched & Size-Stamped Pairs: Supplied as factory-matched pairs stamped with conductor size markings on both halves for quick identification.




Technical Details

Applications: TorqTek Hexagon Crimp Dies – Series B
Crimp Profile: Hexagonal (Twin-Cavity)
Available Twin-Cavity Die Configurations (5 Pairs / 9 Sizes): 10/120, 16,95, 25/70, 35/50, and 150mm2
Tool Compatibility (Series B Specific): RHT150(Hand Hydraulic )

Quick Links

Out of Stock - Back Order

0

£24.75 Excl VAT
Unit Price: £24.7500 £29.70 Inc VAT
Unit Price: £29.7000

Minimum Order Qty 1
Increments 1

Product Wishlist & Compare Placeholder

Delivery available from £8.50

Available to select at checkout.



Quick Links




TorqTek TORQHEX-B Twin-Cavity Hexagon Crimp Dies offer a versatile, space saving solution for professional cable crimping applications covering conductor sizes from 10.0mm² up to 150.0mm². Designed with two distinct crimping sizes integrated into a single die block, five die pairs cover a total of nine standard cable sizes, significantly reducing the number of individual dies needed in your toolkit.

Engineered to form precise hexagonal crimps on heavy duty cable lugs and connectors, simply fit the die into the tool head with the required conductor size facing the barrel. Each die set is supplied as a matched upper and lower pair, precision crafted to ensure consistent mechanical strength and electrical conductivity across all jointing applications.



Key Features

  • Dual-Cavity Design: Combines two conductor sizes in a single die block, providing maximum coverage with fewer dies to store and transport.
  • High Efficiency Range: Just 5 die pairs cover 9 popular conductor sizes from 10mm² to 150mm².
  • Reversible Operation: Simply position the die with your required cable size facing the connector barrel before crimping.
  • Precision Hexagonal Crimp: Ensures full compression and compliant joint integrity on heavy-duty copper and aluminium lugs.
  • Matched & Size-Stamped Pairs: Supplied as factory-matched pairs stamped with conductor size markings on both halves for quick identification.




Technical Details

Applications: TorqTek Hexagon Crimp Dies – Series B
Crimp Profile: Hexagonal (Twin-Cavity)
Available Twin-Cavity Die Configurations (5 Pairs / 9 Sizes): 10/120, 16,95, 25/70, 35/50, and 150mm2
Tool Compatibility (Series B Specific): RHT150(Hand Hydraulic )
