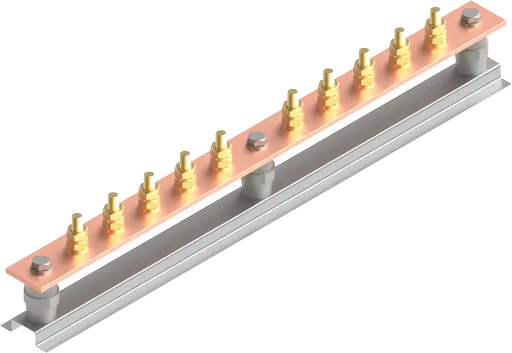

EB10 - 10 Way Earth Bar

SKU: EB10

EB10 - 10 Way Earth Bar

Remora Earth Bars Without Link provide a reliable solution for creating a common earthing point in electrical systems. Each bar is precision manufactured from high-conductivity 50x6mm hard drawn copper for optimal performance, in compliance with IEC 62305 standards. Earth point is spaced at 50mm centres allowing larger sector lugs to be fixed with interference. Supplied with robust brass stud assemblies, the bar is mounted on a pre-drilled mild steel galvanised channel base for straightforward installation. Ideal for use in industrial switchgear, panel boards, or lightning protection systems where a solid earthing connection is critical. Remora Earth Bars are also available in custom configurations including various lengths, with & without disconnection links, stud sizes, multiple bars, tin plated or stainless steel options.

Earth Bar Illustration

50 x 6mm Copper Bar HDHC Copper Bar
M10 x 36mm Insulator Glass Reinforced Polyester
64 x 15mm Base Galvanised Steel
M10 Hex Bolt/Nut/Washer Brass
M10 Hex Bolt/Nut/Washer BZP Mild Steel

Key Features

50x6mm high conductivity hard drawn copper
Earth points spaced at 50mm centres
Complies with IEC 62305 earthing standards
Supplied with brass stud assemblies
Mounted on pre-drilled mild steel galvanised base
Ideal for LV systems, switchgear, and panels
Tinned & Custom Configurations available on request

Technical Details

Bar Material: C101 99.9% Copper BS EN 13601:2013 / BS EN 12167:2011
Fasteners: M10x 40mm Brass CZ121 / BS 3643-1:2007
Base: Galvanised Steel Channel
Compliance: IEC 62305 / BS EN 62561-1:2012 / BS EN 7430
Copper Bar Current Rating: 500 Amp
