SKU: RXT32LS

RXT32LS - M32 RXT Low Smoke Cable Gland Kit x2

SKU: RXT32LS

RXT32LS - M32 RXT Low Smoke Cable Gland Kit x2

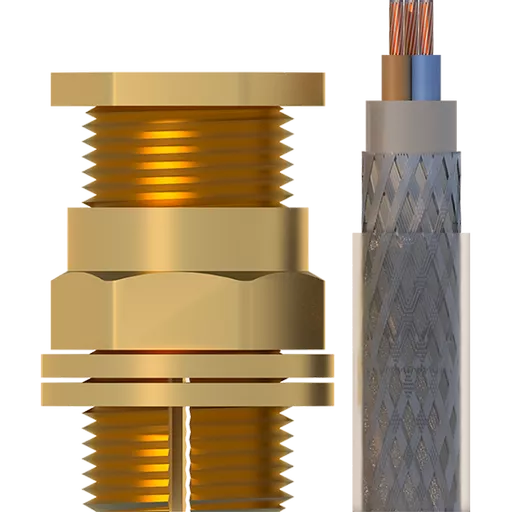

The ArmaKit® RXT Cable Gland Kit is a reliable two-part brass gland designed for quick, secure terminations of screened flexible wire braid or wire braid armoured cables. Built to handle indoor and outdoor environments, the RXT gland includes an integral polychloroprene seal that keeps out water and dust with confidence.

This tough seal holds its shape thanks to an internal brass washer that prevents distortion when the gland is tightened. The result is a consistent, dependable seal every time. Precision machined from high quality extruded brass, the ArmaKit® RXT gives you a tidy, solid termination with robust cable retention and earth continuity through the wire braid.

Each kit is supplied complete with low smoke shroud, earth tag and locknut for a neat, compliant finish that makes installation straightforward and hassle free.




Key Features

  • Two-part brass gland for screened braid cables
  • Polychloroprene seal keeps out water and dust
  • Precision manufactured from high quality extrusion brass.
  • For indoor or outdoor installations
  • Complete with earth tag, locknut and low smoke shroud
  • All kits M20s-M32 2 glands, 2 locknuts, 2 earth tags, 2 LS shrouds




Technical Details

Standards: EN 60529, EN 50262
Protection: IP54 IP66 (If fitted with sealing washer)
Temperature Range: -20°C to 80°C
Material (Gland): Brass BS 2874 CZ121 Pb3
Material (Seal): Polychloroprene
Material (Shroud): LS Polyvinyl-chloride



Quick Links

RXT ArmaKit
Brass
M32 x 1.5
18.5
26.3
15.0
41.0
45.6
41.0
5.0
30.0

In stock

9

£13.58 Excl VAT
Unit Price: £13.5800 £16.30 Inc VAT
Unit Price: £16.2960

Qty
Minimum Order Qty 1
Increments 1

Product Wishlist & Compare Placeholder

Delivery available from £8.50

Available to select at checkout.



Quick Links




The ArmaKit® RXT Cable Gland Kit is a reliable two-part brass gland designed for quick, secure terminations of screened flexible wire braid or wire braid armoured cables. Built to handle indoor and outdoor environments, the RXT gland includes an integral polychloroprene seal that keeps out water and dust with confidence.

This tough seal holds its shape thanks to an internal brass washer that prevents distortion when the gland is tightened. The result is a consistent, dependable seal every time. Precision machined from high quality extruded brass, the ArmaKit® RXT gives you a tidy, solid termination with robust cable retention and earth continuity through the wire braid.

Each kit is supplied complete with low smoke shroud, earth tag and locknut for a neat, compliant finish that makes installation straightforward and hassle free.




Key Features

  • Two-part brass gland for screened braid cables
  • Polychloroprene seal keeps out water and dust
  • Precision manufactured from high quality extrusion brass.
  • For indoor or outdoor installations
  • Complete with earth tag, locknut and low smoke shroud
  • All kits M20s-M32 2 glands, 2 locknuts, 2 earth tags, 2 LS shrouds




Technical Details

Standards: EN 60529, EN 50262
Protection: IP54 IP66 (If fitted with sealing washer)
Temperature Range: -20°C to 80°C
Material (Gland): Brass BS 2874 CZ121 Pb3
Material (Seal): Polychloroprene
Material (Shroud): LS Polyvinyl-chloride



Information

Product Type: RXT ArmaKit

Colour: Brass

Entry Thread Size: M32 x 1.5

Cable OD Range Min (B): 18.5

Cable OD Range Max (B): 26.3

Entry Thread Length (L1): 15.0

Gland Length (L2): 41.0

A/C: 45.6

A/F: 41.0

Box Qty: 5.0

Carton Qty: 30.0

Accessories

You might also need the following;

Explore Remora’s extensive range of cable gland accessories, including locknuts, earth tags, sealing washers, serrated lock washers, shrouds, earth locknuts, reducers, adaptors, stopping plugs, and breather drain plugs. Everything needed for secure, compliant cable gland installations.

Questions & Answers

Single and double compression cable glands differ in their sealing and clamping mechanisms:

Single Compression Glands: These glands provide compression around the outer sheath of the cable, offering basic sealing and strain relief. They are suitable for indoor/outdoor applications where environmental conditions are controlled.

Double Compression Glands: These glands provide compression at both the outer sheath and the inner bedding layer of the cable. This dual compression offers enhanced sealing and strain relief, making them ideal for outdoor or hazardous environments where additional protection is required.

Yes - Specific types of cable glands are designed for use in hazardous area environments. These glands are constructed to prevent the ingress of flammable gases or dust and are often certified to standards such as ATEX or IECEx, ensuring safety in explosive atmospheres. See CCG Hazardous Area Glands for our full range.

When installing Cable Glands using plain holes and locknuts, the recommended clearance of +0.2 mm above the nominal thread diameter. For example, an M20 gland should be mounted in a 20.2 mm diameter hole. The maximum recommended clearance is +0.7 mm. This ensures a secure fit while allowing easy installation.
