SKU: RCB16+C

RCB16+C - LV Branch Resin Joints cables 1.5-16mm OD - 40200597

SKU: RCB16+C

RCB16+C - LV Branch Resin Joints cables 1.5-16mm OD - 40200597

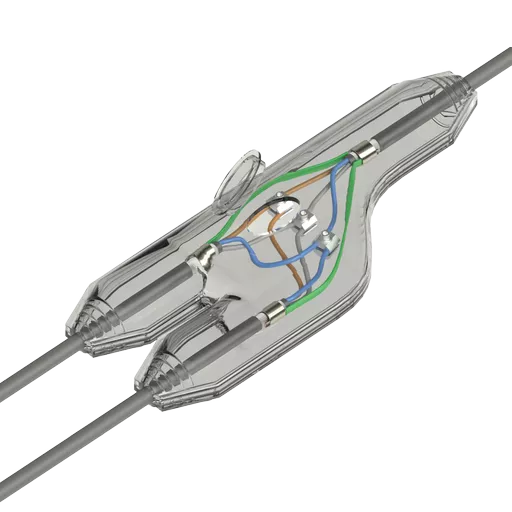

RCB+ Resin Branch Joints provide a fast, safe, and dependable solution for branching 600/1000V cables. Designed for stranded copper and solid aluminium conductors up to 6mm², they are suitable for Steel Wire Armoured (SWA), Aluminium Strip/Wire Armoured, and unarmoured cables with PVC, XLPE, or EPR insulation.
Each branch joint features a robust snap-lock shell and a two-part hydrolysis-resistant polyurethane resin for clean, secure installation. Supplied mechanical connectors eliminate the need for crimp tools, ensuring straightforward on-site use. For SWA and armoured cables, earth bonding is managed with the included tinned copper earth braid and constant force springs, delivering safe and compliant armour earthing.
Purpose-built to UK armoured cable standards, RCB+ Branch Joints offer ample space for easy handling, secure terminations, and reliable branching connections. Fully tested to DIN EN 50393:2006-11, these joints provide long-term moisture resistance, electrical integrity, and mechanical strength for industrial, commercial, and utility networks.



Key Features

  • Branch joint design for armoured and unarmoured 600/1000V cables
  • Compatible with copper and aluminium conductors up to 6mm²
  • Snap-lock shell with quick, easy-pour resin system
  • Supplied wh braid & constant force springs for safe bonding
  • Tested to DIN EN 50393:2006-11 for performance & reliabilityith mechanical connectors – no crimping required
  • Includes earth braid & constant force springs for safe bonding
  • Tested to DIN EN 50393:2006-11 for performance & reliability



Technical Details

Material: Hydrolysis resistant polyurethane resin
Voltage: 600/1000 Volts (3.3kV with upgrade)
Temperature Range: -10° to 120°
Standards: DIN EN 50393:2006-11 (VDE 0278-393)



Quick Links

Branch Joint
6.0 - 16.0
9.0 - 25.0
335.0
120.0
Injection Mould
1270.0

In stock

2

£54.83 Excl VAT
Unit Price: £54.8300 £65.80 Inc VAT
Unit Price: £65.7960

Qty
Minimum Order Qty 1
Increments 1
Qty Price per item Savings
3 - 7 £52.09 5%
8 + £50.44 8%

Product Wishlist & Compare Placeholder

Delivery available from £8.50

Available to select at checkout.



Quick Links




RCB+ Resin Branch Joints provide a fast, safe, and dependable solution for branching 600/1000V cables. Designed for stranded copper and solid aluminium conductors up to 6mm², they are suitable for Steel Wire Armoured (SWA), Aluminium Strip/Wire Armoured, and unarmoured cables with PVC, XLPE, or EPR insulation.
Each branch joint features a robust snap-lock shell and a two-part hydrolysis-resistant polyurethane resin for clean, secure installation. Supplied mechanical connectors eliminate the need for crimp tools, ensuring straightforward on-site use. For SWA and armoured cables, earth bonding is managed with the included tinned copper earth braid and constant force springs, delivering safe and compliant armour earthing.
Purpose-built to UK armoured cable standards, RCB+ Branch Joints offer ample space for easy handling, secure terminations, and reliable branching connections. Fully tested to DIN EN 50393:2006-11, these joints provide long-term moisture resistance, electrical integrity, and mechanical strength for industrial, commercial, and utility networks.



Key Features

  • Branch joint design for armoured and unarmoured 600/1000V cables
  • Compatible with copper and aluminium conductors up to 6mm²
  • Snap-lock shell with quick, easy-pour resin system
  • Supplied wh braid & constant force springs for safe bonding
  • Tested to DIN EN 50393:2006-11 for performance & reliabilityith mechanical connectors – no crimping required
  • Includes earth braid & constant force springs for safe bonding
  • Tested to DIN EN 50393:2006-11 for performance & reliability



Technical Details

Material: Hydrolysis resistant polyurethane resin
Voltage: 600/1000 Volts (3.3kV with upgrade)
Temperature Range: -10° to 120°
Standards: DIN EN 50393:2006-11 (VDE 0278-393)



Information

Product Type: Branch Joint

Max Cable Size 2,3,4 Core (mm²): 6.0 - 16.0

Cable Entry Diameters: 9.0 - 25.0

Length (L2): 335.0

Width (W): 120.0

Shell Style: Injection Mould

Resin Content (ml): 1270.0

Accessories

You might also need the following;

Reliable resin cable joints with brass mechanical connectors, large range aluminium connectors, and two part jointing resin for durable, watertight connections. Ideal for SWA and multicore cables - fast installation, secure performance, long service life.

Questions & Answers

Yes - our resin joint kits maintain full earth continuity for SWA cables. Each kit includes an insulated copper braid and constant earth springs, which securely clamp onto the cable’s armour wires. This ensures a reliable, low-resistance connection between both cable ends before encapsulating with resin for long-term protection.

Yes - each joint kit includes four mechanical connectors, allowing easy termination of up to four-core cables. These connectors are designed for quick, secure installation without the need for any special crimping tools, making the jointing process faster and more convenient on-site.
