SKU: BR53

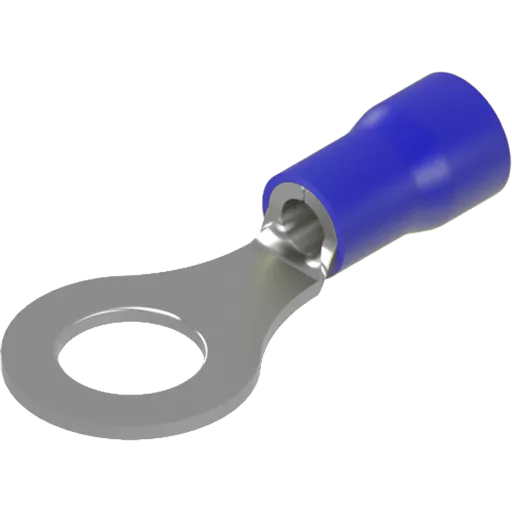

BR53 - 1.5-2.5mm² Ring Terminal - Blue - 5.3mm

SKU: BR53

BR53 - 1.5-2.5mm² Ring Terminal - Blue - 5.3mm


Ring Terminals are designed to connect a single wire to a screw or stud type electrical connection. The ring shape completely surrounds the screw or stud, creating a secure and reliable electrical contact. Manufactured with a copper conductor, tin plating, and vinyl insulation, these terminals offer excellent conductivity, corrosion resistance, and durability. They are rated for up to 600V and operate within a temperature range of -10°C to +75°C, making them suitable for a wide range of applications. Available in red, blue, and yellow colour-coded options, they support different current ratings: 19A for red, 27A for blue, and 48A for yellow. The flared barrel design allows for easy wire insertion and low insertion force while maintaining a secure crimped termination. Ring Terminals are widely used in industrial, automotive, and electrical installations where secure connections are essential for safety and long-term reliability.

Cost effective, easy to install, and built for long term performance, they are the go to choice for electricians, contractors, and maintenance engineers working across a wide range of wiring projects.




Key Features

  • Secure stud or screw wire connections
  • Copper body with tin plating for conductivity
  • Vinyl insulation with colour coded sizing
  • Flared barrel for easy insertion and crimping
  • Rated up to 600V and 48A
  • Quick, low-cost installation




Technical Details

Temperature Range: -10°C to 75°C
Material: Tin Plated Electrolytic Copper / Vinyl Insulation
Colour: Blue
Voltage: 600V
Standards: DIN 46288 Part 4

Quick Links

1.5-2.5
27A - Max
Pre-Ins Ring
Blue
11.8
21.8
2.3
8.5
5.4

In stock

2200

£3.00 Excl VAT
Unit Price: £0.0300 £3.60 Inc VAT
Unit Price: £0.0360

Qty
Minimum Order Qty 100
Increments 100
Qty Price per item Savings
500 - 2400 £0.03 3%
2500 - 4900 £0.03 5%
5000 + £0.03 10%

Product Wishlist & Compare Placeholder

Delivery available from £8.50

Available to select at checkout.



Quick Links





Ring Terminals are designed to connect a single wire to a screw or stud type electrical connection. The ring shape completely surrounds the screw or stud, creating a secure and reliable electrical contact. Manufactured with a copper conductor, tin plating, and vinyl insulation, these terminals offer excellent conductivity, corrosion resistance, and durability. They are rated for up to 600V and operate within a temperature range of -10°C to +75°C, making them suitable for a wide range of applications. Available in red, blue, and yellow colour-coded options, they support different current ratings: 19A for red, 27A for blue, and 48A for yellow. The flared barrel design allows for easy wire insertion and low insertion force while maintaining a secure crimped termination. Ring Terminals are widely used in industrial, automotive, and electrical installations where secure connections are essential for safety and long-term reliability.

Cost effective, easy to install, and built for long term performance, they are the go to choice for electricians, contractors, and maintenance engineers working across a wide range of wiring projects.




Key Features

  • Secure stud or screw wire connections
  • Copper body with tin plating for conductivity
  • Vinyl insulation with colour coded sizing
  • Flared barrel for easy insertion and crimping
  • Rated up to 600V and 48A
  • Quick, low-cost installation




Technical Details

Temperature Range: -10°C to 75°C
Material: Tin Plated Electrolytic Copper / Vinyl Insulation
Colour: Blue
Voltage: 600V
Standards: DIN 46288 Part 4

Information

Range mm²: 1.5-2.5

Amps: 27A - Max

Product Type: Pre-Ins Ring

Colour: Blue

Length (L1): 11.8

Length (L2): 21.8

ID (A): 2.3

Width (W): 8.5

ID (B): 5.4

Accessories

You might also need the following;

Discover Remora’s extensive and high-quality range of Pre-Insulated Terminals and connection accessories. Our stock covers all critical types for professional wiring, including Ring, Fork, Blade, and Pin Terminals, alongside Male and Female Spade, Piggy Back, Bullet, and Butt Terminals. For fast, reliable joining, we also offer Quick Splice and premium Heat Shrink Solder Sleeves. Looking for an all-in-one solution? Check out our Pre-Insulated Box Kits

Questions & Answers

You need to measure the diameter of the screw or bolt you are connecting to. Pre-insulated terminals are marked with the wire size and the stud size. You must match both numbers for the connection to be secure.

Yes, absolutely. That’s the entire point of the spade and bullet connectors. They are specifically designed
as quick disconnect terminals. However, if you keep plugging and unplugging them repeatedly, the
friction fit will eventually weaken, so keep an eye on how tight that connection feels after many uses.

Butt connectors are fully reversible; they don’t have a polarity. You insert the stripped end of the first wire
into one side and the stripped end of the second wire into the other side, meeting in the middle. The key
is to make two separate, secure crimps one on each wire to guarantee the splice is strong and reliable.
