SKU: BBU50

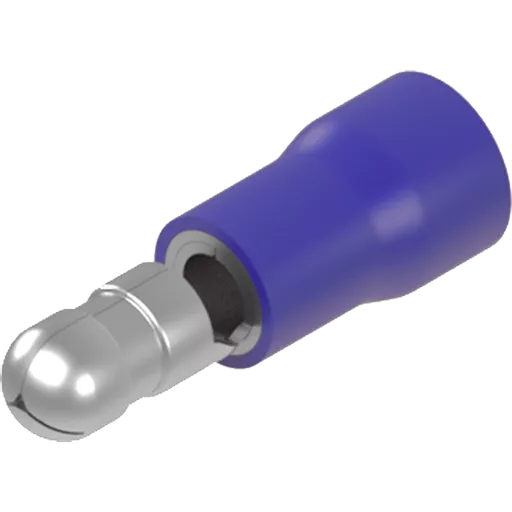

BBU50 - 1.5-2.5mm² Male Bullet Terminal - Blue - 10.5x5.0mm

SKU: BBU50

BBU50 - 1.5-2.5mm² Male Bullet Terminal - Blue - 10.5x5.0mm

Pre-insulated male bullet terminals are designed for quick, secure and reliable wire connections in both professional and DIY electrical applications. Their rounded bullet-shaped design fits neatly into female bullet connectors (RBR40 Red, BBR40 BBR50 Blue, YBR50 Yellow) creating a snug, vibration-resistant hold that ensures stable performance even in demanding environments.
Manufactured from high quality brass with a copper tubular sleeve and tin plating, these terminals deliver excellent conductivity and long-lasting corrosion resistance. The pre-applied vinyl insulation provides an additional layer of safety, protecting against heat, wear and accidental shorts.
Installation is simple with the flared barrel design, which allows easy wire insertion, while the low crimping force ensures a fast yet strong termination. Rated for up to 300V, they support a maximum current of 10A (Red), 15A (Blue) and 24A (Yellow), covering a wide range of cable sizes and applications.

Ideal for automotive, industrial, and general electrical wiring projects, these male bullet terminals offer durability, safety, and efficiency in one compact connector.



Key Features

  • Bullet shaped design for secure, vibration resistant fit
  • Easy crimping with flared barrel for smooth wire insertion
  • Pre-insulated with vinyl for heat and safety protection
  • Brass conductor with tin plating for conductivity and corrosion resistance
  • Rated up to 300V with multiple current capacities
  • Suitable for automotive, industrial, and general wiring applications



Technical Details

Temperature Range: -10°C to 75°C
Material: Tin Plated Electrolytic Copper / Vinyl Insulation
Voltage: 300V
Colour: Blue


Quick Links

1.5-2.5
27A - Max
Blue
10.7
21.0
2.3
5.0

In stock

300

£3.81 Excl VAT
Unit Price: £0.0381 £4.57 Inc VAT
Unit Price: £0.0457

Qty
Minimum Order Qty 100
Increments 100
Qty Price per item Savings
500 - 2400 £0.04 3%
2500 - 4900 £0.04 5%
5000 + £0.03 10%

Product Wishlist & Compare Placeholder

Delivery available from £8.50

Available to select at checkout.



Quick Links




Pre-insulated male bullet terminals are designed for quick, secure and reliable wire connections in both professional and DIY electrical applications. Their rounded bullet-shaped design fits neatly into female bullet connectors (RBR40 Red, BBR40 BBR50 Blue, YBR50 Yellow) creating a snug, vibration-resistant hold that ensures stable performance even in demanding environments.
Manufactured from high quality brass with a copper tubular sleeve and tin plating, these terminals deliver excellent conductivity and long-lasting corrosion resistance. The pre-applied vinyl insulation provides an additional layer of safety, protecting against heat, wear and accidental shorts.
Installation is simple with the flared barrel design, which allows easy wire insertion, while the low crimping force ensures a fast yet strong termination. Rated for up to 300V, they support a maximum current of 10A (Red), 15A (Blue) and 24A (Yellow), covering a wide range of cable sizes and applications.

Ideal for automotive, industrial, and general electrical wiring projects, these male bullet terminals offer durability, safety, and efficiency in one compact connector.



Key Features

  • Bullet shaped design for secure, vibration resistant fit
  • Easy crimping with flared barrel for smooth wire insertion
  • Pre-insulated with vinyl for heat and safety protection
  • Brass conductor with tin plating for conductivity and corrosion resistance
  • Rated up to 300V with multiple current capacities
  • Suitable for automotive, industrial, and general wiring applications



Technical Details

Temperature Range: -10°C to 75°C
Material: Tin Plated Electrolytic Copper / Vinyl Insulation
Voltage: 300V
Colour: Blue


Information

Range mm²: 1.5-2.5

Amps: 27A - Max

Colour: Blue

Length (L1): 10.7

Length (L2): 21.0

ID (A): 2.3

Width (W): 5.0

Accessories

You might also need the following;

Discover Remora’s extensive and high-quality range of Pre-Insulated Terminals and connection accessories. Our stock covers all critical types for professional wiring, including Ring, Fork, Blade, and Pin Terminals, alongside Male and Female Spade, Piggy Back, Bullet, and Butt Terminals. For fast, reliable joining, we also offer Quick Splice and premium Heat Shrink Solder Sleeves. Looking for an all-in-one solution? Check out our Pre-Insulated Box Kits

Questions & Answers

You need to measure the diameter of the screw or bolt you are connecting to. Pre-insulated terminals are marked with the wire size and the stud size. You must match both numbers for the connection to be secure.

Yes, absolutely. That’s the entire point of the spade and bullet connectors. They are specifically designed
as quick disconnect terminals. However, if you keep plugging and unplugging them repeatedly, the
friction fit will eventually weaken, so keep an eye on how tight that connection feels after many uses.

Butt connectors are fully reversible; they don’t have a polarity. You insert the stripped end of the first wire
into one side and the stripped end of the second wire into the other side, meeting in the middle. The key
is to make two separate, secure crimps one on each wire to guarantee the splice is strong and reliable.
