SKU: RFS28-5

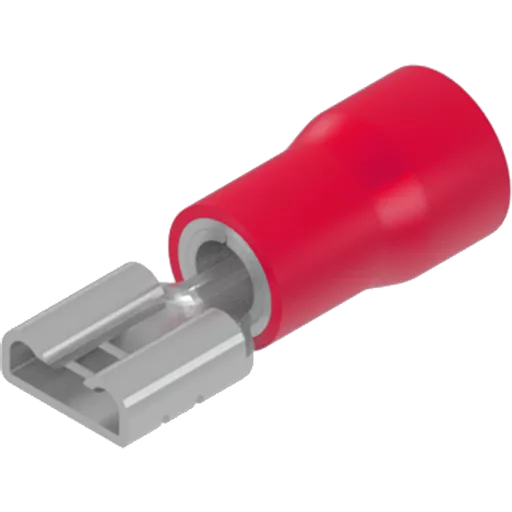

RFS28-5 - 0.5-1.5mm² Female Spade Terminal - Red - 3.2mm

SKU: RFS28-5

RFS28-5 - 0.5-1.5mm² Female Spade Terminal - Red - 3.2mm

Pre-insulated Female Spade Terminals are designed for quick, reliable electrical connections, making them ideal for professional and DIY electrical projects. The female spade design allows easy sliding over male blade terminals, creating a snug, secure connection. Constructed with a brass conductor, copper tubular sleeve, tin plating, and a durable vinyl insulation sleeve, these terminals provide long lasting performance and protection. The insulation helps prevent accidental shorts, heat damage, wear, ensuring safety and durability in various applications. Rated up to 300V, they accommodate current ratings of 10A (red), 15A (blue), and 24A (yellow). The flared barrel design allows easy wire insertion, reduces insertion force, and ensures consistent, vibration-resistant crimping. These terminals are ideal for automotive wiring, household appliances, control panels, and industrial setups requiring secure, efficient, and professional-grade electrical connections.



Key Features

  • Pre-insulated for added safety
  • Brass conductor with tin plating for durability
  • Vinyl insulation protects against heat and wear
  • Rated up to 300V with colour coded sizes
  • Flared barrel for easy wire insertion
  • Low insertion force with secure crimping
  • Quick, low-cost installation



Technical Details

Temperature Range: -10°C to 75°C
Material: Tin Plated Electrolytic Copper/Vinyl Insulation
Voltage: 300V
Colour: Red


Quick Links

0.5-1.5
19A - Max
Pre-Ins Female Spade
Red
10.5
18.8
1.7
3.2
0.5 x 2.8

In stock

100

£3.06 Excl VAT
Unit Price: £0.0306 £3.67 Inc VAT
Unit Price: £0.0367

Qty
Minimum Order Qty 100
Increments 100
Qty Price per item Savings
500 - 2400 £0.03 3%
2500 - 4900 £0.03 5%
5000 + £0.03 10%

Product Wishlist & Compare Placeholder

Delivery available from £8.50

Available to select at checkout.



Quick Links




Pre-insulated Female Spade Terminals are designed for quick, reliable electrical connections, making them ideal for professional and DIY electrical projects. The female spade design allows easy sliding over male blade terminals, creating a snug, secure connection. Constructed with a brass conductor, copper tubular sleeve, tin plating, and a durable vinyl insulation sleeve, these terminals provide long lasting performance and protection. The insulation helps prevent accidental shorts, heat damage, wear, ensuring safety and durability in various applications. Rated up to 300V, they accommodate current ratings of 10A (red), 15A (blue), and 24A (yellow). The flared barrel design allows easy wire insertion, reduces insertion force, and ensures consistent, vibration-resistant crimping. These terminals are ideal for automotive wiring, household appliances, control panels, and industrial setups requiring secure, efficient, and professional-grade electrical connections.



Key Features

  • Pre-insulated for added safety
  • Brass conductor with tin plating for durability
  • Vinyl insulation protects against heat and wear
  • Rated up to 300V with colour coded sizes
  • Flared barrel for easy wire insertion
  • Low insertion force with secure crimping
  • Quick, low-cost installation



Technical Details

Temperature Range: -10°C to 75°C
Material: Tin Plated Electrolytic Copper/Vinyl Insulation
Voltage: 300V
Colour: Red


Information

Range mm²: 0.5-1.5

Amps: 19A - Max

Product Type: Pre-Ins Female Spade

Colour: Red

Length (L1): 10.5

Length (L2): 18.8

ID (A): 1.7

Width (W): 3.2

Tab: 0.5 x 2.8

Accessories

You might also need the following;

Discover Remora’s extensive and high-quality range of Pre-Insulated Terminals and connection accessories. Our stock covers all critical types for professional wiring, including Ring, Fork, Blade, and Pin Terminals, alongside Male and Female Spade, Piggy Back, Bullet, and Butt Terminals. For fast, reliable joining, we also offer Quick Splice and premium Heat Shrink Solder Sleeves. Looking for an all-in-one solution? Check out our Pre-Insulated Box Kits

Questions & Answers

You need to measure the diameter of the screw or bolt you are connecting to. Pre-insulated terminals are marked with the wire size and the stud size. You must match both numbers for the connection to be secure.

Yes, absolutely. That’s the entire point of the spade and bullet connectors. They are specifically designed
as quick disconnect terminals. However, if you keep plugging and unplugging them repeatedly, the
friction fit will eventually weaken, so keep an eye on how tight that connection feels after many uses.

Butt connectors are fully reversible; they don’t have a polarity. You insert the stripped end of the first wire
into one side and the stripped end of the second wire into the other side, meeting in the middle. The key
is to make two separate, secure crimps one on each wire to guarantee the splice is strong and reliable.
