SKU: RB2318

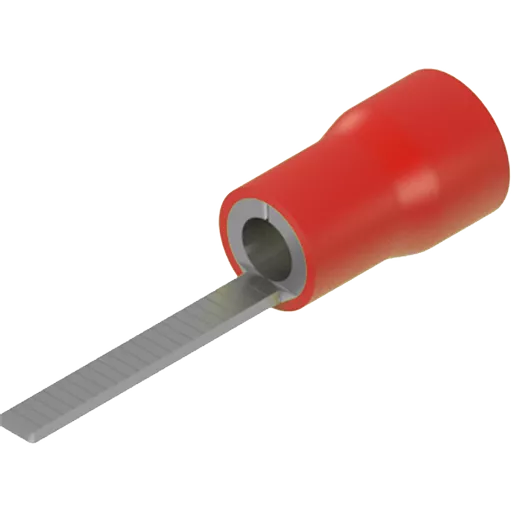

RB2318 - 0.5-1.5mm² Blade Terminal - Red - 18.4x2.3mm

SKU: RB2318

RB2318 - 0.5-1.5mm² Blade Terminal - Red - 18.4x2.3mm

Blade Connectors are designed for quick and reliable single wire connections using a flat conductive blade that securely inserts into a matching receptacle. Manufactured from high-quality copper with a durable tin plating, these connectors deliver excellent conductivity, corrosion resistance, and long term performance.  The vinyl insulation provides added protection, improving safety and durability during installation and operation. With a flared barrel design, wire insertion is fast and simple, while the low crimping force required ensures secure, tight terminations without excessive effort.  Rated up to 600V, blade connectors are suitable for a wide range of electrical applications across domestic, commercial, and industrial environments. Available in colour-coded sizes  Red (19A), Blue (27A), and Yellow (48A) they make wire selection and identification straightforward.

Whether for new installations, repairs, or upgrades, blade connectors offer a dependable, efficient solution for electrical terminations in tight or demanding setups.



Key Features



  • Flat conductive blade for quick plug-in wire connections
  • Copper body with tin plating for conductivity and corrosion resistance
  • Vinyl insulation ensures safety and durability
  • Rated up to 600V for versatile applications
  • Flared barrel allows fast, easy wire insertion
  • Colour-coded sizes: Red (19A), Blue (27A), Yellow (48A)



Technical Details

Temperature Range: -10°C to 75°C
Material: Tin Plated Electrolytic Copper / Vinyl Insulation
Voltage:600V
Colour: Red


Quick Links

0.5-1.5
Pre-Ins 0.5-1.5mm2
Red 19A Max
18.0
28.0
1.7
2.2

In stock

1900

£2.79 Excl VAT
Unit Price: £0.0279 £3.35 Inc VAT
Unit Price: £0.0335

Qty
Minimum Order Qty 100
Increments 100
Qty Price per item Savings
500 - 2400 £0.03 3%
2500 - 4900 £0.03 5%
5000 + £0.03 10%

Product Wishlist & Compare Placeholder

Delivery available from £8.50

Available to select at checkout.



Quick Links




Blade Connectors are designed for quick and reliable single wire connections using a flat conductive blade that securely inserts into a matching receptacle. Manufactured from high-quality copper with a durable tin plating, these connectors deliver excellent conductivity, corrosion resistance, and long term performance.  The vinyl insulation provides added protection, improving safety and durability during installation and operation. With a flared barrel design, wire insertion is fast and simple, while the low crimping force required ensures secure, tight terminations without excessive effort.  Rated up to 600V, blade connectors are suitable for a wide range of electrical applications across domestic, commercial, and industrial environments. Available in colour-coded sizes  Red (19A), Blue (27A), and Yellow (48A) they make wire selection and identification straightforward.

Whether for new installations, repairs, or upgrades, blade connectors offer a dependable, efficient solution for electrical terminations in tight or demanding setups.



Key Features



  • Flat conductive blade for quick plug-in wire connections
  • Copper body with tin plating for conductivity and corrosion resistance
  • Vinyl insulation ensures safety and durability
  • Rated up to 600V for versatile applications
  • Flared barrel allows fast, easy wire insertion
  • Colour-coded sizes: Red (19A), Blue (27A), Yellow (48A)



Technical Details

Temperature Range: -10°C to 75°C
Material: Tin Plated Electrolytic Copper / Vinyl Insulation
Voltage:600V
Colour: Red


Information

Range mm²: 0.5-1.5

Product Type: Pre-Ins 0.5-1.5mm2

Colour: Red 19A Max

Length (L1): 18.0

Length (L2): 28.0

ID (A): 1.7

Width (W): 2.2

Accessories

You might also need the following;

Discover Remora’s extensive and high-quality range of Pre-Insulated Terminals and connection accessories. Our stock covers all critical types for professional wiring, including Ring, Fork, Blade, and Pin Terminals, alongside Male and Female Spade, Piggy Back, Bullet, and Butt Terminals. For fast, reliable joining, we also offer Quick Splice and premium Heat Shrink Solder Sleeves. Looking for an all-in-one solution? Check out our Pre-Insulated Box Kits

Questions & Answers

You need to measure the diameter of the screw or bolt you are connecting to. Pre-insulated terminals are marked with the wire size and the stud size. You must match both numbers for the connection to be secure.

Yes, absolutely. That’s the entire point of the spade and bullet connectors. They are specifically designed
as quick disconnect terminals. However, if you keep plugging and unplugging them repeatedly, the
friction fit will eventually weaken, so keep an eye on how tight that connection feels after many uses.

Butt connectors are fully reversible; they don’t have a polarity. You insert the stripped end of the first wire
into one side and the stripped end of the second wire into the other side, meeting in the middle. The key
is to make two separate, secure crimps one on each wire to guarantee the splice is strong and reliable.
