SKU: GRP12212090-P

GRP12212090-P - ATEX Pre-assembled Enclosure 122x120x90

SKU: GRP12212090-P

GRP12212090-P - ATEX Pre-assembled Enclosure 122x120x90

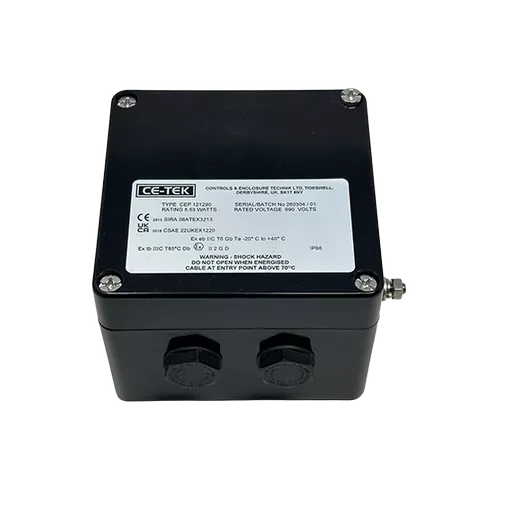

The GRP Ex Enclosure is a robust, flame-resistant terminal box built for safe operation in hazardous environments such as Zones 1 and 2. Made from heavy-duty glass-reinforced polyester, this enclosure offers exceptional corrosion resistance and anti-static properties for long-term reliability

This Exe enclosure features captive cover screws, earth continuity plates, and pre-threaded cable entries for fast, secure installation. The lightweight, modular design allows multiple enclosures to be combined or customised using DIN rails and terminal configurations.

Four M20 entries, the box supports direct installations, making it ideal for power distribution in tight or confined spaces. Rated IP66, it offers complete protection from dust and powerful water jets, suitable for offshore, petrochemical, and heavy industrial use.

GRPEX range of enclosures are ATEX and IECEx certified Ex’e’ and are suitable for use in Category 2 Zone 1 & 2 and Zone 21 & 22 areas according to EN 60079-14.



Key Features

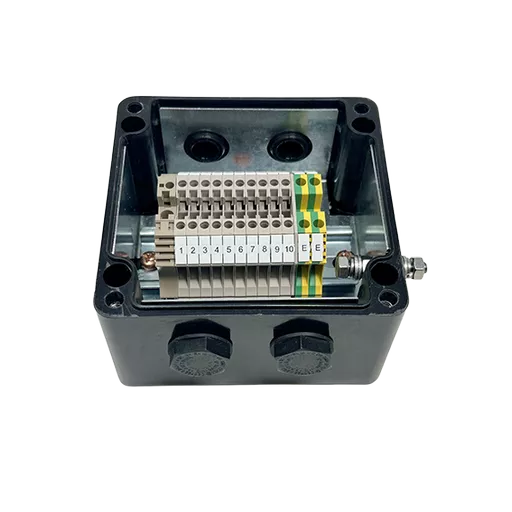

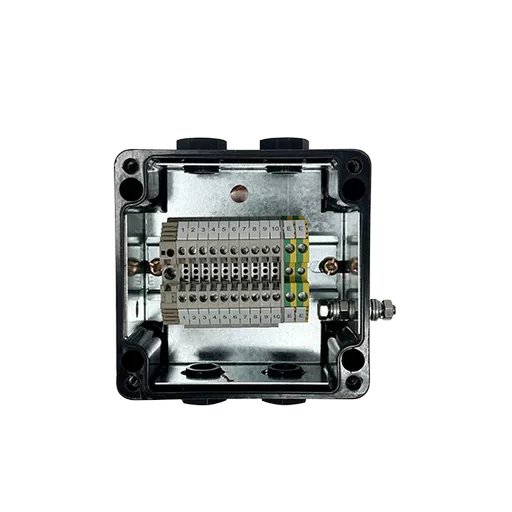

  • Supplied complete with 10x 2.5mm² terminals & 2x 4.0mm² earth terminal
  • 4x M20 entries, supplied complete with stopping plugs
  • ATEX/IECEx Ex e certified for Zones 1 & 2
  • Heavy-duty GRP construction with anti-static surface
  • Pre-drilled M20 tapped cable gland entries supplied with blanking plugs
  • No drilling or tapping of cable entries required
  • Equipped with DIN rail mounted terminals as shown in below specification table
  • Equipped with earth continuity plated and M6 internal/external earth stud




Technical Details

Protection: IP66 / IP67
Ambient Temperature Range: -20°C to 40°C at T6
-20°C to 55°C at T5
-55°C to 65°C (available with SiliconeSeal)
Material: Carbon Loaded Glass Reinforced Polyester GRP
Colour: Black
Standards: ATEX & IECEx (Zone 1 & 2 Zone 21 & 22)





Quick Links

122.0
120.0
90.0
113.0
81.5

In stock

30

£72.81 Excl VAT
Unit Price: £72.8100 £87.37 Inc VAT
Unit Price: £87.3720

Qty
Minimum Order Qty 1
Increments 1

Product Wishlist & Compare Placeholder

Delivery available from £8.50

Available to select at checkout.



Quick Links




The GRP Ex Enclosure is a robust, flame-resistant terminal box built for safe operation in hazardous environments such as Zones 1 and 2. Made from heavy-duty glass-reinforced polyester, this enclosure offers exceptional corrosion resistance and anti-static properties for long-term reliability

This Exe enclosure features captive cover screws, earth continuity plates, and pre-threaded cable entries for fast, secure installation. The lightweight, modular design allows multiple enclosures to be combined or customised using DIN rails and terminal configurations.

Four M20 entries, the box supports direct installations, making it ideal for power distribution in tight or confined spaces. Rated IP66, it offers complete protection from dust and powerful water jets, suitable for offshore, petrochemical, and heavy industrial use.

GRPEX range of enclosures are ATEX and IECEx certified Ex’e’ and are suitable for use in Category 2 Zone 1 & 2 and Zone 21 & 22 areas according to EN 60079-14.



Key Features

  • Supplied complete with 10x 2.5mm² terminals & 2x 4.0mm² earth terminal
  • 4x M20 entries, supplied complete with stopping plugs
  • ATEX/IECEx Ex e certified for Zones 1 & 2
  • Heavy-duty GRP construction with anti-static surface
  • Pre-drilled M20 tapped cable gland entries supplied with blanking plugs
  • No drilling or tapping of cable entries required
  • Equipped with DIN rail mounted terminals as shown in below specification table
  • Equipped with earth continuity plated and M6 internal/external earth stud




Technical Details

Protection: IP66 / IP67
Ambient Temperature Range: -20°C to 40°C at T6
-20°C to 55°C at T5
-55°C to 65°C (available with SiliconeSeal)
Material: Carbon Loaded Glass Reinforced Polyester GRP
Colour: Black
Standards: ATEX & IECEx (Zone 1 & 2 Zone 21 & 22)





Information

Width (A): 122.0

Width (B): 120.0

Height (C): 90.0

Width (Internal): 113.0

Height (Internal): 81.5
