SKU: 100903

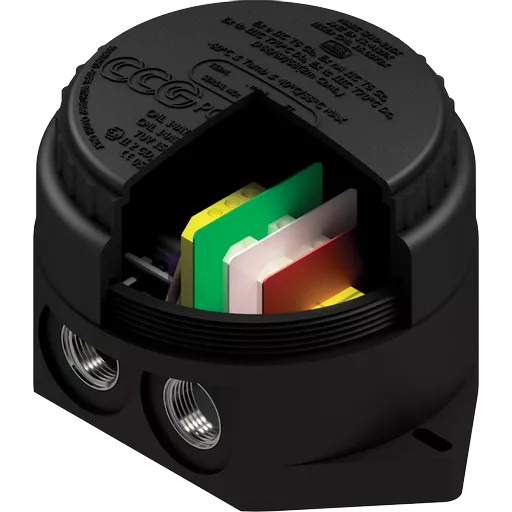

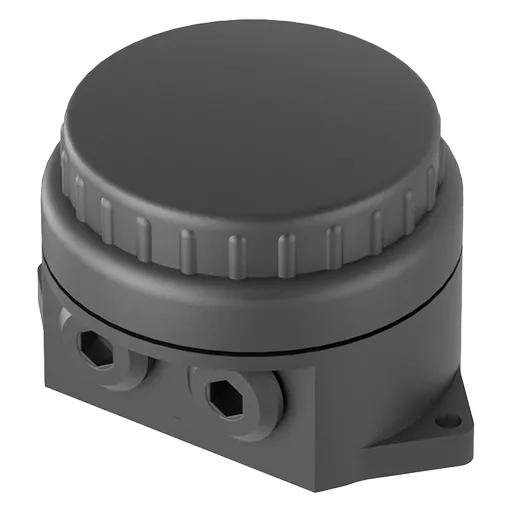

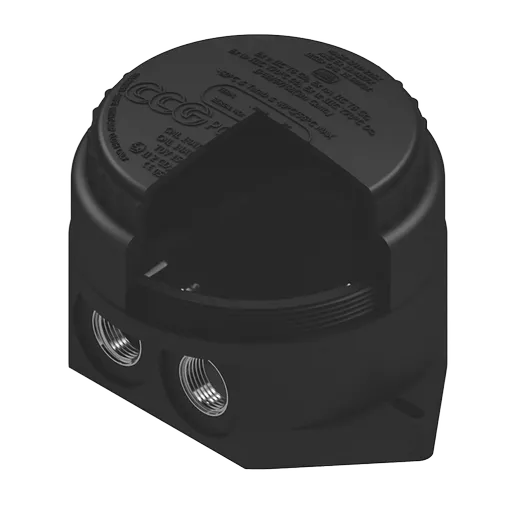

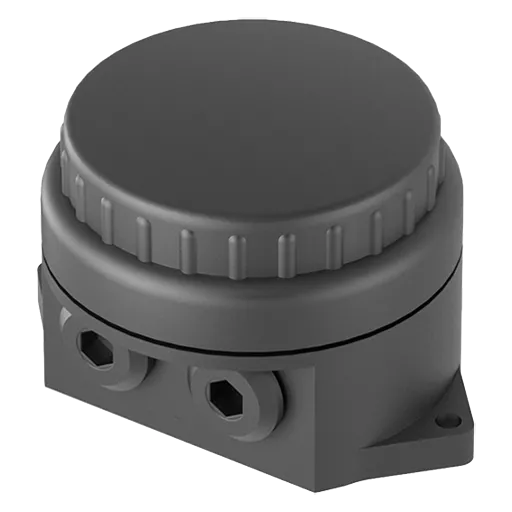

100903 - CCG POSIFIT EExe IP68 GRP 3 way 'Y' entry Junction Box M32

SKU: 100903

100903 - CCG POSIFIT EExe IP68 GRP 3 way 'Y' entry Junction Box M32

The PosiFit Y Junction Box is a compact, Exe-certified enclosure designed for electrical terminations in hazardous environments. Built from glass-reinforced polyester (GRP), it provides strong protection against corrosion, impact, UV, and harsh chemicals. With three-way cable entry, the box supports directional installations, making it ideal for looping lighting circuits and power distribution in tight or confined spaces. Rated IP66, it offers complete protection from dust and powerful water jets, suitable for offshore, petrochemical, and heavy industrial use. This Exe enclosure is certified for Zone 1 and Zone 2 applications. Pre-threaded entries and internal terminals ensure fast, compliant installation.

Pre-moulded with threaded entries the PosiFit Exe Box allows for fast and secure installation. A tamper proof lid can be secured with fasteners or a locking system to restrict unauthorised access. Engineered for Exe-rated electrical systems, this enclosure supports reliable performance and long-term safety in mission critical environments.



Key Features

  • 3x M32 entries, supplied complete with stopping plugs
  • Posi Fit™ box for use in Group II and Group III applications.
  • Raised domed lid facilitates connections to be made clear of the box base.
  • Screw-on lid provides ease of installation. Lid locking with a special key prevents unauthorized tampering.
  • Supplied complete with safety securing lid lanyard.
  • DIN Rail mounting studs are provided for use with terminal blocks.
  • Dust and watertight to IP66/68, when fitted with CCG sealed cable glands.
  • No drilling of the cable entries is required. Internal earthing to all entries and rail



Technical Details

Protection: IP66 IP68
Ambient Temperature Range: -60°C to 55°C (Finished)
Survive Temperature Range: -60°C to 110°C (Unfinished)
Material: Impact, Corrosion and UV Resistant Glass Reinforced Polyester
Colour: Black
Equipment Protection:
ATEX/UKEX: (Finished) I M2, II 2GD / 3G Ex eb I Mb / Ex eb IIC T6 Gb / Ex tb IIIC T70°C Db
ATEX/UKEX: (Unfinished) I M2, II 2GD / 3G Ex eb I Mb / Ex eb IIC Gb / Ex ec IIC Gc / Ex tb IIIC Db

Quick Links

3-M32
105.0
150.0
237.0
152.0
M32 x 1.5

Out of Stock - Back Order

0

£100.13 Excl VAT
Unit Price: £100.1300 £120.16 Inc VAT
Unit Price: £120.1560

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty
Minimum Order Qty 1
Increments 1

Product Wishlist & Compare Placeholder

Delivery available from £8.50

Available to select at checkout.



Quick Links




The PosiFit Y Junction Box is a compact, Exe-certified enclosure designed for electrical terminations in hazardous environments. Built from glass-reinforced polyester (GRP), it provides strong protection against corrosion, impact, UV, and harsh chemicals. With three-way cable entry, the box supports directional installations, making it ideal for looping lighting circuits and power distribution in tight or confined spaces. Rated IP66, it offers complete protection from dust and powerful water jets, suitable for offshore, petrochemical, and heavy industrial use. This Exe enclosure is certified for Zone 1 and Zone 2 applications. Pre-threaded entries and internal terminals ensure fast, compliant installation.

Pre-moulded with threaded entries the PosiFit Exe Box allows for fast and secure installation. A tamper proof lid can be secured with fasteners or a locking system to restrict unauthorised access. Engineered for Exe-rated electrical systems, this enclosure supports reliable performance and long-term safety in mission critical environments.



Key Features

  • 3x M32 entries, supplied complete with stopping plugs
  • Posi Fit™ box for use in Group II and Group III applications.
  • Raised domed lid facilitates connections to be made clear of the box base.
  • Screw-on lid provides ease of installation. Lid locking with a special key prevents unauthorized tampering.
  • Supplied complete with safety securing lid lanyard.
  • DIN Rail mounting studs are provided for use with terminal blocks.
  • Dust and watertight to IP66/68, when fitted with CCG sealed cable glands.
  • No drilling of the cable entries is required. Internal earthing to all entries and rail



Technical Details

Protection: IP66 IP68
Ambient Temperature Range: -60°C to 55°C (Finished)
Survive Temperature Range: -60°C to 110°C (Unfinished)
Material: Impact, Corrosion and UV Resistant Glass Reinforced Polyester
Colour: Black
Equipment Protection:
ATEX/UKEX: (Finished) I M2, II 2GD / 3G Ex eb I Mb / Ex eb IIC T6 Gb / Ex tb IIIC T70°C Db
ATEX/UKEX: (Unfinished) I M2, II 2GD / 3G Ex eb I Mb / Ex eb IIC Gb / Ex ec IIC Gc / Ex tb IIIC Db

Information

Reference Size: 3-M32

(B): 105.0

(C): 150.0

(D): 237.0

(E): 152.0

Entry Thread Size: M32 x 1.5
