SKU: MHS20/2/5.0

MHS20/2/5.0 - M20 2 Hole GripLoc® Seal For Cables 4.0-5.0mm OD

SKU: MHS20/2/5.0

MHS20/2/5.0 - M20 2 Hole GripLoc® Seal For Cables 4.0-5.0mm OD

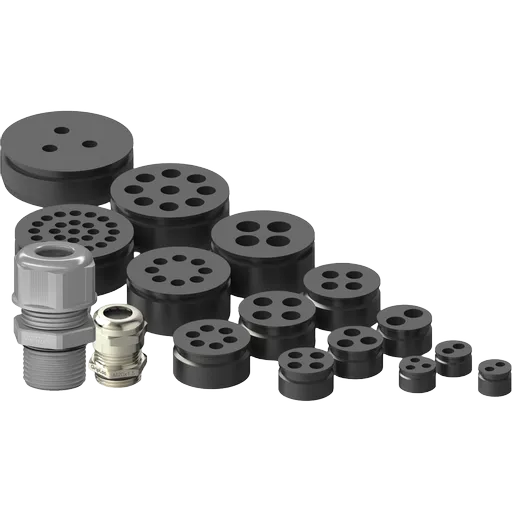

GripLoc® Multi Hole Inserts are smart, practical seal options for fitting several cables through a single cable gland while keeping high ingress protection intact. Made to swap easily with the standard GripLoc® seal, they help tidy up installations and save time where multiple cable runs need to share the same entry point.
Available in seven sizes (M16-M63) with options for two up to twenty five holes, these inserts work seamlessly with the full GripLoc® gland range in Nylon or Brass.
A clean, reliable way to manage clustered cables without compromising sealing performance or IP ratings.



Key Features

  • Seal multiple cables in one gland
  • Maintains IP protection and cable retention
  • Seven insert sizes for flexible options
  • Easy swap with standard GripLoc® seal
  • Compatible with Nylon or Brass GripLoc® glands



Technical Data

Material: Thermoplastic elastomer
Ingress Protection : IP66
Operating Temp (Static): -40°C to 100°C (120°C Instantaneous)
Temp (Dynamic):-20°C to 80°C (100°C Instantaneous)



Quick Links

Multi-Hole Seals
Black
3.0
5.0
2
GripLoc-BR-M20
GripLoc-M20-*

In stock

1617

£0.99 Excl VAT
Unit Price: £0.9900 £1.19 Inc VAT
Unit Price: £1.1880

Qty
Minimum Order Qty 1
Increments 1

Product Wishlist & Compare Placeholder

Delivery available from £8.50

Available to select at checkout.



Quick Links






GripLoc® Multi Hole Inserts are smart, practical seal options for fitting several cables through a single cable gland while keeping high ingress protection intact. Made to swap easily with the standard GripLoc® seal, they help tidy up installations and save time where multiple cable runs need to share the same entry point.
Available in seven sizes (M16-M63) with options for two up to twenty five holes, these inserts work seamlessly with the full GripLoc® gland range in Nylon or Brass.
A clean, reliable way to manage clustered cables without compromising sealing performance or IP ratings.



Key Features

  • Seal multiple cables in one gland
  • Maintains IP protection and cable retention
  • Seven insert sizes for flexible options
  • Easy swap with standard GripLoc® seal
  • Compatible with Nylon or Brass GripLoc® glands



Technical Data

Material: Thermoplastic elastomer
Ingress Protection : IP66
Operating Temp (Static): -40°C to 100°C (120°C Instantaneous)
Temp (Dynamic):-20°C to 80°C (100°C Instantaneous)



Information

Product Type: Multi-Hole Seals

Colour: Black

Cable OD Range Min (B): 3.0

Cable OD Range Max (B): 5.0

Hole Count: 2

Brass Gland: GripLoc-BR-M20

Nylon Gland: GripLoc-M20-*

Accessories

You might also need the following;

Explore the GripLoc® extensive range of cable gland accessories, including Multi-Hole Seals & Plugs, Nylon Reducers & Adaptors, Dome Head Stopping Plugs, Hex Head Stopping Plugs & Extra Nylon Lock Nuts. Everything needed for secure, compliant cable gland installations.

Questions & Answers

Standard nylon glands frequently suffer from the internal seal warping, bulging or completely pulling out when you torque down the cap. The GripLoc seal fixes this by using a continuous channel around its top lip where built-in retention tabs from the claw physically lock inside. It also uses an inner deluge lip that interlocks directly with the gland body, ensuring a completely water-tight interface that stops the rubber from distorting under heavy pressure.

Yes, you can significantly reduce enclosure clutter and drilling requirements by swapping out the standard single-cable insert for a GripLoc® Multi-Hole Seal. Available across several size categories, these interchangeable thermoplastic inserts feature pre-molded configurations that cleanly and securely route multiple cables through one entry point, optimizing panel space while maintaining a high-performance, weatherproof seal.

Yes. The GripLoc® Multi-Hole Sealinserts are universally designed to fit seamlessly into the GripLoc Nylon , GripLoc Nickel-Plated Brass and GripLoc Stainless Steel cable gland, maintaining the same high level of environmental sealing across both material types.

A standard gland is built for general industrial and commercial panels, whereas an Ex version is strictly certified for hazardous areas where explosive gases or dust atmospheres are a constant risk. The Ex e hazardous glands conform to strict ATEX standards like EN 6000079-0 and are typically colour coded in black or distinct Blue for easy identification in Zone 1, 2, 21 or 22 environments, utilising specialised compound materials to prevent any risk of static ignition or housing failure.
