SKU: MICC2T2.5-W

MICC2T2.5-W - MICC Cable 2T 2.5mm² - 100m Drum - Twisted - White

SKU: MICC2T2.5-W

MICC2T2.5-W - MICC Cable 2T 2.5mm² - 100m Drum - Twisted - White

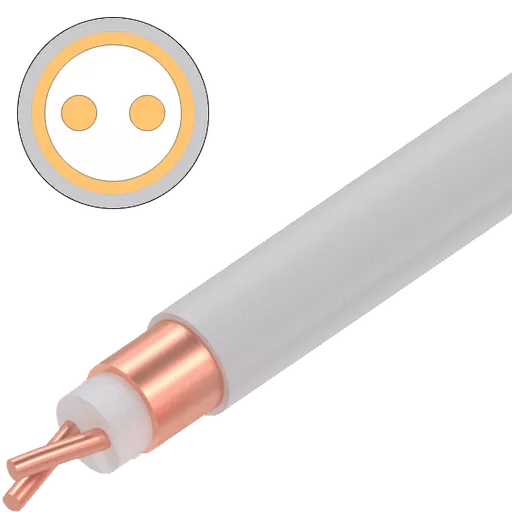

Wrexham Mineral Cables’ twisted-core MICC (Mineral Insulated Copper Clad) cable, available in 2, 3 or 4-core versions, is engineered for environments where fire survival, reliability and signal integrity are critical. The twisted conductor design helps minimise electromagnetic interference, while the fully mineral-insulated construction ensures long-term performance even under extreme conditions. With a robust copper sheath providing mechanical protection and earthing, this cable is ideal for safety-critical control, data and instrumentation systems.

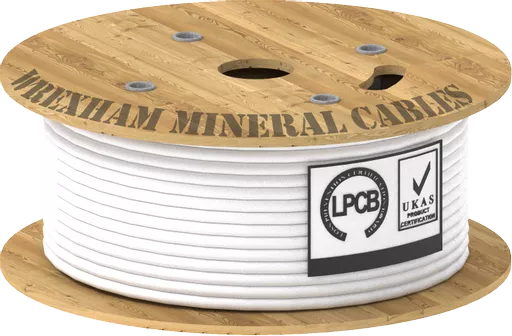

Supplied in 100m Drums or Coils - Cuts lengths are available to order, contact Sales for more information.


Key Features

  • Twisted-core design reduces electromagnetic interference and improves signal integrity.
  • Inorganic mineral insulation (MgO) for outstanding fire survival.
  • Copper sheath provides mechanical strength, impact resistance and continuous earth path.
  • Operates at high continuous temperatures up to +250 °C.
  • Exceeds 3 hours fire resistance at 950 °C (tested to BS 60702-1).
  • Certified to BS EN 60702-1:2002 + A1:2015 standard.
  • Durable, long-lasting, and non-ageing - no polymers, highly resistant to moisture, UV, oil and pests.



Technical Details

Standards: BS EN 60702-1:2002 + A1:2015
Type: Fire survival / fire-resistant cable, >3 h @ 950 °C
Temperature Range: -40 °C to +250 °C continuous
Conductors: Plain annealed copper (Cu-ETP-2)
Insulation: Compressed magnesium oxide (MgO)
Sheath: Copper (Cu-DHP) with optional LSZH outer covering
Outer Colour Options (LSZH): Bare copper, Black, Orange, Red, White (or custom RAL on request)


Quick Links

2.5
MICC Cable
2
White
8.1
500V
Light Duty

0

Please contact us for more information.

Contact us

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty
Minimum Order Qty 1
Increments 1

Product Wishlist & Compare Placeholder

Delivery available from £8.50

Available to select at checkout.



Quick Links




Wrexham Mineral Cables’ twisted-core MICC (Mineral Insulated Copper Clad) cable, available in 2, 3 or 4-core versions, is engineered for environments where fire survival, reliability and signal integrity are critical. The twisted conductor design helps minimise electromagnetic interference, while the fully mineral-insulated construction ensures long-term performance even under extreme conditions. With a robust copper sheath providing mechanical protection and earthing, this cable is ideal for safety-critical control, data and instrumentation systems.

Supplied in 100m Drums or Coils - Cuts lengths are available to order, contact Sales for more information.


Key Features

  • Twisted-core design reduces electromagnetic interference and improves signal integrity.
  • Inorganic mineral insulation (MgO) for outstanding fire survival.
  • Copper sheath provides mechanical strength, impact resistance and continuous earth path.
  • Operates at high continuous temperatures up to +250 °C.
  • Exceeds 3 hours fire resistance at 950 °C (tested to BS 60702-1).
  • Certified to BS EN 60702-1:2002 + A1:2015 standard.
  • Durable, long-lasting, and non-ageing - no polymers, highly resistant to moisture, UV, oil and pests.



Technical Details

Standards: BS EN 60702-1:2002 + A1:2015
Type: Fire survival / fire-resistant cable, >3 h @ 950 °C
Temperature Range: -40 °C to +250 °C continuous
Conductors: Plain annealed copper (Cu-ETP-2)
Insulation: Compressed magnesium oxide (MgO)
Sheath: Copper (Cu-DHP) with optional LSZH outer covering
Outer Colour Options (LSZH): Bare copper, Black, Orange, Red, White (or custom RAL on request)


Information

Cable Size mm²: 2.5

Product Type: MICC Cable

Conductors: 2

Colour: White

Cable Dia: 8.1

Rated Voltage: 500V

Rating: Light Duty

Accessories

You might also need the following;

Discover Remora’s comprehensive range of Mineral Insulated Copper Clad (MICC) cable accessories, including RGM glands, PRS and RPSL earth tail seals, copper clips, saddles, RMX compound and specialist tooling — everything needed for reliable MICC cable installation.

Questions & Answers

MICC means Mineral Insulated Copper Clad cable. It consists of copper conductors inside a copper sheath, with the spaces filled by highly compressed magnesium oxide (MgO) insulation. There is no plastic insulation whatsoever.

Because MICC does not burn, emit toxic fumes or degrade as quickly under heat. It provides superior fire survival, mechanical durability, protection against moisture and harsh environments, and long service life. The one true fire survival cable.

MICC operates continuously up to ~250°C. In fire tests it can withstand over 900°C for several hours, continuing to carry current and maintain circuit integrity. The copper sheath melts at ~1083°C.
