SKU: MICC7L1.5-B

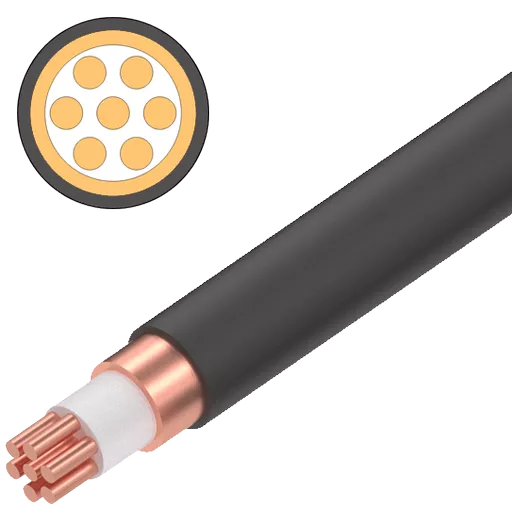

MICC7L1.5-B - MICC Cable 7L 1.5mm² - 100m Drum - Black

SKU: MICC7L1.5-B

MICC7L1.5-B - MICC Cable 7L 1.5mm² - 100m Drum - Black

Wrexham Mineral Cables (WMC) MICC Fire Survival Cable Light Duty 500V is engineered for critical applications requiring enhanced fire performance and long-term durability. This mineral insulated copper cable offers exceptional resistance to fire, heat and mechanical damage, making it ideal for critical circuits in hospitals, tunnels, airports and high-rise buildings. Designed to meet BS EN 60702-1 standards, this cable ensures a reliable connection in the most extreme conditions. The copper sheath provides excellent earth continuity while maintaining flexibility for easy installation. Choose Wrexham for trusted quality, superior protection and compliance with UK fire safety regulations in commercial and industrial environments.

Supplied in 100m Drums or Coils - Cuts lengths are available to order, contact Sales for more information.

Key Features

  • Mineral insulated for superior fire resistance
  • Copper sheath offers excellent earth continuity
  • Rated up to 500V for light duty applications
  • Compliant with BS EN 60702-1 standards
  • Resistant to heat, flame, and mechanical impact
  • Ideal for safety-critical installations



Technical Details

Standards: BS EN 60702-1:2002+A1:2015
Cable Type: Fire Survival Cable - Fire Resistant exceeding 3 hours @ 950°C
Temperature Range: -40°C to 250°C
Conductors: Plain Annealed Copper (Cu-ETP-2)
Insulation: Compressed Magnesium Oxide (Mg0)
Sheath: Copper (Cu-DHP)
Sheath:  Coloured LSZH polymer
Colour: Bare Copper, Black, Orange, Red, White


Quick Links

1.5
MICC Cable
7
Black
10.1
500V
Light Duty

0

Please contact us for more information.

Contact us

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty
Minimum Order Qty 1
Increments 1

Product Wishlist & Compare Placeholder

Delivery available from £8.50

Available to select at checkout.



Quick Links




Wrexham Mineral Cables (WMC) MICC Fire Survival Cable Light Duty 500V is engineered for critical applications requiring enhanced fire performance and long-term durability. This mineral insulated copper cable offers exceptional resistance to fire, heat and mechanical damage, making it ideal for critical circuits in hospitals, tunnels, airports and high-rise buildings. Designed to meet BS EN 60702-1 standards, this cable ensures a reliable connection in the most extreme conditions. The copper sheath provides excellent earth continuity while maintaining flexibility for easy installation. Choose Wrexham for trusted quality, superior protection and compliance with UK fire safety regulations in commercial and industrial environments.

Supplied in 100m Drums or Coils - Cuts lengths are available to order, contact Sales for more information.

Key Features

  • Mineral insulated for superior fire resistance
  • Copper sheath offers excellent earth continuity
  • Rated up to 500V for light duty applications
  • Compliant with BS EN 60702-1 standards
  • Resistant to heat, flame, and mechanical impact
  • Ideal for safety-critical installations



Technical Details

Standards: BS EN 60702-1:2002+A1:2015
Cable Type: Fire Survival Cable - Fire Resistant exceeding 3 hours @ 950°C
Temperature Range: -40°C to 250°C
Conductors: Plain Annealed Copper (Cu-ETP-2)
Insulation: Compressed Magnesium Oxide (Mg0)
Sheath: Copper (Cu-DHP)
Sheath:  Coloured LSZH polymer
Colour: Bare Copper, Black, Orange, Red, White


Information

Cable Size mm²: 1.5

Product Type: MICC Cable

Conductors: 7

Colour: Black

Cable Dia: 10.1

Rated Voltage: 500V

Rating: Light Duty

Accessories

You might also need the following;

Discover Remora’s comprehensive range of Mineral Insulated Copper Clad (MICC) cable accessories, including RGM glands, PRS and RPSL earth tail seals, copper clips, saddles, RMX compound and specialist tooling — everything needed for reliable MICC cable installation.

Questions & Answers

MICC means Mineral Insulated Copper Clad cable. It consists of copper conductors inside a copper sheath, with the spaces filled by highly compressed magnesium oxide (MgO) insulation. There is no plastic insulation whatsoever.

Because MICC does not burn, emit toxic fumes or degrade as quickly under heat. It provides superior fire survival, mechanical durability, protection against moisture and harsh environments, and long service life. The one true fire survival cable.

MICC operates continuously up to ~250°C. In fire tests it can withstand over 900°C for several hours, continuing to carry current and maintain circuit integrity. The copper sheath melts at ~1083°C.
