SKU: MICC1H95

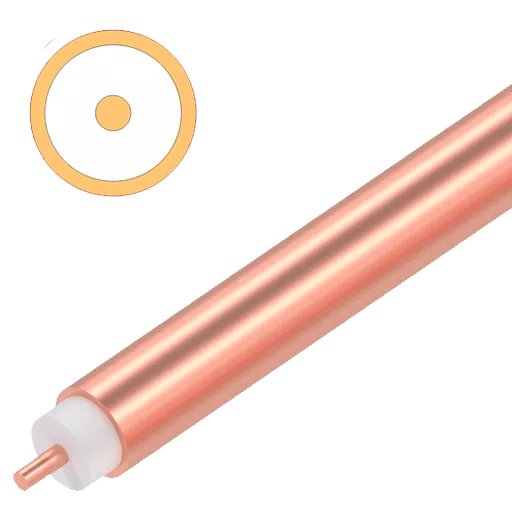

MICC1H95 - MICC Cable 1H 95mm² - 100m Coil - Heavy Duty - Bare

SKU: MICC1H95

MICC1H95 - MICC Cable 1H 95mm² - 100m Coil - Heavy Duty - Bare

Wrexham Mineral Cables (WMC)  MICC Fire Survival Cable Heavy Duty 750V is built for high-performance electrical systems that demand superior fire protection and durability. This mineral insulated copper clad cable is engineered for use in safety-critical environments including hospitals, tunnels, transport systems and high-rise buildings. It withstands extreme heat exceeding 3 hours at 950 Degrees Celsius , mechanical stress and corrosive conditions while maintaining circuit integrity. Certified to BS EN 60702-1, the cable offers long-term reliability with a solid copper sheath that also acts as a continuous earth path. Ideal for fixed wiring applications where fire resistance and safety are essential, Remora delivers trusted quality and performance in every cable.

Supplied in 100m Drums or Coils - Cuts lengths are available to order, contact Sales for more information.


Key Features

  • Heavy duty fire resistant mineral insulated cable
  • Rated up to 750V for critical electrical systems
  • Solid copper sheath for earthing and protection
  • Maintains circuit integrity in high heat
  • Resistant to mechanical and chemical damage
  • Certified to BS EN 60702-1 standards



Technical Details

Standards: BS EN 60702-1:2002+A1:2015
Cable Type: Fire Survival Cable - Fire Resistant exceeding 3 hours @ 950°C
Temperature Range: -40°C to 250°C
Conductors: Plain Annealed Copper (Cu-ETP-2)
Insulation: Compressed Magnesium Oxide (Mg0)
Sheath: Copper (Cu-DHP)
Sheath:  Coloured LSZH polymer
Colour: Bare Copper, Black, Orange, Red, White


Quick Links

95
MICC Cable
1
Bare
15.4
750V
Heavy Duty

0

Please contact us for more information.

Contact us

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty
Minimum Order Qty 1
Increments 1

Product Wishlist & Compare Placeholder

Delivery available from £8.50

Available to select at checkout.



Quick Links




Wrexham Mineral Cables (WMC)  MICC Fire Survival Cable Heavy Duty 750V is built for high-performance electrical systems that demand superior fire protection and durability. This mineral insulated copper clad cable is engineered for use in safety-critical environments including hospitals, tunnels, transport systems and high-rise buildings. It withstands extreme heat exceeding 3 hours at 950 Degrees Celsius , mechanical stress and corrosive conditions while maintaining circuit integrity. Certified to BS EN 60702-1, the cable offers long-term reliability with a solid copper sheath that also acts as a continuous earth path. Ideal for fixed wiring applications where fire resistance and safety are essential, Remora delivers trusted quality and performance in every cable.

Supplied in 100m Drums or Coils - Cuts lengths are available to order, contact Sales for more information.


Key Features

  • Heavy duty fire resistant mineral insulated cable
  • Rated up to 750V for critical electrical systems
  • Solid copper sheath for earthing and protection
  • Maintains circuit integrity in high heat
  • Resistant to mechanical and chemical damage
  • Certified to BS EN 60702-1 standards



Technical Details

Standards: BS EN 60702-1:2002+A1:2015
Cable Type: Fire Survival Cable - Fire Resistant exceeding 3 hours @ 950°C
Temperature Range: -40°C to 250°C
Conductors: Plain Annealed Copper (Cu-ETP-2)
Insulation: Compressed Magnesium Oxide (Mg0)
Sheath: Copper (Cu-DHP)
Sheath:  Coloured LSZH polymer
Colour: Bare Copper, Black, Orange, Red, White


Information

Cable Size mm²: 95

Product Type: MICC Cable

Conductors: 1

Colour: Bare

Cable Dia: 15.4

Rated Voltage: 750V

Rating: Heavy Duty

Accessories

You might also need the following;

Discover Remora’s comprehensive range of Mineral Insulated Copper Clad (MICC) cable accessories, including RGM glands, PRS and RPSL earth tail seals, copper clips, saddles, RMX compound and specialist tooling — everything needed for reliable MICC cable installation.

Questions & Answers

MICC means Mineral Insulated Copper Clad cable. It consists of copper conductors inside a copper sheath, with the spaces filled by highly compressed magnesium oxide (MgO) insulation. There is no plastic insulation whatsoever.

Because MICC does not burn, emit toxic fumes or degrade as quickly under heat. It provides superior fire survival, mechanical durability, protection against moisture and harsh environments, and long service life. The one true fire survival cable.

MICC operates continuously up to ~250°C. In fire tests it can withstand over 900°C for several hours, continuing to carry current and maintain circuit integrity. The copper sheath melts at ~1083°C.
