SKU: 353063

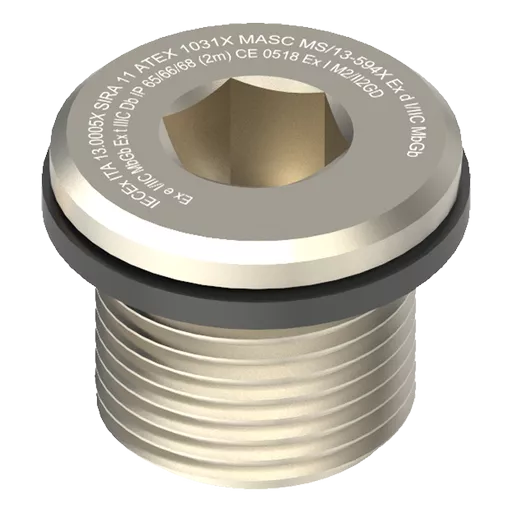

353063 - M63 Brass Nickel Plated Flameproof Dome Head Stopping Plug

SKU: 353063

353063 - M63 Brass Nickel Plated Flameproof Dome Head Stopping Plug

Metric Hazardous Dome Head Plugs in nickel plated brass (marine grade) are engineered to safely blank unused threaded entries in hazardous area enclosures. Suitable for both temporary and permanent use, these plugs are IECEx and ATEX certified, offering compliance with international standards for safe installation. They achieve protection levels Ex db I Mb / Ex eb I Mb / Ex db IIC Gb / Ex eb IIC Gb / Ex ta IIIC Da / Ex nR IIC, ensuring reliability in demanding environments.
Supplied with pre-fitted sealing gasket, they provide IP66/IP68 protection against dust, dirt, and water ingress. With a temperature rating of -60°C to +95°C, extendable to +160°C with a high-temperature gasket, they deliver long lasting performance.
Available in the full ISO Metric range M16 to M100, these plugs are ideal for industrial, petrochemical, marine and offshore applications.




Key Features

  • Nickel plated brass (marine grade) for strength and corrosion resistance
  • IECEx and ATEX certified for hazardous environments
  • Provides IP66/IP68 ingress protection with sealing gasket
  • Wide operating range: -60°C to +95°C (up to +160°C with high-temp gasket)
  • Full ISO Metric range M16 to M100 available
  • Suitable for blanking threaded or unthreaded holes (with locknut)




Technical Details

Equipment Protection Levels: IECEx: Ex db I Mb / Ex eb I Mb / Ex db IIC Gb / Ex eb IIC Gb / Ex ta IIIC Da / Ex nR IIC
ATEX: I M2 Ex db I Mb / Ex eb I Mb, II 2G 1D Ex db IIC Gb / Ex eb IIC Gb / Ex ta IIIC Da
Protection: IP66 / IP68
Temperature Range: -60°C to 95°C (-60°C to 160°C with High Temp Gasket)
Material: Nickel Plated Brass (Marine Grade)


Quick Links

Metric Nickel
Silver
14
M63 x 1.5
16.0
70.0
14.0

In stock

11

£42.36 Excl VAT
Unit Price: £42.3600 £50.83 Inc VAT
Unit Price: £50.8320

Qty
Minimum Order Qty 1
Increments 1

Product Wishlist & Compare Placeholder

Delivery available from £8.50

Available to select at checkout.



Quick Links




Metric Hazardous Dome Head Plugs in nickel plated brass (marine grade) are engineered to safely blank unused threaded entries in hazardous area enclosures. Suitable for both temporary and permanent use, these plugs are IECEx and ATEX certified, offering compliance with international standards for safe installation. They achieve protection levels Ex db I Mb / Ex eb I Mb / Ex db IIC Gb / Ex eb IIC Gb / Ex ta IIIC Da / Ex nR IIC, ensuring reliability in demanding environments.
Supplied with pre-fitted sealing gasket, they provide IP66/IP68 protection against dust, dirt, and water ingress. With a temperature rating of -60°C to +95°C, extendable to +160°C with a high-temperature gasket, they deliver long lasting performance.
Available in the full ISO Metric range M16 to M100, these plugs are ideal for industrial, petrochemical, marine and offshore applications.




Key Features

  • Nickel plated brass (marine grade) for strength and corrosion resistance
  • IECEx and ATEX certified for hazardous environments
  • Provides IP66/IP68 ingress protection with sealing gasket
  • Wide operating range: -60°C to +95°C (up to +160°C with high-temp gasket)
  • Full ISO Metric range M16 to M100 available
  • Suitable for blanking threaded or unthreaded holes (with locknut)




Technical Details

Equipment Protection Levels: IECEx: Ex db I Mb / Ex eb I Mb / Ex db IIC Gb / Ex eb IIC Gb / Ex ta IIIC Da / Ex nR IIC
ATEX: I M2 Ex db I Mb / Ex eb I Mb, II 2G 1D Ex db IIC Gb / Ex eb IIC Gb / Ex ta IIIC Da
Protection: IP66 / IP68
Temperature Range: -60°C to 95°C (-60°C to 160°C with High Temp Gasket)
Material: Nickel Plated Brass (Marine Grade)


Information

Product Type: Metric Nickel

Colour: Silver

Torque (Nm): 14

Male Thread: M63 x 1.5

Male Thread Length (L1): 16.0

Head Diameter: 70.0

Allen Key A/F: 14.0
