SKU: ML1-12

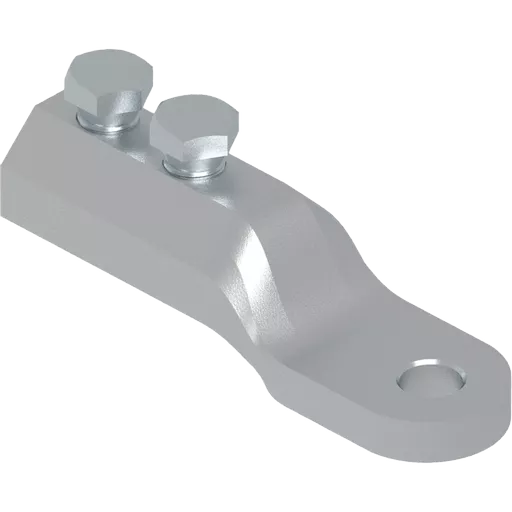

ML1-12 - 50-95 Mechanical Lug M12 Stud Hole

SKU: ML1-12

ML1-12 - 50-95 Mechanical Lug M12 Stud Hole


Aluminium Mechanical Lugs 600/1000V provide a reliable, crimp-free method of terminating Copper or Aluminium power cables. Manufactured from high-strength HE30 TF Aluminium alloy, these mechanical lugs are engineered for performance and durability. The design eliminates the need for crimping tools – simply insert the conductor fully and tighten the shear bolts to create a secure, low-resistance connection. Covering conductor sizes from 50mm² to 500mm², just four lug sizes offer wide application flexibility, making them ideal for electrical contractors. Suitable for both stranded and solid sector-shaped conductors, these mechanical lugs are short circuit tested in accordance with BS 4579 Part 3, ensuring compliance and reliability in demanding installations. Operating at temperatures up to 100°C, they deliver long-lasting performance across industrial, utility, and commercial projects.



Key Features

  • Manufactured from HE30 TF Aluminium alloy
  • Crimp-free installation with shear bolt design
  • Range taking: 4 lug sizes cover 50–500mm²
  • Suitable for Copper and Aluminium conductors
  • Tested to BS 4579 Part 3 for reliability



Technical Details

Temperature Range: up to 100°C
Material:BHE 30 TF Aluminium Alloy


Quick Links

50-95
12
Mechanical Lug
Silver
95.0
17.0
25.0
25.0

In stock

34

£14.27 Excl VAT
Unit Price: £14.2700 £17.12 Inc VAT
Unit Price: £17.1240

Qty
Minimum Order Qty 1
Increments 1
Qty Price per item Savings
5 - 9 £13.56 5%
10 - 49 £13.13 8%
50 + £12.84 10%

Product Wishlist & Compare Placeholder

Delivery available from £8.50

Available to select at checkout.



Quick Links





Aluminium Mechanical Lugs 600/1000V provide a reliable, crimp-free method of terminating Copper or Aluminium power cables. Manufactured from high-strength HE30 TF Aluminium alloy, these mechanical lugs are engineered for performance and durability. The design eliminates the need for crimping tools – simply insert the conductor fully and tighten the shear bolts to create a secure, low-resistance connection. Covering conductor sizes from 50mm² to 500mm², just four lug sizes offer wide application flexibility, making them ideal for electrical contractors. Suitable for both stranded and solid sector-shaped conductors, these mechanical lugs are short circuit tested in accordance with BS 4579 Part 3, ensuring compliance and reliability in demanding installations. Operating at temperatures up to 100°C, they deliver long-lasting performance across industrial, utility, and commercial projects.



Key Features

  • Manufactured from HE30 TF Aluminium alloy
  • Crimp-free installation with shear bolt design
  • Range taking: 4 lug sizes cover 50–500mm²
  • Suitable for Copper and Aluminium conductors
  • Tested to BS 4579 Part 3 for reliability



Technical Details

Temperature Range: up to 100°C
Material:BHE 30 TF Aluminium Alloy


Information

Cable Size mm²: 50-95

Stud Size: 12

Product Type: Mechanical Lug

Colour: Silver

Length (L2): 95.0

A/F: 17.0

Palm Width (W): 25.0

Height (C): 25.0
