SKU: ESP240M1

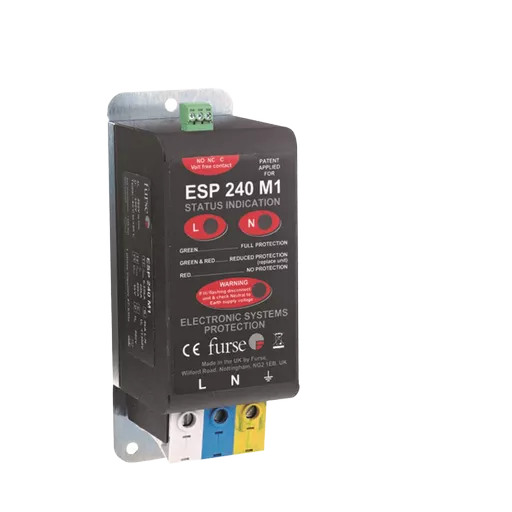

ESP240M1 - Single Phase Full-Mode Protector

SKU: ESP240M1

ESP240M1 - Single Phase Full-Mode Protector

Single Phase, Full Mode 240V
Furse ESP M1 Series are an combined Type 1, 2 and 3 tested protector (to BS EN 61643) for use on mains power distribution systems primarily to protect connected electronic equipment from transient over voltages on the mains supply, e.g. computer, communications or control equipment. For use at boundaries up to LPZ 0 to protect against flashover (typically the main distribution board location, with multiple metallic services entering) through to LPZ 3 to protect sensitive electronic equipment.



Key Features

  • Combined Type 1, 2 & 3 surge protection
  • Tested to BS EN 61643
  • For 240V mains power distribution systems
  • Designed to protect sensitive electronic equipment
  • Ideal for LPZ 0 to LPZ 3 boundaries
  • Prevents damage from lightning or transient events
  • Suitable for installations with multiple metallic service entries
  • Compact and easy to install



Technical Dtails

Short Circuit Withstand Capability: 25 kA, 50 Hz
Frequency Range: 47-63 Hz
Max. Back-up Fuse: 125 A
Leakage Current (to earth): <250 μA
Indicator Circuit Current: <10 mA
Volt Free Contact² : Screw Terminal / Current rating 1 A / Nominal Voltage (RMS) 250 V
Temperature Range: -40°C to + 80°C
Connection Type: Screw Terminal (Max Torque 2.65Nm)
Conductor Size (stranded): 16mm²
Earth Connection: Screw Terminal (Max Torque 2.65Nm)
Volt Free Contact: Connect via screw terminal with conductor up to 2.5mm² (stranded)
Protection: IP20

See Downloads Tab for full Datasheet, Fitting Instructions and DofC

Quick Links

0.6
240 V
280 V
350 V
WBX 3
200-280 V

In stock

1

£419.91 Excl VAT
Unit Price: £419.9100 £503.89 Inc VAT
Unit Price: £503.8920

Qty
Minimum Order Qty 1
Increments 1

Product Wishlist & Compare Placeholder

Delivery available from £8.50

Available to select at checkout.



Quick Links




Single Phase, Full Mode 240V
Furse ESP M1 Series are an combined Type 1, 2 and 3 tested protector (to BS EN 61643) for use on mains power distribution systems primarily to protect connected electronic equipment from transient over voltages on the mains supply, e.g. computer, communications or control equipment. For use at boundaries up to LPZ 0 to protect against flashover (typically the main distribution board location, with multiple metallic services entering) through to LPZ 3 to protect sensitive electronic equipment.



Key Features

  • Combined Type 1, 2 & 3 surge protection
  • Tested to BS EN 61643
  • For 240V mains power distribution systems
  • Designed to protect sensitive electronic equipment
  • Ideal for LPZ 0 to LPZ 3 boundaries
  • Prevents damage from lightning or transient events
  • Suitable for installations with multiple metallic service entries
  • Compact and easy to install



Technical Dtails

Short Circuit Withstand Capability: 25 kA, 50 Hz
Frequency Range: 47-63 Hz
Max. Back-up Fuse: 125 A
Leakage Current (to earth): <250 μA
Indicator Circuit Current: <10 mA
Volt Free Contact² : Screw Terminal / Current rating 1 A / Nominal Voltage (RMS) 250 V
Temperature Range: -40°C to + 80°C
Connection Type: Screw Terminal (Max Torque 2.65Nm)
Conductor Size (stranded): 16mm²
Earth Connection: Screw Terminal (Max Torque 2.65Nm)
Volt Free Contact: Connect via screw terminal with conductor up to 2.5mm² (stranded)
Protection: IP20

See Downloads Tab for full Datasheet, Fitting Instructions and DofC

Information

Weight (Kg): 0.6

Nom Voltage Phase Neutral Uo (RMS): 240 V

Max Voltage Phase Neutral Uc (RMS): 280 V

Short Circuit Withstand Temp Overvolt TOV UT1: 350 V

WBX Enclosure Size: WBX 3

Working Voltage (RMS): 200-280 V

Accessories

You might also need the following;

Explore Furse® Surge Protection Devices (SPDs) Weatherproof Enclosures, ideal for outdoor or space-limited installations. Provides extra protection for equipment where environmental or enclosure constraints demand robust surge safety

Questions & Answers

To assess the need for surge protection, conduct a risk assessment in accordance with BS EN 62305:2006 Part 2.  Furse provides a bespoke risk assessment software package called StrikeRisk to simplify and speed the process.

Furse® SPDs are designed to protect electrical and electronic systems from transient overvoltages caused by lightning strikes, switching operations or parasitic interference. They limit these overvoltages and divert damaging surge currents away from sensitive equipment.

Furse® recommends installing SPDs at the service entrance of a building (Type 1) and at sub-distribution panels (Type 2) to protect against surges from indirect lightning strikes, electrical switching and other sources. Proper installation is essential to safeguard sensitive electronics throughout the facility.
