SES4 - Steel Reinforced Edging Strip - 6.0-8.0mm - 25m

SKU: SES4

SES4 - Steel Reinforced Edging Strip - 6.0-8.0mm - 25m

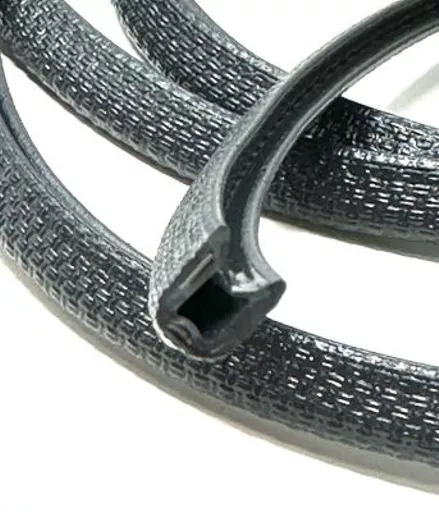

Heavy Duty Steel Reinforced Edging Strip  -  6.0 to 8.0mm Panel Thickness

This heavy duty steel reinforced edging strip gives a clean, professional finish to sharp or exposed panel edges. It clips straight on without adhesive or specialist tools. The steel core grips the panel edge and holds firm.

The PVC outer body encapsulates a row of steel ribs running the length of the strip. These ribs keep the strip flexible enough to follow curves and irregular profiles, while locking onto the panel with a positive grip once pressed into place. The result is a secure, neat edge that stays put even in high vibration environments.

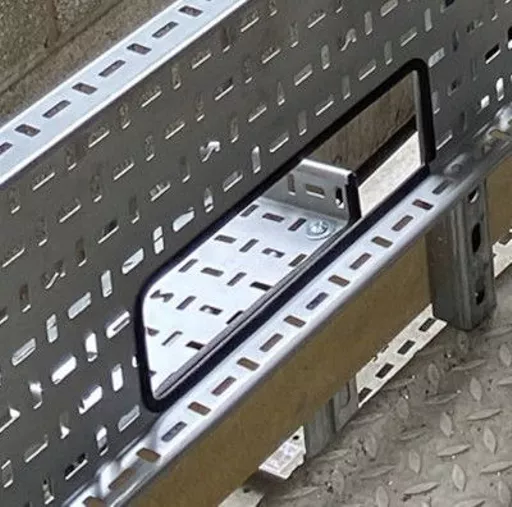

This type of edging strip is a standard product across a wide range of industries. In the electrical sector it’s commonly fitted to consumer unit knockouts to protect incoming cables from sharp pressed steel edges, a simple but important detail that prevents cable damage over time. Electrical enclosure and switchgear panel builders use it across cabinet edges and apertures.

Sheet metal fabricators fit it to chassis, frames and housings wherever a sharp edge needs to be made safe. It’s also widely used in solar panel farm installations and automotive applications where panels need a finished, protected edge.

If you’ve ever seen the black trim around a car door edge or the inside of a van load area, this is the same principle, built for industrial and electrical use.

How To Fit It

Press the strip onto the panel edge. The steel ribs grip and crimp onto the panel, holding the strip securely in place. No adhesive is needed. It can be cut to length on site with standard scissors or snips. The flexible profile means it will follow gentle curves without kinking.

SES1, SES2 and SES3  are supplied in 50m hanks. SES4 and SES5 is supplied in 25m hank. Cut to your required length on site.



Key Features

  • Clean, safe finish to sharp and exposed panel edges
  • Steel ribbed core for a permanent, secure grip
  • Flexible profile conforms to curves and irregular shapes
  • Simple press-fit installation, no adhesive or tools required
  • Self-extinguishing PVC, rated -20°C to 40°C
  • Suitable for panel thickness 6.0-8.0mm



Technical Details

Flammability: Self-extinguishing
Temperature Range: -20°C to 40°C
Material: PVC / Steel
Colour: Black

Quick Links

Heavy Duty Grommet Strip
6.0
8.0
25.0
13.0

In stock

7

£234.03 Excl VAT
Unit Price: £234.0300 £280.84 Inc VAT
Unit Price: £280.8360

Qty
Minimum Order Qty 1
Increments 1
Qty Price per item Savings
3 - 5 £222.33 5%
6 - 9 £215.31 8%
10 + £210.63 10%

Product Wishlist & Compare Placeholder

Delivery available from £8.50

Available to select at checkout.



Quick Links




Heavy Duty Steel Reinforced Edging Strip  -  6.0 to 8.0mm Panel Thickness

This heavy duty steel reinforced edging strip gives a clean, professional finish to sharp or exposed panel edges. It clips straight on without adhesive or specialist tools. The steel core grips the panel edge and holds firm.

The PVC outer body encapsulates a row of steel ribs running the length of the strip. These ribs keep the strip flexible enough to follow curves and irregular profiles, while locking onto the panel with a positive grip once pressed into place. The result is a secure, neat edge that stays put even in high vibration environments.

This type of edging strip is a standard product across a wide range of industries. In the electrical sector it’s commonly fitted to consumer unit knockouts to protect incoming cables from sharp pressed steel edges, a simple but important detail that prevents cable damage over time. Electrical enclosure and switchgear panel builders use it across cabinet edges and apertures.

Sheet metal fabricators fit it to chassis, frames and housings wherever a sharp edge needs to be made safe. It’s also widely used in solar panel farm installations and automotive applications where panels need a finished, protected edge.

If you’ve ever seen the black trim around a car door edge or the inside of a van load area, this is the same principle, built for industrial and electrical use.

How To Fit It

Press the strip onto the panel edge. The steel ribs grip and crimp onto the panel, holding the strip securely in place. No adhesive is needed. It can be cut to length on site with standard scissors or snips. The flexible profile means it will follow gentle curves without kinking.

SES1, SES2 and SES3  are supplied in 50m hanks. SES4 and SES5 is supplied in 25m hank. Cut to your required length on site.



Key Features

  • Clean, safe finish to sharp and exposed panel edges
  • Steel ribbed core for a permanent, secure grip
  • Flexible profile conforms to curves and irregular shapes
  • Simple press-fit installation, no adhesive or tools required
  • Self-extinguishing PVC, rated -20°C to 40°C
  • Suitable for panel thickness 6.0-8.0mm



Technical Details

Flammability: Self-extinguishing
Temperature Range: -20°C to 40°C
Material: PVC / Steel
Colour: Black

Information

Product Type: Heavy Duty Grommet Strip

Min Panel Thickness (C): 6.0

Max Panel Thickness (D): 8.0

Length (mm): 25.0

Width (F): 13.0
