SKU: HSEC12

HSEC12 - Cable End Caps 12mm to 4.0mm OD

SKU: HSEC12

HSEC12 - Cable End Caps 12mm to 4.0mm OD

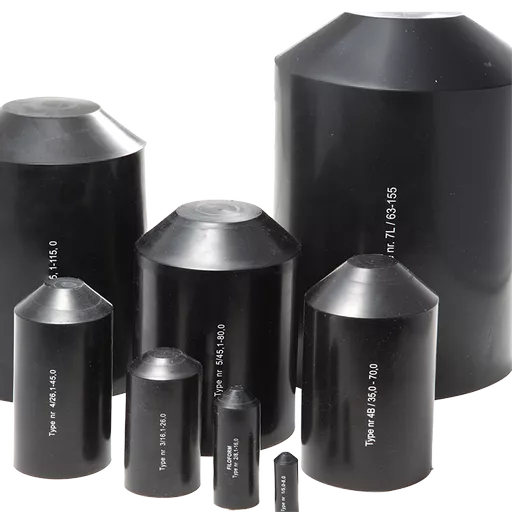

Remora Heatshrink End Caps are manufactured from high-quality, cross-linked polyolefin material and feature an internal coating of premium hot-melt adhesive. When heated, this adhesive flows smoothly to create a permanent, watertight seal that completely blocks out moisture, dirt, dust and corrosive elements. This ensures long-term environmental protection for exposed cable ends during storage, transit, or active deployment.

The rugged, heavy-duty wall construction of these end caps offers exceptional resistance against mechanical abrasion, cutting and impact. Engineered for versatility, they are ideal for use on a wide variety of cable types, including polymeric, paper-insulated and lead-jacketed cables. Additionally, their zero-halogen composition and total immunity to UV light make them exceptionally reliable for both indoor and demanding outdoor applications.



Key Features

  • Good chemical resistance
  • Good solvent resistance
  • Unaffected by UV light
  • 2:1 Shrink Ratio
  • Zero Halogen



Technical Details

Dielectric Strength: 12 kV/mm min
Temperature Range -55°C to 100°C
Shrink Temperature: +120°C
Tensile Strength: 12.0 MPa min
Tensile Strength After Heat Ageing: 68 hours @ 120°C - 10 MP a min
Elongation: 300% min
Elongation After Heat Ageing: 168 hours @ 120°C - 250% min
Material: Cross-linked Polyolefin. Internally coated with Hot Melt Adhesive
Colour: Black


Quick Links

Heatshrink End Caps
40.0
Black
12.0
4.0
2.6

In stock

131

£1.16 Excl VAT
Unit Price: £1.1600 £1.39 Inc VAT
Unit Price: £1.3920

Qty
Minimum Order Qty 1
Increments 1
Qty Price per item Savings
10 - 49 £1.10 5%
50 - 99 £1.07 8%
100 + £1.04 10%

Product Wishlist & Compare Placeholder

Delivery available from £8.50

Available to select at checkout.



Quick Links




Remora Heatshrink End Caps are manufactured from high-quality, cross-linked polyolefin material and feature an internal coating of premium hot-melt adhesive. When heated, this adhesive flows smoothly to create a permanent, watertight seal that completely blocks out moisture, dirt, dust and corrosive elements. This ensures long-term environmental protection for exposed cable ends during storage, transit, or active deployment.

The rugged, heavy-duty wall construction of these end caps offers exceptional resistance against mechanical abrasion, cutting and impact. Engineered for versatility, they are ideal for use on a wide variety of cable types, including polymeric, paper-insulated and lead-jacketed cables. Additionally, their zero-halogen composition and total immunity to UV light make them exceptionally reliable for both indoor and demanding outdoor applications.



Key Features

  • Good chemical resistance
  • Good solvent resistance
  • Unaffected by UV light
  • 2:1 Shrink Ratio
  • Zero Halogen



Technical Details

Dielectric Strength: 12 kV/mm min
Temperature Range -55°C to 100°C
Shrink Temperature: +120°C
Tensile Strength: 12.0 MPa min
Tensile Strength After Heat Ageing: 68 hours @ 120°C - 10 MP a min
Elongation: 300% min
Elongation After Heat Ageing: 168 hours @ 120°C - 250% min
Material: Cross-linked Polyolefin. Internally coated with Hot Melt Adhesive
Colour: Black


Information

Product Type: Heatshrink End Caps

Length: 40.0

Colour: Black

Max Before Shrink: 12.0

Min After Shrink: 4.0

Wall Thickness: 2.6
