SKU: BDM25E-UN

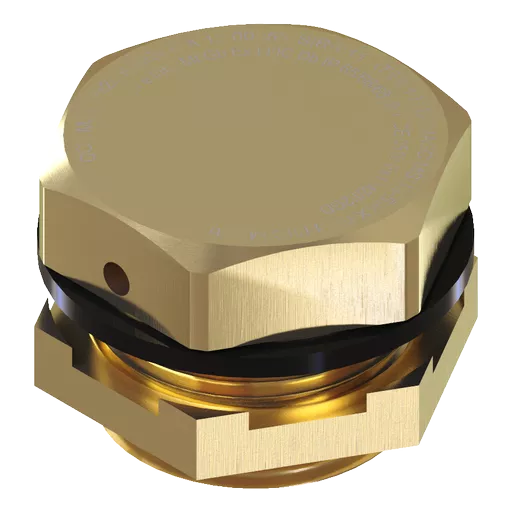

BDM25E-UN - M25 Breather Drain Plug EExe ATEX - Unplated Brass

SKU: BDM25E-UN

BDM25E-UN - M25 Breather Drain Plug EExe ATEX - Unplated Brass

The Exe (Type BDME) Brass Breather Drain provides a reliable method of preventing condensation and moisture build-up in hazardous area enclosures. Manufactured from durable brass, it is designed to drain collected water while allowing controlled air exchange, helping protect sensitive equipment. Supplied with a castellated nut as standard, or with an optional serrated washer and locknut for high-vibration environments, it ensures secure and lasting installation. Fully IECEx and ATEX certified, it meets IEC 60079 and EN 60079 standards, delivering Exe IIC Gb protection levels. A robust, compliant solution for safe, long term enclosure performance.



Key Features

  • Brass construction for strength and corrosion resistance
  • Effectively drains moisture and prevents condensation build up
  • Allows enclosures to breathe while maintaining Ex protection
  • Supplied with castellated nut; optional serrated washer & locknut for vibration areas
  • IECEx & ATEX certified to IEC/EN 60079 standards
  • Available in ISO Metric sizes M20 and M25
  • Protection Levels: Exe IIC Gb / Ex tb IIIC Db




Technical Details

Equipment Protection Levels: IECEx: (BD...E) Exe IIC Gb / Ex tb IIIC Db
ATEX/UKEX: (BD...E) II 2 G D Ex eb IIC Gb / Ex tb IIIC Db
Certification: IECEx CML 16.00021X IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 60079-31
                      ATEX CML 16ATEX1029X EN 60079-0, EN 60079-1, EN 60079-7, EN 60079-31


Quick Links

Brass
36.0
32.0
M25 x 1.5
15.0
Exe

In stock

10

Please contact us for more information.

Contact us

Qty
Minimum Order Qty 1
Increments 1

Product Wishlist & Compare Placeholder

Delivery available from £8.50

Available to select at checkout.



Quick Links




The Exe (Type BDME) Brass Breather Drain provides a reliable method of preventing condensation and moisture build-up in hazardous area enclosures. Manufactured from durable brass, it is designed to drain collected water while allowing controlled air exchange, helping protect sensitive equipment. Supplied with a castellated nut as standard, or with an optional serrated washer and locknut for high-vibration environments, it ensures secure and lasting installation. Fully IECEx and ATEX certified, it meets IEC 60079 and EN 60079 standards, delivering Exe IIC Gb protection levels. A robust, compliant solution for safe, long term enclosure performance.



Key Features

  • Brass construction for strength and corrosion resistance
  • Effectively drains moisture and prevents condensation build up
  • Allows enclosures to breathe while maintaining Ex protection
  • Supplied with castellated nut; optional serrated washer & locknut for vibration areas
  • IECEx & ATEX certified to IEC/EN 60079 standards
  • Available in ISO Metric sizes M20 and M25
  • Protection Levels: Exe IIC Gb / Ex tb IIIC Db




Technical Details

Equipment Protection Levels: IECEx: (BD...E) Exe IIC Gb / Ex tb IIIC Db
ATEX/UKEX: (BD...E) II 2 G D Ex eb IIC Gb / Ex tb IIIC Db
Certification: IECEx CML 16.00021X IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 60079-31
                      ATEX CML 16ATEX1029X EN 60079-0, EN 60079-1, EN 60079-7, EN 60079-31


Information

Colour: Brass

A/C: 36.0

A/F: 32.0

Male Thread: M25 x 1.5

Male Thread Length (L1): 15.0

Protection Level: Exe
