SKU: 065101

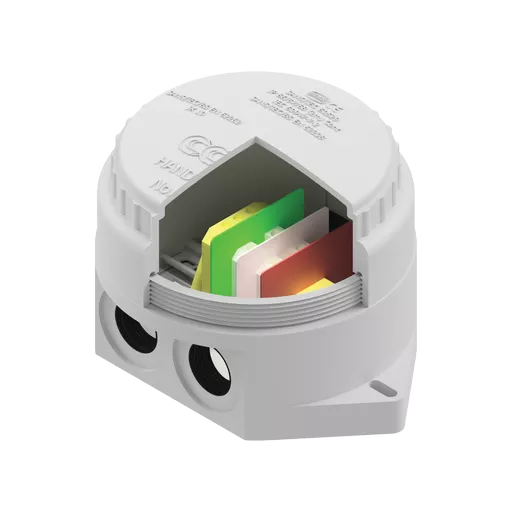

065101 - CCG HANDIFIT IP68 GRP 3 way 'Y' entry Junction Box

SKU: 065101

065101 - CCG HANDIFIT IP68 GRP 3 way 'Y' entry Junction Box

The Handifit Y Three Way Junction Box is a heavy duty electrical enclosure designed for surface mounted applications across industrial, commercial and domestic environments. Available in four sizes, it is suitable for small scale lighting projects through to larger installations that require more space. Constructed from glass reinforced polyester (GRP), the box offers outstanding resistance to impact, corrosion, UV exposure, ensuring long service life indoors or outdoors.

The three-way cable entry makes directional routing simple and efficient, particularly useful for looping circuits in lighting applications. Supplied with M20 stopping plugs, the box achieves IP66/IP68 protection when paired with approved CCG glands, providing a watertight, dustproof seal in demanding conditions. Internal earth continuity, mounting studs for DIN rail terminals, and no need for drilling or tapping add to installation convenience.

A lockable screw-on lid prevents unauthorized tampering, while versatile entry options reduce stock requirements by offering 1, 2, or 3-way configurations.



Key Features

  • 3x M20 entries, supplied complete with stopping plugs
  • No exposed metal parts
  • Dust and water proof to IP68 when used with approved CCG glands
  • One box offers 1, 2 or 3  way versatility for reduced stock holding
  • No drilling or tapping of cable entries required
  • Mounting studs provided for DIN rail terminals
  • Internal earth continuity ring to earth gland entries




Technical Details

Protection: IP66 / IP68
Temperature Range: -60°C to 110°C
Material: Impact, Corrosion and UV Resistant Glass Reinforced Polyester
Colour: Grey

Quick Links

1-M20
58.0
75.0
132.0
77.0
116.0
M20 x 1.5

Out of Stock - Back Order

0

£25.98 Excl VAT
Unit Price: £25.9800 £31.18 Inc VAT
Unit Price: £31.1760

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty
Minimum Order Qty 1
Increments 1

Product Wishlist & Compare Placeholder

Delivery available from £8.50

Available to select at checkout.



Quick Links




The Handifit Y Three Way Junction Box is a heavy duty electrical enclosure designed for surface mounted applications across industrial, commercial and domestic environments. Available in four sizes, it is suitable for small scale lighting projects through to larger installations that require more space. Constructed from glass reinforced polyester (GRP), the box offers outstanding resistance to impact, corrosion, UV exposure, ensuring long service life indoors or outdoors.

The three-way cable entry makes directional routing simple and efficient, particularly useful for looping circuits in lighting applications. Supplied with M20 stopping plugs, the box achieves IP66/IP68 protection when paired with approved CCG glands, providing a watertight, dustproof seal in demanding conditions. Internal earth continuity, mounting studs for DIN rail terminals, and no need for drilling or tapping add to installation convenience.

A lockable screw-on lid prevents unauthorized tampering, while versatile entry options reduce stock requirements by offering 1, 2, or 3-way configurations.



Key Features

  • 3x M20 entries, supplied complete with stopping plugs
  • No exposed metal parts
  • Dust and water proof to IP68 when used with approved CCG glands
  • One box offers 1, 2 or 3  way versatility for reduced stock holding
  • No drilling or tapping of cable entries required
  • Mounting studs provided for DIN rail terminals
  • Internal earth continuity ring to earth gland entries




Technical Details

Protection: IP66 / IP68
Temperature Range: -60°C to 110°C
Material: Impact, Corrosion and UV Resistant Glass Reinforced Polyester
Colour: Grey

Information

Reference Size: 1-M20

(B): 58.0

(C): 75.0

(D): 132.0

(E): 77.0

(F): 116.0

Entry Thread Size: M20 x 1.5
