SKU: FS+HD-110-FIRE

FS+HD-110-FIRE - FS+HD FIRE 110mm Duct Seal - 40200184

SKU: FS+HD-110-FIRE

FS+HD-110-FIRE - FS+HD FIRE 110mm Duct Seal - 40200184

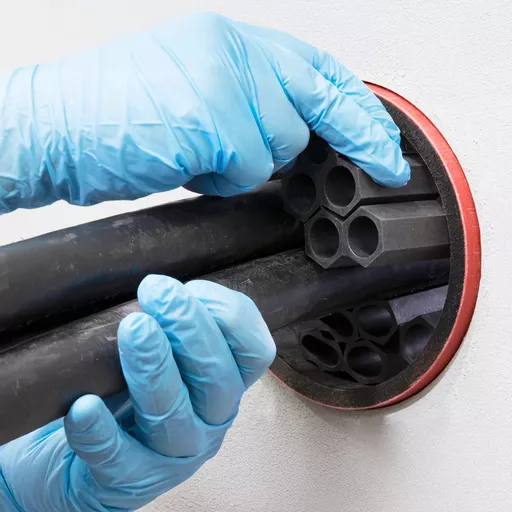

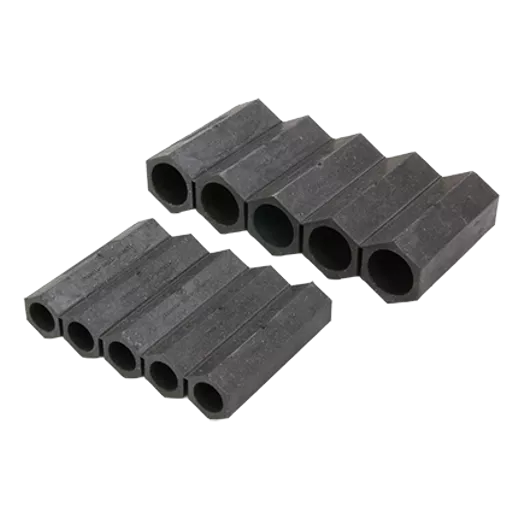

FiloSeal+HD FIRE is a fire-rated duct sealing system engineered for maximum protection in critical cable and pipe installations. Using specially formulated Formite hexagonal blocks, the system creates a strong honeycomb structure that supports cables, maintains separation, and provides a reliable backing for the fire-resistant MD+ sealant.

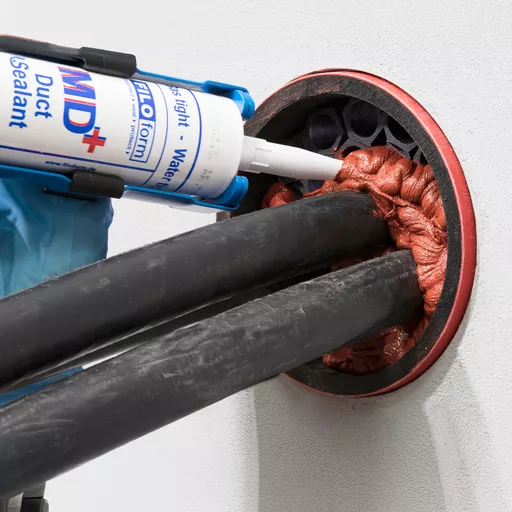

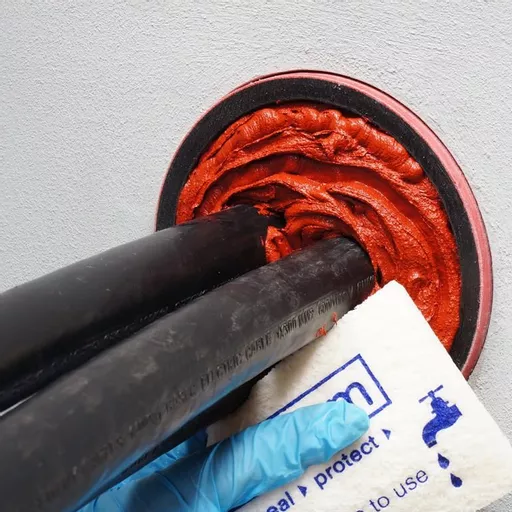

The MD+ compound, applied with a standard skeleton gun, cures into a durable elastomer that seals against fire, gas, and water ingress, while resisting chemicals, rodents, and termites. FiloSeal+HD FIRE is fully tested to international standards, including BS EN1366-3, AS1530.4, BS EN 45545-2 (rail), and London Underground LUL S1085, ensuring compliance in the most demanding environments.

Easy to install and re-enter, the system is suitable for sealing empty ducts or those containing multiple cables or pipes. With over 25 years of operational experience, FiloSeal+HD FIRE provides a proven, engineered solution for safe, durable, and fire-resistant duct sealing.



Key Features

  • Max Duct Size 110mm
  • Up to 4 hours fire resistance in transit frames (single Side)
  • Up to 4 hours fire resistance in ducts
  • Tested to BS EN 1366-3 2009
  • Tested to London Underground - LUL S1085
  • WIMES Compliant (3.02 2013 6.4.3.2b)
  • Flexible, one component, adhesive and sealing compound
  • High levels of Gas and Water tightness
  • Excellent adhesion, applicable to all common building materials
  • Resistant against Water, Alkaline, Chemical agents
  • Resistant to Rats
  • Resistant to Hydrogen Sulphide / Methane and many other Gases (NedLab)
  • Non corrosive
  • Solvent free
  • Non toxic, neutral and almost odourless
  • Complies with ATEX regulations
  • Suitable for any shaped duct / bore hole / opening
  • Seals all known materials, PVC & PE sheathed cables, PILC, (HD) PE pipes
  • Suitable for renovations, can be installed retrospective



Technical Data

Density: 1.2 gr/cm²
Pressure: up to 2 bar
Pulling Force: 100kg
Flow: <2mm ISO 7390
Colour: Red-Brown
Skin Over Time: +-15minutes
Curing Time: 3mm / 24 hours
Hardness: 30 shore A - DIN 53505
Elongation: 100% - DIN53504
Tensile Strength: 0.8 N/mm² - DIN53504
Operating Temp: +5°C to 40°C
Temperature Resistance: -40°C to 120°C

Quick Links

Duct Sealing System
Red/Brown
Max 110.0
Ø 80 Max
Upto 2 bar

In stock

2

£128.13 Excl VAT
Unit Price: £128.1300 £153.76 Inc VAT
Unit Price: £153.7560

Qty
Minimum Order Qty 1
Increments 1
Qty Price per item Savings
3 - 5 £121.72 5%
6 - 9 £117.88 8%
10 + £115.32 10%

Product Wishlist & Compare Placeholder

Delivery available from £8.50

Available to select at checkout.



Quick Links





FiloSeal+HD FIRE is a fire-rated duct sealing system engineered for maximum protection in critical cable and pipe installations. Using specially formulated Formite hexagonal blocks, the system creates a strong honeycomb structure that supports cables, maintains separation, and provides a reliable backing for the fire-resistant MD+ sealant.
The MD+ compound, applied with a standard skeleton gun, cures into a durable elastomer that seals against fire, gas, and water ingress, while resisting chemicals, rodents, and termites. FiloSeal+HD FIRE is fully tested to international standards, including BS EN1366-3, AS1530.4, BS EN 45545-2 (rail), and London Underground LUL S1085, ensuring compliance in the most demanding environments.

Easy to install and re-enter, the system is suitable for sealing empty ducts or those containing multiple cables or pipes. With over 25 years of operational experience, FiloSeal+HD FIRE provides a proven, engineered solution for safe, durable, and fire-resistant duct sealing.



Key Features

  • Max Duct Size 110mm
  • Up to 4 hours fire resistance in transit frames (single Side)
  • Up to 4 hours fire resistance in ducts
  • Tested to BS EN 1366-3 2009
  • Tested to London Underground - LUL S1085
  • WIMES Compliant (3.02 2013 6.4.3.2b)
  • Flexible, one component, adhesive and sealing compound
  • High levels of Gas and Water tightness
  • Excellent adhesion, applicable to all common building materials
  • Resistant against Water, Alkaline, Chemical agents
  • Resistant to Rats
  • Resistant to Hydrogen Sulphide / Methane and many other Gases (NedLab)
  • Non corrosive
  • Solvent free
  • Non toxic, neutral and almost odourless
  • Complies with ATEX regulations
  • Suitable for any shaped duct / bore hole / opening
  • Seals all known materials, PVC & PE sheathed cables, PILC, (HD) PE pipes
  • Suitable for renovations, can be installed retrospective



Technical Data

Density: 1.2 gr/cm²
Pressure: up to 2 bar
Pulling Force: 100kg
Flow: <2mm ISO 7390
Colour: Red-Brown
Skin Over Time: +-15minutes
Curing Time: 3mm / 24 hours
Hardness: 30 shore A - DIN 53505
Elongation: 100% - DIN53504
Tensile Strength: 0.8 N/mm² - DIN53504
Operating Temp: +5°C to 40°C
Temperature Resistance: -40°C to 120°C

Information

Product Type: Duct Sealing System

Colour: Red/Brown

Max Duct Diameter mm: Max 110.0

Max Cable Diameter in Duct: Ø 80 Max

Pressure Resistance: Upto 2 bar
