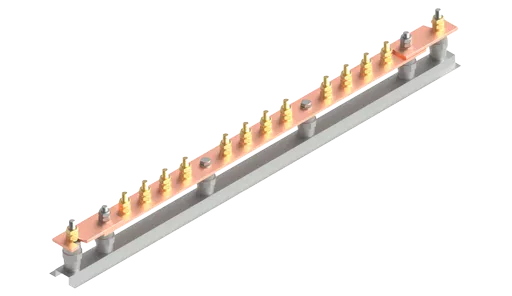

EBDC12 - 12 Way Double Disconnecting Earth Bar

SKU: EBDC12

EBDC12 - 12 Way Double Disconnecting Earth Bar

Remora Earth Bars with Double Link provide a dependable and practical earthing point in electrical systems. The double disconnecting link allows for easy isolation during testing and maintenance, making it a trusted choice in critical power environments. Manufactured from high-conductivity 50x6mm hard drawn copper, the bar complies with IEC 62305 and ensures reliable performance. Brass stud assemblies are spaced at 50mm centres to accommodate larger sector lugs without interference. The bar is mounted on a pre-drilled galvanised mild steel channel base for fast and secure installation. Remora Earth Bars are also available in custom configurations including various lengths, with & without disconnection links, stud sizes, multiple bars, tin plated or stainless steel options.

Earth Bar Illustration

50 x 6mm Copper Bar HDHC Copper Bar
M10 x 36mm Insulator Glass Reinforced Polyester
64 x 15mm Base Galvanised Steel
M10 Hex Bolt/Nut/Washer Brass
M10 Hex Bolt/Nut/Washer BZP Mild Steel

Key Features

Double link allows easy isolation for testing
50x6mm high conductivity hard drawn copper
Earth points spaced at 50mm centres
Complies with IEC 62305 earthing standards
Supplied with brass stud assemblies
Mounted on pre-drilled mild steel galvanised base
Ideal for LV systems, switchgear, and panels
Tinned & Custom Configurations available on request

Technical Details

Bar Material: C101 99.9% Copper BS EN 13601:2013 / BS EN 12167:2011
Fasteners: M10x 40mm Brass CZ121 / BS 3643-1:2007
Base: Galvanised Steel Channel
Compliance: IEC 62305 / BS EN 62561-1:2012 / BS EN 7430
Copper Bar Current Rating: 500 Amp
