SKU: PGPCWA25LS

PGPCWA25LS - M25 CW Ali ArmaKit Low Smoke Kit

SKU: PGPCWA25LS

PGPCWA25LS - M25 CW Ali ArmaKit Low Smoke Kit

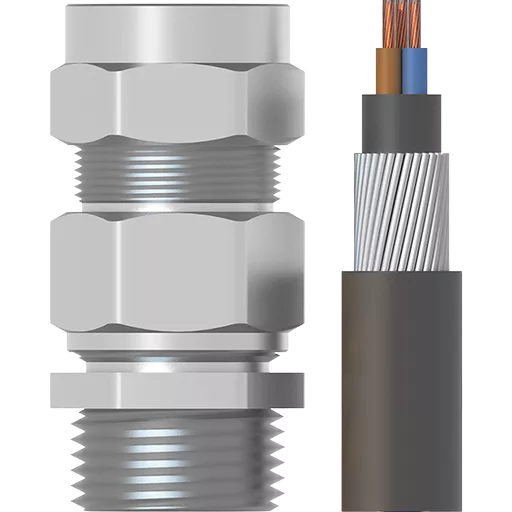

The ArmaKit®  CW Ali Cable Gland Kit is a sturdy three-part aluminium gland designed for safe, clean terminations of Aluminium Wire Armoured (AWA) PVC and Low Smoke (LSF) cables. Made for indoor or outdoor use, this gland combines mechanical clamping with a tough environmental seal that keeps out water jets and dust.

An internal polychloroprene seal protects cable entry points while the separate cone and ring prevent twisting of the armour wires as the gland is tightened. An internal aluminium washer holds the seal steady under torque so you get a secure, leak-free fit every time.

Each CW ALi gland is precision machined from high grade aluminium for lightweight strength and corrosion resistance, making it ideal for industrial sites, control panels or exposed runs where an aluminium finish matches the cable type.

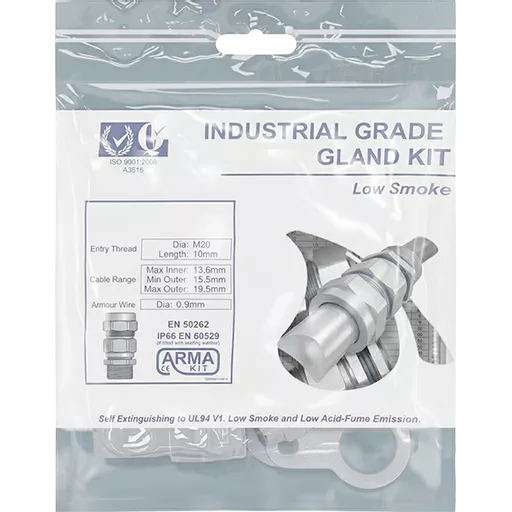

Every kit includes the gland, locknut, aluminium earth tag and low smoke shroud to deliver a safe, professional install.




Key Features

  • For indoor or outdoor use
  • Three-part aluminium gland for AWA cables
  • Polychloroprene seal blocks water jets and dust
  • Cone and ring stop armour twist during fitting
  • Aluminium washer keeps seal stable under torque
  • M20ss-M32 2 glands, 2 locknuts, 2 earth tags, 2 LS shrouds
  • M40-M75 1 gland, 1 locknut, 1 aluminium earth tag, 1 LS shroud




Technical Details

Standards: EN 60529, EN 50262
Protection: IP54 IP66 (If fitted with sealing washer)
Temperature Range: -20°C to 80°C
Material (Gland): Aluminium
Material (Seal): Polychloroprene
Material (Shroud): LS Polyvinyl-chloride

Quick Links

1.25
Silver
M25 x 1.5
12.0
19.8
20.3
27.5
56.0
42.2
38.0
5.0

In stock

226

£32.21 Excl VAT
Unit Price: £32.2100 £38.65 Inc VAT
Unit Price: £38.6520

Qty
Minimum Order Qty 1
Increments 1

Product Wishlist & Compare Placeholder

Delivery available from £8.50

Available to select at checkout.



Quick Links




The ArmaKit®  CW Ali Cable Gland Kit is a sturdy three-part aluminium gland designed for safe, clean terminations of Aluminium Wire Armoured (AWA) PVC and Low Smoke (LSF) cables. Made for indoor or outdoor use, this gland combines mechanical clamping with a tough environmental seal that keeps out water jets and dust.

An internal polychloroprene seal protects cable entry points while the separate cone and ring prevent twisting of the armour wires as the gland is tightened. An internal aluminium washer holds the seal steady under torque so you get a secure, leak-free fit every time.

Each CW ALi gland is precision machined from high grade aluminium for lightweight strength and corrosion resistance, making it ideal for industrial sites, control panels or exposed runs where an aluminium finish matches the cable type.

Every kit includes the gland, locknut, aluminium earth tag and low smoke shroud to deliver a safe, professional install.




Key Features

  • For indoor or outdoor use
  • Three-part aluminium gland for AWA cables
  • Polychloroprene seal blocks water jets and dust
  • Cone and ring stop armour twist during fitting
  • Aluminium washer keeps seal stable under torque
  • M20ss-M32 2 glands, 2 locknuts, 2 earth tags, 2 LS shrouds
  • M40-M75 1 gland, 1 locknut, 1 aluminium earth tag, 1 LS shroud




Technical Details

Standards: EN 60529, EN 50262
Protection: IP54 IP66 (If fitted with sealing washer)
Temperature Range: -20°C to 80°C
Material (Gland): Aluminium
Material (Seal): Polychloroprene
Material (Shroud): LS Polyvinyl-chloride

Information

Armour Dia: 1.25

Colour: Silver

Entry Thread Size: M25 x 1.5

Length (L1): 12.0

Bedding OD Max (A): 19.8

Cable OD Range Min (B): 20.3

Cable OD Range Max (B): 27.5

Gland Length (L2): 56.0

A/C: 42.2

A/F: 38.0

Box Qty: 5.0

Accessories

You might also need the following;

Explore Remora’s extensive range of cable gland accessories, including locknuts, earth tags, sealing washers, serrated lock washers, shrouds, earth locknuts, reducers, adaptors, stopping plugs, and breather drain plugs. Everything needed for secure, compliant cable gland installations.

Questions & Answers

Single and double compression cable glands differ in their sealing and clamping mechanisms:

Single Compression Glands: These glands provide compression around the outer sheath of the cable, offering basic sealing and strain relief. They are suitable for indoor/outdoor applications where environmental conditions are controlled.

Double Compression Glands: These glands provide compression at both the outer sheath and the inner bedding layer of the cable. This dual compression offers enhanced sealing and strain relief, making them ideal for outdoor or hazardous environments where additional protection is required.

Yes - Specific types of cable glands are designed for use in hazardous area environments. These glands are constructed to prevent the ingress of flammable gases or dust and are often certified to standards such as ATEX or IECEx, ensuring safety in explosive atmospheres. See CCG Hazardous Area Glands for our full range.

When installing Cable Glands using plain holes and locknuts, the recommended clearance of +0.2 mm above the nominal thread diameter. For example, an M20 gland should be mounted in a 20.2 mm diameter hole. The maximum recommended clearance is +0.7 mm. This ensures a secure fit while allowing easy installation.
