SKU: 052406A-HT

052406A-HT - M63 FLP-TR Ex Group 1 - High Temp Gland

SKU: 052406A-HT

052406A-HT - M63 FLP-TR Ex Group 1 - High Temp Gland

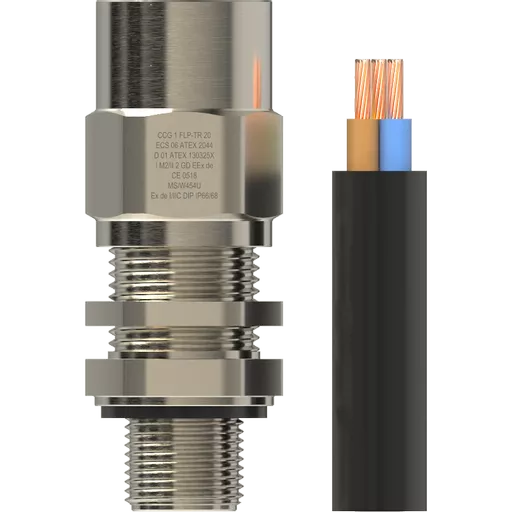

The CCG FLP-TR High Temp Compression Gland is built for flame-proof cable terminations in demanding industrial and underground mining sites. Designed for unarmoured elastomeric and plastic cables, it delivers a secure seal to block gas or flame migration. Engineered for Group I underground mines, Group II, III, Zone 1, 2, 21 and 22 hazardous areas.
Precision made from high quality extruded brass, Marine Grade Electroless Nickel Plated, and fitted with extreme temperature seals from -60°C to 160°C. This gland resists impact, moisture and harsh atmospheres, protecting cables where flame containment and safety matter most.



Key Features

  • Fitted with extreme temperature seals from -60°C to 160°C
  • For Group I underground mines, Group II, III, Zone 1, 2, 21 and 22 hazardous areas
  • No loose parts that can get lost
  • Fitted with a specially formulated captive elastomeric seal provides Built-in Safety™
  • Precision manufactured from extruded brass, Marine Grade Electroless Nickel Plated™
  • Supplied complete with IP sealing washer



Technical Details

Equipment Protection Levels:
IECEx/INMETRO:                Ex db I Mb / Ex eb I Mb / Ex db IIC Gb / Ex eb IIC Gb / Ex nR IIC Gc / Ex ta IIIC Da
ATEX/UKEX:                        I M2, II 2/3G 1D, Ex db I Mb / Ex eb I Mb / Ex db IIC Gb / Ex eb IIC Gb, Ex nR IIC Gc,
                                            Ex ta  IIIC Da

Conformance:               Standard:                                       Certification:
IEC/BS EN                     IEC/BS EN 62444, 6121               CML 14CA364
IECEx                             IEC 60079 Part 0, 1, 7, 15, 31      IECEx TSA 22.0011X
ATEX                              EN 60079 Part 0, 1, 7, 31             CML 16ATEX1001X
                                       EN 60079 Part 0, 15                     CML 16ATEX4002X
UKEX                             BS EN 60079 Part 0, 1, 7, 31        CML 21UKEX1011X
                                      BS EN 60079 Part 0, 15                 CML 21UKEX4006X
Deluge Protection:        DTS-01
Marine:            ABS IEC/EN 60079 Part 0, 1, 7, 15, 31 and IEC 60529
                         DNV IEC/EN 60079 Part 0, 1, 7, 15, 31 and IEC 60529
Protection:     IP66 / IP68 (100m - Parallel)  IEC 60529
Temperature Range: Standard -60°C to 160°C
Material (Gland):  Brass, Marine Grade Electroless Nickel Plated™
Material (Seal):   Standard Thermoset Elastomer or Extreme Temperature Seals

Quick Links

FLP-TR High-Temp
6 - 63
Sliver
M63 x 1.5
50.0
56.0
15.0
111.0
96.0
85.0
98

0

Please contact us for more information.

Contact us

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty
Minimum Order Qty 1
Increments 1

Product Wishlist & Compare Placeholder

Delivery available from £8.50

Available to select at checkout.



Quick Links





The CCG FLP-TR High Temp Compression Gland is built for flame-proof cable terminations in demanding industrial and underground mining sites. Designed for unarmoured elastomeric and plastic cables, it delivers a secure seal to block gas or flame migration. Engineered for Group I underground mines, Group II, III, Zone 1, 2, 21 and 22 hazardous areas.
Precision made from high quality extruded brass, Marine Grade Electroless Nickel Plated, and fitted with extreme temperature seals from -60°C to 160°C. This gland resists impact, moisture and harsh atmospheres, protecting cables where flame containment and safety matter most.



Key Features

  • Fitted with extreme temperature seals from -60°C to 160°C
  • For Group I underground mines, Group II, III, Zone 1, 2, 21 and 22 hazardous areas
  • No loose parts that can get lost
  • Fitted with a specially formulated captive elastomeric seal provides Built-in Safety™
  • Precision manufactured from extruded brass, Marine Grade Electroless Nickel Plated™
  • Supplied complete with IP sealing washer



Technical Details

Equipment Protection Levels:
IECEx/INMETRO:                Ex db I Mb / Ex eb I Mb / Ex db IIC Gb / Ex eb IIC Gb / Ex nR IIC Gc / Ex ta IIIC Da
ATEX/UKEX:                        I M2, II 2/3G 1D, Ex db I Mb / Ex eb I Mb / Ex db IIC Gb / Ex eb IIC Gb, Ex nR IIC Gc,
                                            Ex ta  IIIC Da

Conformance:               Standard:                                       Certification:
IEC/BS EN                     IEC/BS EN 62444, 6121               CML 14CA364
IECEx                             IEC 60079 Part 0, 1, 7, 15, 31      IECEx TSA 22.0011X
ATEX                              EN 60079 Part 0, 1, 7, 31             CML 16ATEX1001X
                                       EN 60079 Part 0, 15                     CML 16ATEX4002X
UKEX                             BS EN 60079 Part 0, 1, 7, 31        CML 21UKEX1011X
                                      BS EN 60079 Part 0, 15                 CML 21UKEX4006X
Deluge Protection:        DTS-01
Marine:            ABS IEC/EN 60079 Part 0, 1, 7, 15, 31 and IEC 60529
                         DNV IEC/EN 60079 Part 0, 1, 7, 15, 31 and IEC 60529
Protection:     IP66 / IP68 (100m - Parallel)  IEC 60529
Temperature Range: Standard -60°C to 160°C
Material (Gland):  Brass, Marine Grade Electroless Nickel Plated™
Material (Seal):   Standard Thermoset Elastomer or Extreme Temperature Seals

Information

Product Type: FLP-TR High-Temp

Size: 6 - 63

Colour: Sliver

Entry Thread Size: M63 x 1.5

Cable OD Range Min (B): 50.0

Cable OD Range Max (B): 56.0

Entry Thread Length (L1): 15.0

Gland Length (L2): 111.0

A/C: 96.0

A/F: 85.0

Torque (Nm): 98

Accessories

You might also need the following;

Explore Remora’s extensive range of cable gland accessories, including locknuts, earth tags, sealing washers, serrated lock washers, shrouds, earth locknuts, reducers, adaptors, stopping plugs, and breather drain plugs. Everything needed for secure, compliant cable gland installations.

Questions & Answers

Single and double compression cable glands differ in their sealing and clamping mechanisms:

Single Compression Glands: These glands provide compression around the outer sheath of the cable, offering basic sealing and strain relief. They are suitable for indoor/outdoor applications where environmental conditions are controlled.

Double Compression Glands: These glands provide compression at both the outer sheath and the inner bedding layer of the cable. This dual compression offers enhanced sealing and strain relief, making them ideal for outdoor or hazardous environments where additional protection is required.

Yes - Specific types of cable glands are designed for use in hazardous area environments. These glands are constructed to prevent the ingress of flammable gases or dust and are often certified to standards such as ATEX or IECEx, ensuring safety in explosive atmospheres. See CCG Hazardous Area Glands for our full range.

When installing Cable Glands using plain holes and locknuts, the recommended clearance of +0.2 mm above the nominal thread diameter. For example, an M20 gland should be mounted in a 20.2 mm diameter hole. The maximum recommended clearance is +0.7 mm. This ensures a secure fit while allowing easy installation.
