GPCX0 - CCG M20s CX IP68 Nickel Plated Gland Kit x 2

SKU: GPCX0

GPCX0 - CCG M20s CX IP68 Nickel Plated Gland Kit x 2

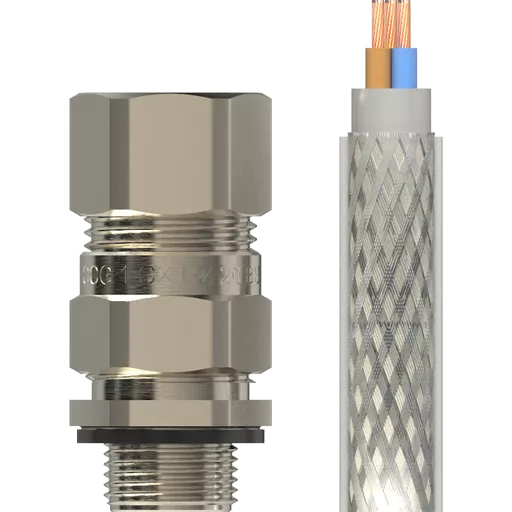

The CCG CX/Z  Gland Kit is high-performance solution for terminating flexible wire braid or tape armoured cables in outdoor or exposed environments. Precision-manufactured by CCG, this gland is built for safety, speed, and long-term reliability in industrial and commercial installations.
Ideal for use with flexible wire braid or tape armoured cables, the CX/Z gland clamps the braid and grips the cable outer sheath while maintaining ingress protection.  A full 360 degree contact ensures continuous EMC performance, making it a trusted choice for control panels, automation gear and sensitive data cabling.
Each kit up to M32 includes two glands, two locknuts, two earth tags and two PVC shrouds. M40 and larger come as single kits with locknut, earth tag and shroud.
Constructed from corrosion-resistant Nickel Plated extruded Brass, the CCG CX/Z Gland delivers a secure, moisture resistant seal that keeps dust, dirt, and liquids out. It is easy to install and ensures a firm hold that prevents loosening under vibration.

Key Features

  • Designed for flexible wire braided or tape armoured cables
  • Suitable for braided cables needing EMC shielding
  • IP66 rated with sealing washer
  • Maintains electrical earth continuity through braid
  • Freely rotating captive cone, providing an armour clamp and earth bond without twisting the braid
  • Two-part handling, no loose parts
  • Suitable for outdoor and industrial environments
  • M20ss-M32 2 glands, 2 locknuts, 2 earth tags, 2 sealing washers, 2 PVC shrouds
  • M40-M90 1 gland, 1 locknut, 1 earth tag, 1 sealing washer, 1 PVC shroud



Technical Details

Design Standards: BS 6121 Part 1 IEC/BS EN 62444 SANS 62444 SANS 1213
Protection: IP66 (Parallel) IEC 60529
Marine: ABS IEC 60529, IEC 62444, DNV IEC 60529, BS 6121, IEC 62444
EMC Compatible: EN 55011, + A1, EN55022
Temperature Range: -65°C to 120°C
Material (Gland): Brass (Nickel Plated) BS 2874 / EN 12164
Material (Seal): Thermoset Elastomer



Quick Links

CX Kits
0 - 20s
Silver
M20 x 1.5
12.0
11.5
16.0
10.0
65.0
27.0
24.0
0.20
0.8
35

Out of Stock - Back Order

0

£13.92 Excl VAT
Unit Price: £13.9200 £16.70 Inc VAT
Unit Price: £16.7040

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty
Minimum Order Qty 1
Increments 1

Product Wishlist & Compare Placeholder

Delivery available from £8.50

Available to select at checkout.



Quick Links






The CCG CX/Z  Gland Kit is high-performance solution for terminating flexible wire braid or tape armoured cables in outdoor or exposed environments. Precision-manufactured by CCG, this gland is built for safety, speed, and long-term reliability in industrial and commercial installations.
Ideal for use with flexible wire braid or tape armoured cables, the CX/Z gland clamps the braid and grips the cable outer sheath while maintaining ingress protection.  A full 360 degree contact ensures continuous EMC performance, making it a trusted choice for control panels, automation gear and sensitive data cabling.
Each kit up to M32 includes two glands, two locknuts, two earth tags and two PVC shrouds. M40 and larger come as single kits with locknut, earth tag and shroud.
Constructed from corrosion-resistant Nickel Plated extruded Brass, the CCG CX/Z Gland delivers a secure, moisture resistant seal that keeps dust, dirt, and liquids out. It is easy to install and ensures a firm hold that prevents loosening under vibration.

Key Features

  • Designed for flexible wire braided or tape armoured cables
  • Suitable for braided cables needing EMC shielding
  • IP66 rated with sealing washer
  • Maintains electrical earth continuity through braid
  • Freely rotating captive cone, providing an armour clamp and earth bond without twisting the braid
  • Two-part handling, no loose parts
  • Suitable for outdoor and industrial environments
  • M20ss-M32 2 glands, 2 locknuts, 2 earth tags, 2 sealing washers, 2 PVC shrouds
  • M40-M90 1 gland, 1 locknut, 1 earth tag, 1 sealing washer, 1 PVC shroud



Technical Details

Design Standards: BS 6121 Part 1 IEC/BS EN 62444 SANS 62444 SANS 1213
Protection: IP66 (Parallel) IEC 60529
Marine: ABS IEC 60529, IEC 62444, DNV IEC 60529, BS 6121, IEC 62444
EMC Compatible: EN 55011, + A1, EN55022
Temperature Range: -65°C to 120°C
Material (Gland): Brass (Nickel Plated) BS 2874 / EN 12164
Material (Seal): Thermoset Elastomer



Information

Product Type: CX Kits

Size: 0 - 20s

Colour: Silver

Entry Thread Size: M20 x 1.5

Bedding OD Max (A): 12.0

Cable OD Range Min (B): 11.5

Cable OD Range Max (B): 16.0

Entry Thread Length (L1): 10.0

Gland Length (L2): 65.0

A/C: 27.0

A/F: 24.0

Armour Dia Min (F): 0.20

Armour Dia Max (F): 0.8

Torque (Nm): 35

Accessories

You might also need the following;

Explore Remora’s extensive range of cable gland accessories, including locknuts, earth tags, sealing washers, serrated lock washers, shrouds, earth locknuts, reducers, adaptors, stopping plugs, and breather drain plugs. Everything needed for secure, compliant cable gland installations.

Questions & Answers

Single and double compression cable glands differ in their sealing and clamping mechanisms:

Single Compression Glands: These glands provide compression around the outer sheath of the cable, offering basic sealing and strain relief. They are suitable for indoor/outdoor applications where environmental conditions are controlled.

Double Compression Glands: These glands provide compression at both the outer sheath and the inner bedding layer of the cable. This dual compression offers enhanced sealing and strain relief, making them ideal for outdoor or hazardous environments where additional protection is required.

Yes - Specific types of cable glands are designed for use in hazardous area environments. These glands are constructed to prevent the ingress of flammable gases or dust and are often certified to standards such as ATEX or IECEx, ensuring safety in explosive atmospheres. See CCG Hazardous Area Glands for our full range.

When installing Cable Glands using plain holes and locknuts, the recommended clearance of +0.2 mm above the nominal thread diameter. For example, an M20 gland should be mounted in a 20.2 mm diameter hole. The maximum recommended clearance is +0.7 mm. This ensures a secure fit while allowing easy installation.
