SKU: 0512-0

0512-0 - CCG M20s CW IP66 Nickel Plated Gland

SKU: 0512-0

0512-0 - CCG M20s CW IP66 Nickel Plated Gland

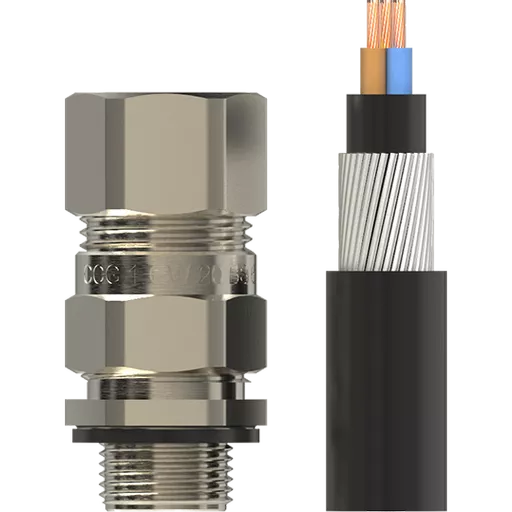

The CCG CW Cable Gland is built for safe, durable terminations of steel wire armoured (SWA) cables in outdoor or exposed environments. This heavy duty brass gland features two-piece handling, no loose parts, and a freely rotating captive cone providing an armour clamp and earth bond without twisting the armouring.

It delivers reliable mechanical retention while maintaining superior earth continuity between the cable armour and the gland body. Engineered to withstand harsh conditions, the CW gland is rated up to IP66 when installed with the supplied entry thread sealing washer, protecting against water, dust, and external elements.

The advanced design separates the armour clamping and sealing functions, preventing cable damage and simplifying installation. With a wide clamping range and standard metric threads, it fits a variety of cable sizes and entry types, ensuring a secure fit for industrial, marine, and commercial power applications.




Key Features

  • Designed for SWA cable terminations in outdoor or exposed environments
  • IP66 rated environmental sealing
  • Maintains electrical earth continuity through armour
  • Freely rotating captive cone, providing an armour clamp and earth bond without twisting the armouring
  • Two-part handling, no loose parts
  • Patented disconnect armour clamp system for ease of inspection
  • Supplied complete with IP sealing washer




Technical Details

Design Standards: BS 6121 Part 1 IEC/BS EN 62444 SANS 62444 SANS 1213
Protection: IP66 (Parallel) IEC 60529
Marine: ABS IEC 60529, IEC 62444 DNV IEC 60529 BS 6121 IEC 62444
Temperature Range: -65°C to 120°C
Material (Gland): Brass (Nickel Plated) BS 2874 / EN 12164
Material (Seal): Thermoset Elastomer



Quick Links

CW Glands
0 - 20s
Silver
M20 x 1.5
12.0
11.5
16.0
10.0
53.0
27.0
24.0
0.90
1.3
35.0

In stock

157

£5.90 Excl VAT
Unit Price: £5.9000 £7.08 Inc VAT
Unit Price: £7.0800

Qty
Minimum Order Qty 1
Increments 1

Product Wishlist & Compare Placeholder

Delivery available from £8.50

Available to select at checkout.



Quick Links




The CCG CW Cable Gland is built for safe, durable terminations of steel wire armoured (SWA) cables in outdoor or exposed environments. This heavy duty brass gland features two-piece handling, no loose parts, and a freely rotating captive cone providing an armour clamp and earth bond without twisting the armouring.

It delivers reliable mechanical retention while maintaining superior earth continuity between the cable armour and the gland body. Engineered to withstand harsh conditions, the CW gland is rated up to IP66 when installed with the supplied entry thread sealing washer, protecting against water, dust, and external elements.

The advanced design separates the armour clamping and sealing functions, preventing cable damage and simplifying installation. With a wide clamping range and standard metric threads, it fits a variety of cable sizes and entry types, ensuring a secure fit for industrial, marine, and commercial power applications.




Key Features

  • Designed for SWA cable terminations in outdoor or exposed environments
  • IP66 rated environmental sealing
  • Maintains electrical earth continuity through armour
  • Freely rotating captive cone, providing an armour clamp and earth bond without twisting the armouring
  • Two-part handling, no loose parts
  • Patented disconnect armour clamp system for ease of inspection
  • Supplied complete with IP sealing washer




Technical Details

Design Standards: BS 6121 Part 1 IEC/BS EN 62444 SANS 62444 SANS 1213
Protection: IP66 (Parallel) IEC 60529
Marine: ABS IEC 60529, IEC 62444 DNV IEC 60529 BS 6121 IEC 62444
Temperature Range: -65°C to 120°C
Material (Gland): Brass (Nickel Plated) BS 2874 / EN 12164
Material (Seal): Thermoset Elastomer



Information

Product Type: CW Glands

Size: 0 - 20s

Colour: Silver

Entry Thread Size: M20 x 1.5

Bedding OD Max (A): 12.0

Cable OD Range Min (B): 11.5

Cable OD Range Max (B): 16.0

Entry Thread Length (L1): 10.0

Gland Length (L2): 53.0

A/C: 27.0

A/F: 24.0

Armour Dia Min (F): 0.90

Armour Dia Max (F): 1.3

Torque (Nm): 35.0

Accessories

You might also need the following;

Explore Remora’s extensive range of cable gland accessories, including locknuts, earth tags, sealing washers, serrated lock washers, shrouds, earth locknuts, reducers, adaptors, stopping plugs, and breather drain plugs. Everything needed for secure, compliant cable gland installations.

Questions & Answers

Single and double compression cable glands differ in their sealing and clamping mechanisms:

Single Compression Glands: These glands provide compression around the outer sheath of the cable, offering basic sealing and strain relief. They are suitable for indoor/outdoor applications where environmental conditions are controlled.

Double Compression Glands: These glands provide compression at both the outer sheath and the inner bedding layer of the cable. This dual compression offers enhanced sealing and strain relief, making them ideal for outdoor or hazardous environments where additional protection is required.

Yes - Specific types of cable glands are designed for use in hazardous area environments. These glands are constructed to prevent the ingress of flammable gases or dust and are often certified to standards such as ATEX or IECEx, ensuring safety in explosive atmospheres. See CCG Hazardous Area Glands for our full range.

When installing Cable Glands using plain holes and locknuts, the recommended clearance of +0.2 mm above the nominal thread diameter. For example, an M20 gland should be mounted in a 20.2 mm diameter hole. The maximum recommended clearance is +0.7 mm. This ensures a secure fit while allowing easy installation.
