SKU: GripLoc-BR-LT-PG16

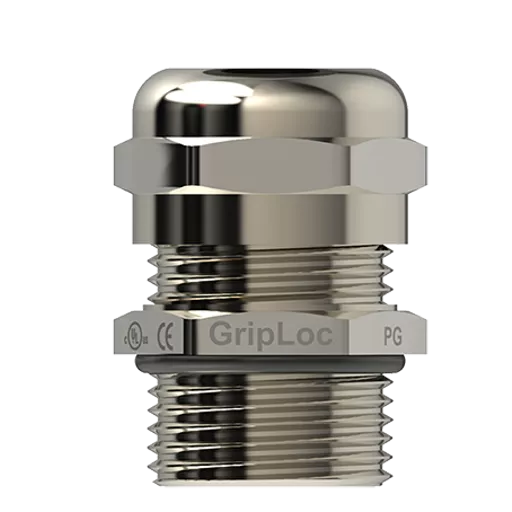

GRIPLOC-BR-LT-PG16 - PG16 IP68 Long Thread Brass Cable Gland Cables 10.0-14.0mm O

SKU: GripLoc-BR-LT-PG16

GRIPLOC-BR-LT-PG16 - PG16 IP68 Long Thread Brass Cable Gland Cables 10.0-14.0mm O

GripLoc® Brass PG Long Thread Cable Glands are built for dependable cable termination across a wide range of domestic, industrial and OEM applications. From factory machinery and HVAC systems to measurement and control equipment, these long thread PG glands provide a secure seal on unarmoured and flexible cables. They’re especially useful where deeper enclosures or thicker gland plates require extended reach.

Each gland is precision-machined from high-strength extrusion brass and finished with corrosion-resistant electro-nickel plating. The result is a tough, long-lasting component that performs in harsh environments, both indoors and out.

These glands are designed for full compatibility with the GripLoc® Multi-Hole Seal range. Ideal for routing multiple cables through a single entry point, they help keep panel layouts tidy while maintaining strong ingress protection.

The GripLoc® Seal system offers dependable sealing against dust and moisture, plus solid vibration resistance and reliable cable retention. This long thread PG version gives installers more flexibility in deeper panels or where PG threading is required.




Key Features

  • Long thread body for deep enclosures and thick panel walls
  • PG thread for non-metric and legacy applications
  • Nickel-plated brass for corrosion resistance
  • Machined from durable extrusion brass with electro-nickel plating
  • Designed for use with GripLoc® Multi-Hole Seals
  • IP69K / IP68 rated environmental and mechanical sealing
  • Strong cable retention and vibration resistance
  • Suitable for indoor and outdoor use
  • Supplied complete with 'O' ring seal





Technical Details

Standards: EN 50262
Protection: IP69K / IP68 10 bar (150 PSI)
Temperature Range: -40°C to 100°C (static) (120° Instantaneous)
Material (Gland): Nickel-Plated Brass
Material (Seal): NBR Seal and EPDM O-Ring

Quick Links

GripLoc PG LT Brass
Silver
PG16 x 1.41
10.0
14.0
10.0
34.0
24.0

Out of Stock - Back Order

0

£5.93 Excl VAT
Unit Price: £5.9300 £7.12 Inc VAT
Unit Price: £7.1160

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty
Minimum Order Qty 1
Increments 1

Product Wishlist & Compare Placeholder

Delivery available from £8.50

Available to select at checkout.



Quick Links




GripLoc® Brass PG Long Thread Cable Glands are built for dependable cable termination across a wide range of domestic, industrial and OEM applications. From factory machinery and HVAC systems to measurement and control equipment, these long thread PG glands provide a secure seal on unarmoured and flexible cables. They’re especially useful where deeper enclosures or thicker gland plates require extended reach.

Each gland is precision-machined from high-strength extrusion brass and finished with corrosion-resistant electro-nickel plating. The result is a tough, long-lasting component that performs in harsh environments, both indoors and out.

These glands are designed for full compatibility with the GripLoc® Multi-Hole Seal range. Ideal for routing multiple cables through a single entry point, they help keep panel layouts tidy while maintaining strong ingress protection.

The GripLoc® Seal system offers dependable sealing against dust and moisture, plus solid vibration resistance and reliable cable retention. This long thread PG version gives installers more flexibility in deeper panels or where PG threading is required.




Key Features

  • Long thread body for deep enclosures and thick panel walls
  • PG thread for non-metric and legacy applications
  • Nickel-plated brass for corrosion resistance
  • Machined from durable extrusion brass with electro-nickel plating
  • Designed for use with GripLoc® Multi-Hole Seals
  • IP69K / IP68 rated environmental and mechanical sealing
  • Strong cable retention and vibration resistance
  • Suitable for indoor and outdoor use
  • Supplied complete with 'O' ring seal





Technical Details

Standards: EN 50262
Protection: IP69K / IP68 10 bar (150 PSI)
Temperature Range: -40°C to 100°C (static) (120° Instantaneous)
Material (Gland): Nickel-Plated Brass
Material (Seal): NBR Seal and EPDM O-Ring

Information

Product Type: GripLoc PG LT Brass

Colour: Silver

Entry Thread Size: PG16 x 1.41

Cable OD Range Min (B): 10.0

Cable OD Range Max (B): 14.0

Entry Thread Length (L1): 10.0

Gland Length (L2): 34.0

A/F: 24.0

Accessories

You might also need the following;

Explore Remora’s extensive range of cable gland accessories, including locknuts, earth tags, sealing washers, serrated lock washers, shrouds, earth locknuts, reducers, adaptors, stopping plugs, and breather drain plugs. Everything needed for secure, compliant cable gland installations.

Questions & Answers

Single and double compression cable glands differ in their sealing and clamping mechanisms:

Single Compression Glands: These glands provide compression around the outer sheath of the cable, offering basic sealing and strain relief. They are suitable for indoor/outdoor applications where environmental conditions are controlled.

Double Compression Glands: These glands provide compression at both the outer sheath and the inner bedding layer of the cable. This dual compression offers enhanced sealing and strain relief, making them ideal for outdoor or hazardous environments where additional protection is required.

Yes - Specific types of cable glands are designed for use in hazardous area environments. These glands are constructed to prevent the ingress of flammable gases or dust and are often certified to standards such as ATEX or IECEx, ensuring safety in explosive atmospheres. See CCG Hazardous Area Glands for our full range.

When installing Cable Glands using plain holes and locknuts, the recommended clearance of +0.2 mm above the nominal thread diameter. For example, an M20 gland should be mounted in a 20.2 mm diameter hole. The maximum recommended clearance is +0.7 mm. This ensures a secure fit while allowing easy installation.
