SKU: EI03

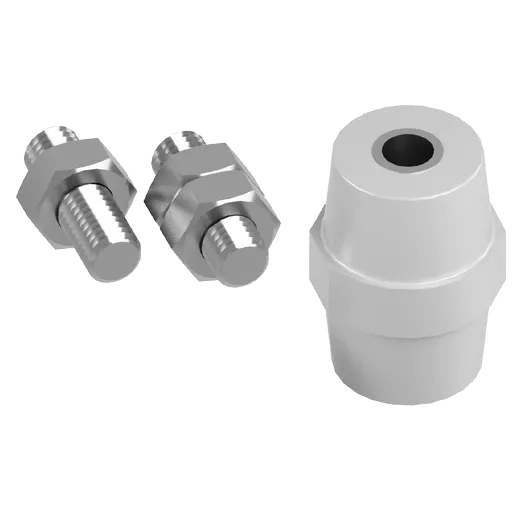

EI03 - Earth Insulator M10 - c/w two studs and three locking nuts

SKU: EI03

EI03 - Earth Insulator M10 - c/w two studs and three locking nuts

Remora Barrel Insulators are designed to safely support and insulate live conductors in electrical systems. Manufactured from tough Glass Reinforced Polyester (GRP), they deliver excellent mechanical strength and electrical insulation. Used as structural supports or spacers in switchgear, panels, or cable systems, they help maintain alignment and system integrity. The EI03 model is supplied complete with two threaded studs and three hex locknuts, simplifying installation and securing the insulator in place without extra components. These GRP barrel insulators are suited for low and medium voltage environments where durability, insulation, and safety are essential. Available in M10 as standard and further sizes and threaded insert on application.



Key Features

  • EI03 includes 2 threaded studs and 3 hex locknuts
  • Made from high-strength Glass Reinforced Polyester
  • Excellent electrical insulation properties
  • High mechanical load-bearing capacity
  • Acts as support, spacer, or stiffening element
  • Ideal for busbars, cables, and live conductors



Technical Details

Temperature Max: 200°C (static)
Electrical Dielectric Strength: 10kV/mm
Material: Glass Reinforced Polyester
Colour: Grey



Quick Links

Grey
36.0
M10
14.5
3-5 Kgf/mm²
51.0
10 KV/mm

Out of Stock - Back Order

0

£6.31 Excl VAT
Unit Price: £6.3100 £7.57 Inc VAT
Unit Price: £7.5720

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty
Minimum Order Qty 1
Increments 1

Product Wishlist & Compare Placeholder

Delivery available from £8.50

Available to select at checkout.



Quick Links




Remora Barrel Insulators are designed to safely support and insulate live conductors in electrical systems. Manufactured from tough Glass Reinforced Polyester (GRP), they deliver excellent mechanical strength and electrical insulation. Used as structural supports or spacers in switchgear, panels, or cable systems, they help maintain alignment and system integrity. The EI03 model is supplied complete with two threaded studs and three hex locknuts, simplifying installation and securing the insulator in place without extra components. These GRP barrel insulators are suited for low and medium voltage environments where durability, insulation, and safety are essential. Available in M10 as standard and further sizes and threaded insert on application.



Key Features

  • EI03 includes 2 threaded studs and 3 hex locknuts
  • Made from high-strength Glass Reinforced Polyester
  • Excellent electrical insulation properties
  • High mechanical load-bearing capacity
  • Acts as support, spacer, or stiffening element
  • Ideal for busbars, cables, and live conductors



Technical Details

Temperature Max: 200°C (static)
Electrical Dielectric Strength: 10kV/mm
Material: Glass Reinforced Polyester
Colour: Grey



Information

Colour: Grey

A/F: 36.0

Female Thread: M10

Female Thread Depth (F): 14.5

Tensile Strength: 3-5 Kgf/mm²

Height (D): 51.0

Electrical Dielectric Strength: 10 KV/mm
