SKU: DOME-NP-M63

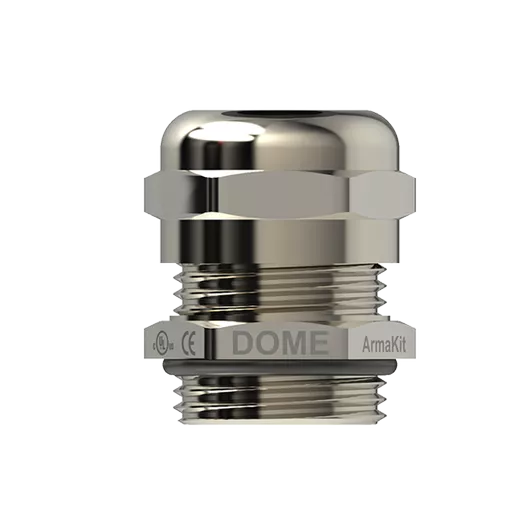

DOME-NP-M63 - M63 IP68 Metric Brass Cable Gland Cables 37.0-44.0mm OD

SKU: DOME-NP-M63

DOME-NP-M63 - M63 IP68 Metric Brass Cable Gland Cables 37.0-44.0mm OD

The ArmaKit® Metallic Cable Gland is built for safe, secure termination of unarmoured / flex cables in industrial and commercial installations. Designed for use in power distribution, control panels, and heavy-duty outdoor enclosures, this gland delivers durable performance you can rely on.

Made from high-quality nickel-plated brass, the ArmaKit® gland offers strong mechanical retention and excellent corrosion resistance. It’s available in a range of thread types and sizes, including metric and PG, and supports both indoor and outdoor applications with robust ingress protection.

Designed to include an effective wide sealing range, reliable continuity, and a smooth, clean installation process. The gland also provides sealing at both cable entry and outer sheath, reducing the risk of water or dust ingress and maintaining long-term cable integrity.



Key Features

  • Nickel-plated brass for corrosion resistance
  • IP68 protection against water and dust
  • Suitable for indoor and outdoor use
  • Available in multiple thread types and sizes
  • Supplied Complete with  'O' Ring Seal & Locknuts



Technical Details

Standards: EN 50262
Protection: IP68 3-5 bar
Temperature Range: -40°C to 100°C (static)
Material (Gland): Nickel-Plated Brass
Material (Seal): NBR Seal and EPDM O-Ring

Quick Links

Silver (Metallic)
M63 x 1.5
37.0
44.0
14.0
52.0
64.0 / 68.0

In stock

71

£29.89 Excl VAT
Unit Price: £29.8900 £35.87 Inc VAT
Unit Price: £35.8680

Qty
Minimum Order Qty 1
Increments 1

Product Wishlist & Compare Placeholder

Delivery available from £8.50

Available to select at checkout.



Quick Links




The ArmaKit® Metallic Cable Gland is built for safe, secure termination of unarmoured / flex cables in industrial and commercial installations. Designed for use in power distribution, control panels, and heavy-duty outdoor enclosures, this gland delivers durable performance you can rely on.

Made from high-quality nickel-plated brass, the ArmaKit® gland offers strong mechanical retention and excellent corrosion resistance. It’s available in a range of thread types and sizes, including metric and PG, and supports both indoor and outdoor applications with robust ingress protection.

Designed to include an effective wide sealing range, reliable continuity, and a smooth, clean installation process. The gland also provides sealing at both cable entry and outer sheath, reducing the risk of water or dust ingress and maintaining long-term cable integrity.



Key Features

  • Nickel-plated brass for corrosion resistance
  • IP68 protection against water and dust
  • Suitable for indoor and outdoor use
  • Available in multiple thread types and sizes
  • Supplied Complete with  'O' Ring Seal & Locknuts



Technical Details

Standards: EN 50262
Protection: IP68 3-5 bar
Temperature Range: -40°C to 100°C (static)
Material (Gland): Nickel-Plated Brass
Material (Seal): NBR Seal and EPDM O-Ring

Information

Colour: Silver (Metallic)

Entry Thread Size: M63 x 1.5

Cable OD Range Min (B): 37.0

Cable OD Range Max (B): 44.0

Entry Thread Length (L1): 14.0

Gland Length (L2): 52.0

A/F: 64.0 / 68.0

Accessories

You might also need the following;

Explore Remora’s extensive range of cable gland accessories, including locknuts, earth tags, sealing washers, serrated lock washers, shrouds, earth locknuts, reducers, adaptors, stopping plugs, and breather drain plugs. Everything needed for secure, compliant cable gland installations.

Questions & Answers

Single and double compression cable glands differ in their sealing and clamping mechanisms:

Single Compression Glands: These glands provide compression around the outer sheath of the cable, offering basic sealing and strain relief. They are suitable for indoor/outdoor applications where environmental conditions are controlled.

Double Compression Glands: These glands provide compression at both the outer sheath and the inner bedding layer of the cable. This dual compression offers enhanced sealing and strain relief, making them ideal for outdoor or hazardous environments where additional protection is required.

Yes - Specific types of cable glands are designed for use in hazardous area environments. These glands are constructed to prevent the ingress of flammable gases or dust and are often certified to standards such as ATEX or IECEx, ensuring safety in explosive atmospheres. See CCG Hazardous Area Glands for our full range.

When installing Cable Glands using plain holes and locknuts, the recommended clearance of +0.2 mm above the nominal thread diameter. For example, an M20 gland should be mounted in a 20.2 mm diameter hole. The maximum recommended clearance is +0.7 mm. This ensures a secure fit while allowing easy installation.
