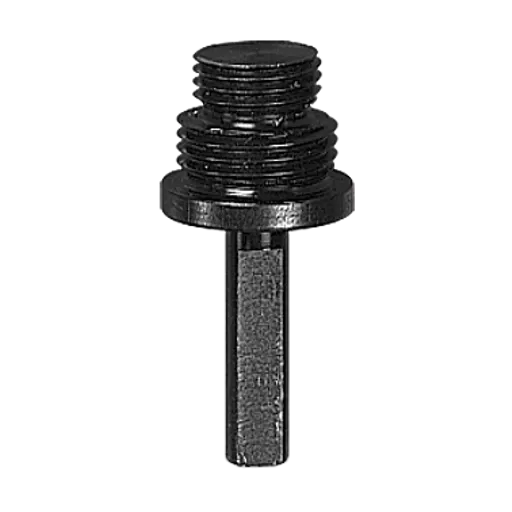

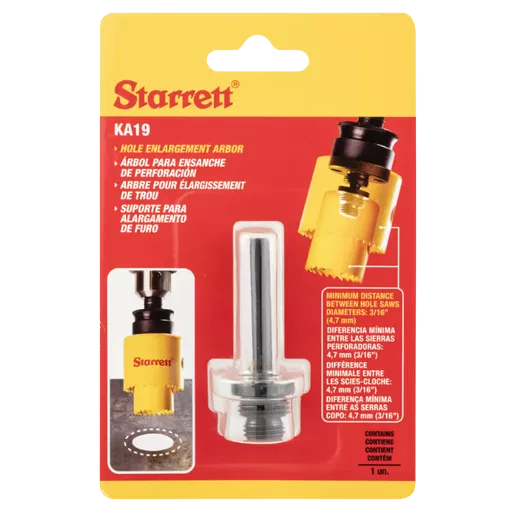

Fast Cut Hole Saw Enlargement Arbor

SKU: KA19

Fast Cut Hole Saw Enlargement Arbor

Starrett KA19 Hole Saw Enlarger - Purpose-built arbor attachment designed to enlarge existing holes cleanly and accurately without drifting or miss-cutting. By replacing the standard pilot drill on your arbor, the KA19 allows you to attach a hole saw that matches the diameter of your existing opening to serve as a steady guide for a larger outer hole saw.

Featuring a heavy-duty design with dual-thread compatibility, this arbor system ensures precise concentric alignment when resizing pre-drilled holes in various substrate materials. It eliminates the need for makeshift backing plates or timber plugs, streamlining modification work and delivering clean, professional results with minimal effort.

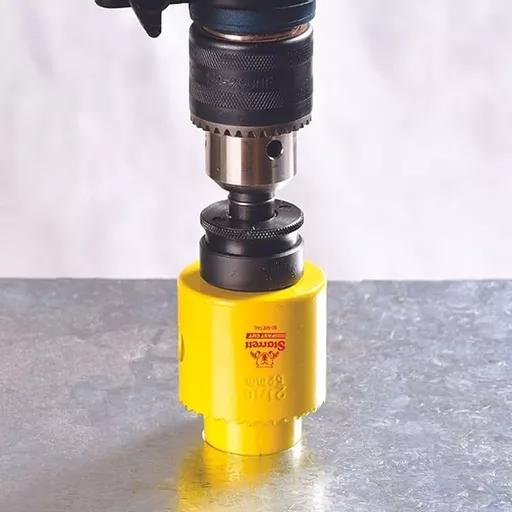

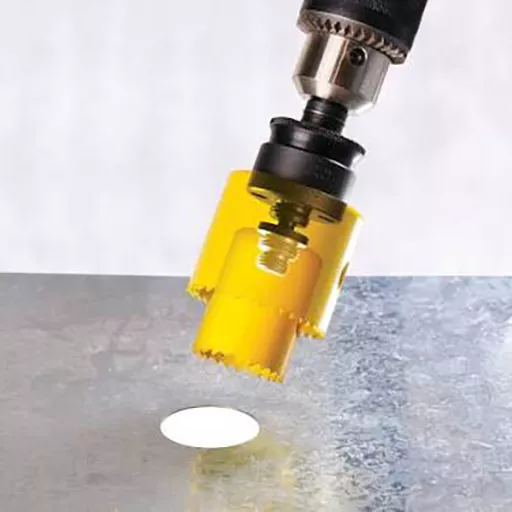

Constructed for high strength and repeated trade use, the Starrett KA19 provides a secure connection between both hole saws during rotation. The inner guide saw fits snugly into the existing aperture to absorb lateral movement, allowing the larger outer saw to cut a smooth, perfectly centred larger opening without damaging surrounding surfaces.

PLEASE NOTE: HOLE SAWS ARE SOLD AND SUPPLIED SEPARATELY

Key Features

Drifting Prevention Using an inner hole saw as a guide to prevent pilot drift and miss-cutting when enlarging openings
Dual Thread Compatibility by accommodating hole saws with both 1/2"-20 and 5/8"-18 thread sizes
Requires a minimum hole enlargement of just 14mm and can create new holes from 32mm to 210mm
Direct Pilot Replacement : Fits directly into the chuck and replaces the arbor & pilot drill
Designed to work seamlessly with FCH, DCH, TCT Multi-Purpose, CT, and Diamond hole saw ranges

Technical Details

Applications: Resizing pre-drilled holes using FCH, DCH, TCT Multi-Purpose, CT, and Diamond hole saws
Thread Sizes: 1/2" x 20 & 5/8" x 18
Min Hole Enlargement: 14mm
Max Hole Enlargement: 210mm
Material: High-Speed Steel

Quick Links

See Full Range

Enlarger: 32 to 210mm

Hole Size: 14 to 30mm

For Use With: FCH Starrett Fast Cut Hole Saws

Out of Stock - Back Order

£9.47 Excl VAT
Unit Price: £9.4700 £11.36 Inc VAT
Unit Price: £11.3640

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Minimum Order Qty	1
Increments	1

Product Wishlist & Compare Placeholder

Delivery available from £8.50

Available to select at checkout.

Quick Links

Description

PLEASE NOTE: HOLE SAWS ARE SOLD AND SUPPLIED SEPARATELY

Key Features

Drifting Prevention Using an inner hole saw as a guide to prevent pilot drift and miss-cutting when enlarging openings
Dual Thread Compatibility by accommodating hole saws with both 1/2"-20 and 5/8"-18 thread sizes
Requires a minimum hole enlargement of just 14mm and can create new holes from 32mm to 210mm
Direct Pilot Replacement : Fits directly into the chuck and replaces the arbor & pilot drill
Designed to work seamlessly with FCH, DCH, TCT Multi-Purpose, CT, and Diamond hole saw ranges
